Strata Small Dinse Connectors

Be the first to review this product
Free shipping on orders over $50
Strata /
SKU: CP1625

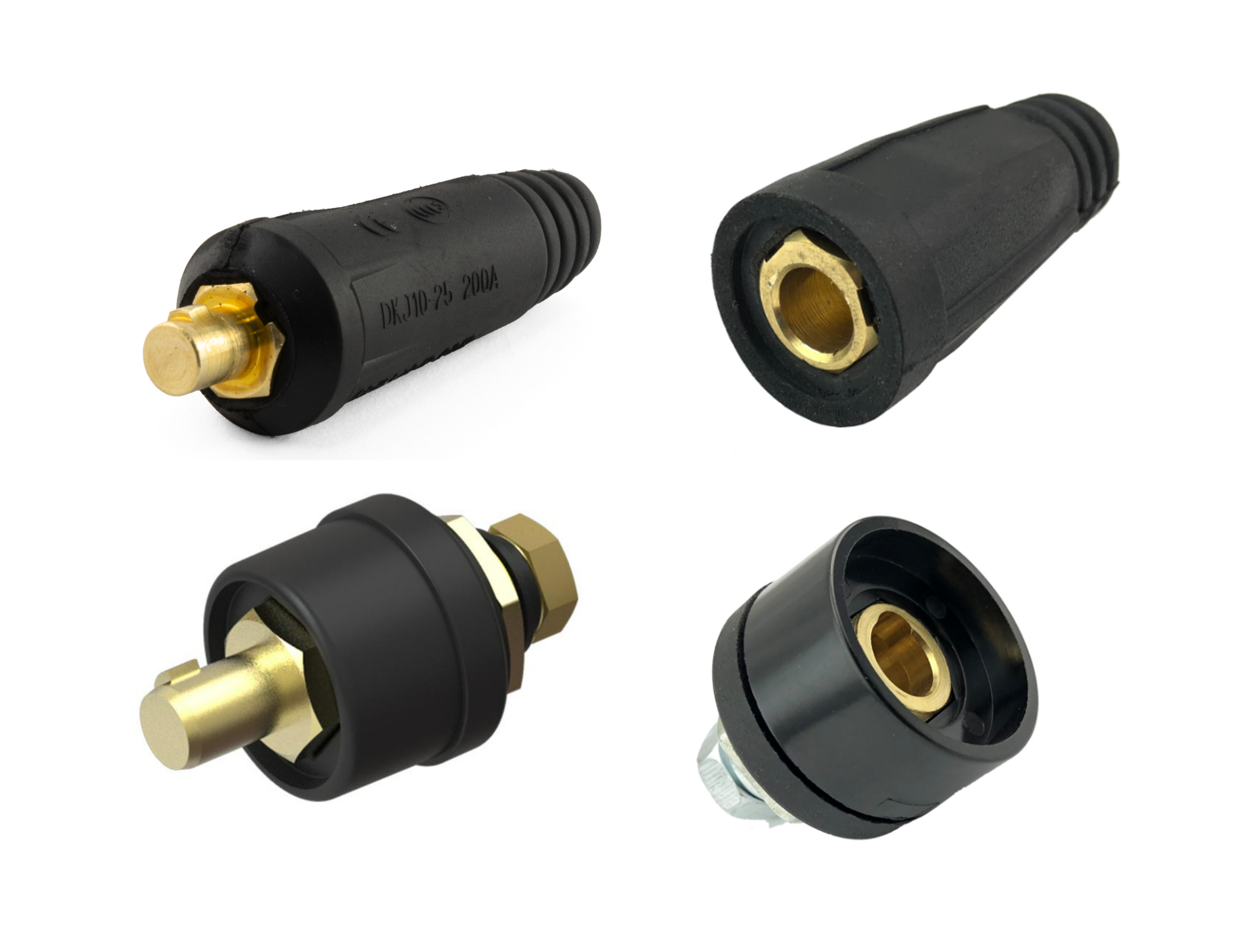

Available as a Cable Plug, Cable Socket, Panel Plug & Panel Socket. The small size (9mm pin) is best suited for 10-25mm² welding cable. Dinse connectors are also known as Tex or Texas connectors.
*
$ 7 .00 Excl GST
$ 8.05 Incl GST

or 4 interest-free payments of $2.01 with

afterpay-icon afterpay-icon
Overview

Product Overview

Strata Small Dinse Connectors

Key Features

- Twist-Lock type connectors

- Pin size of plug is 9mm (0.35")

- Suitable for up to 200 Amps

Purchasing Options

Product SKUProduct NameOther Product NamesUseful Information

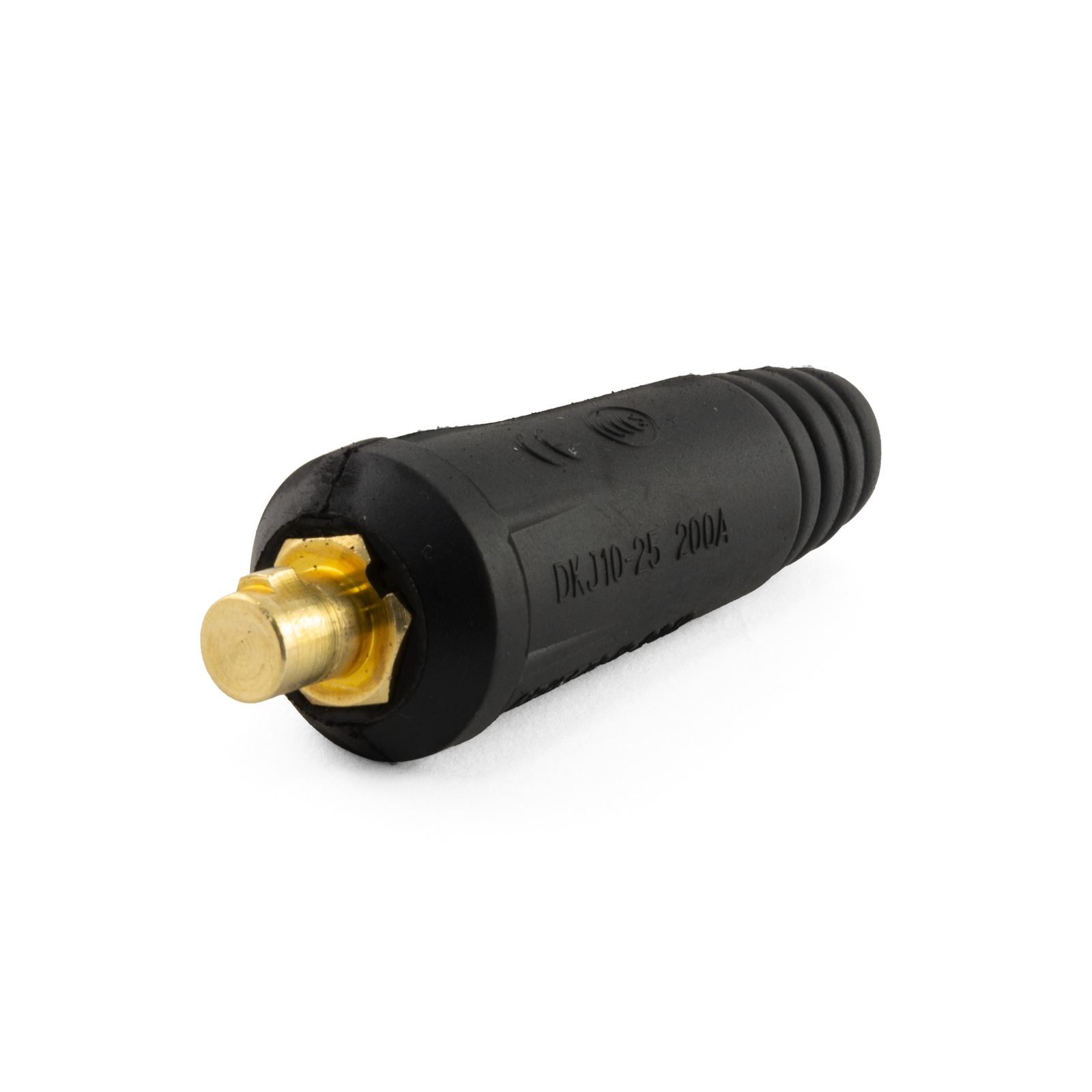

CP1625 CP1025 Cable PlugDinse Plug / Tex PlugBest suited to 10-25mm² Cable*

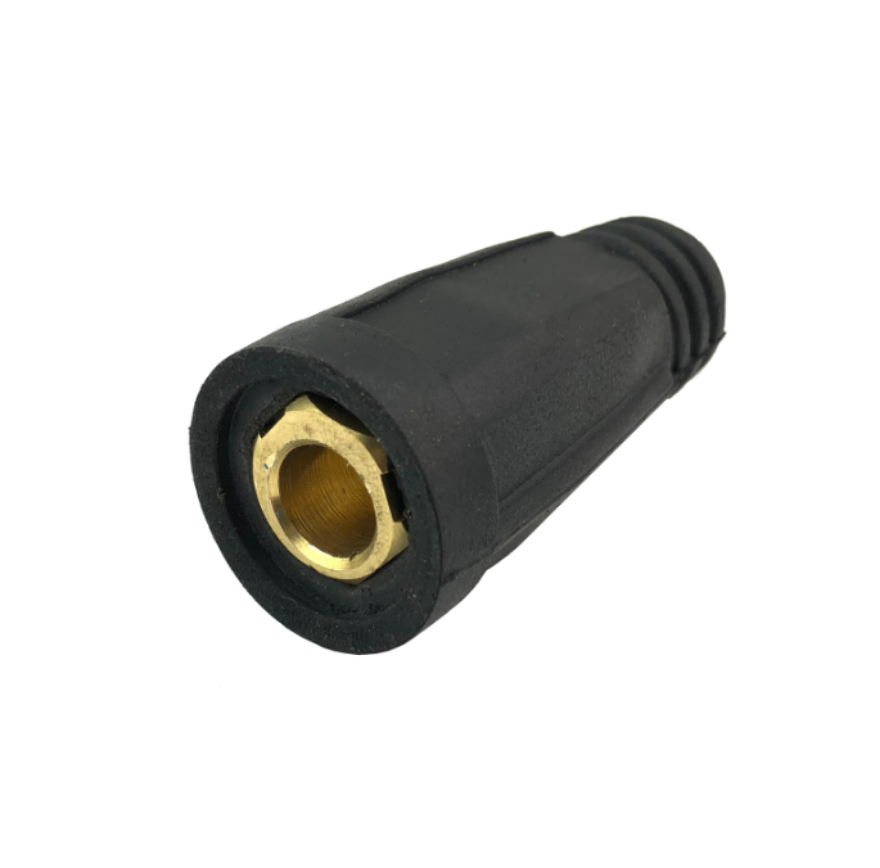

CS1025 CS1025 Cable SocketDinse Socket/ Tex SocketBest suited to 10-25mm² Cable*

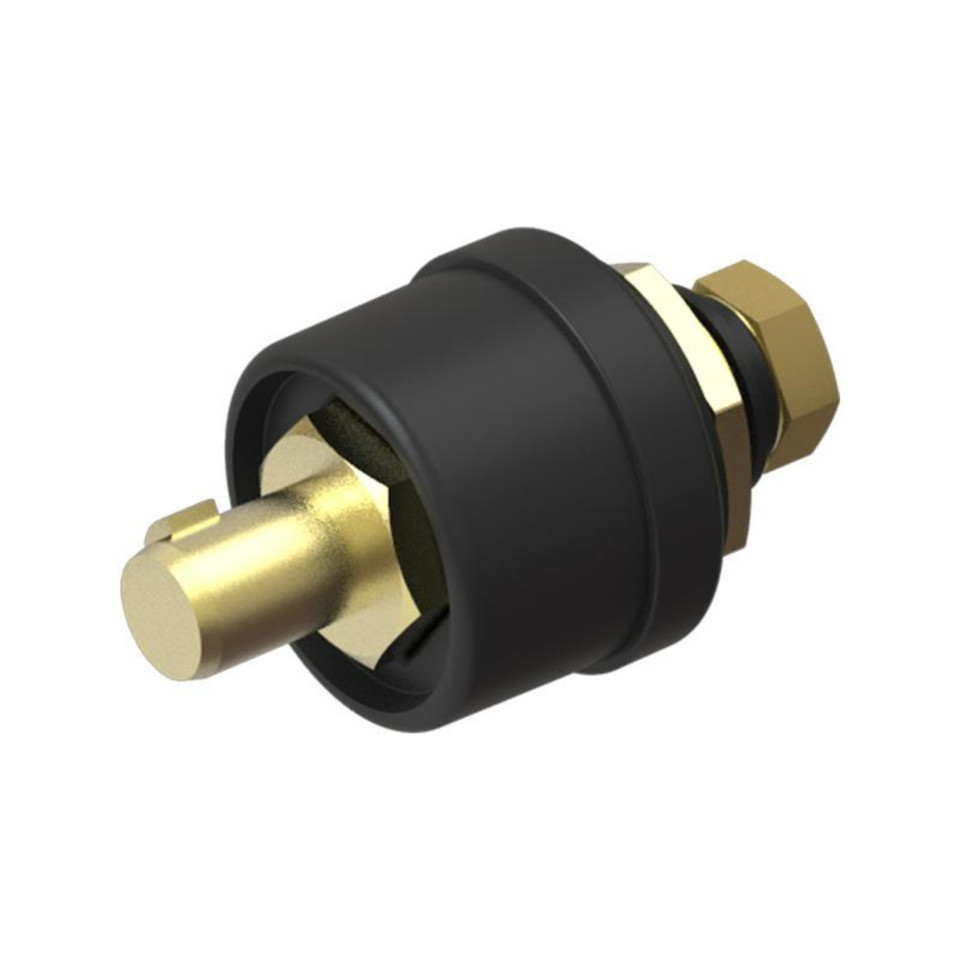

204839 PP1025 Panel Plug M8 bolt at rear. 9mm pin plug at front

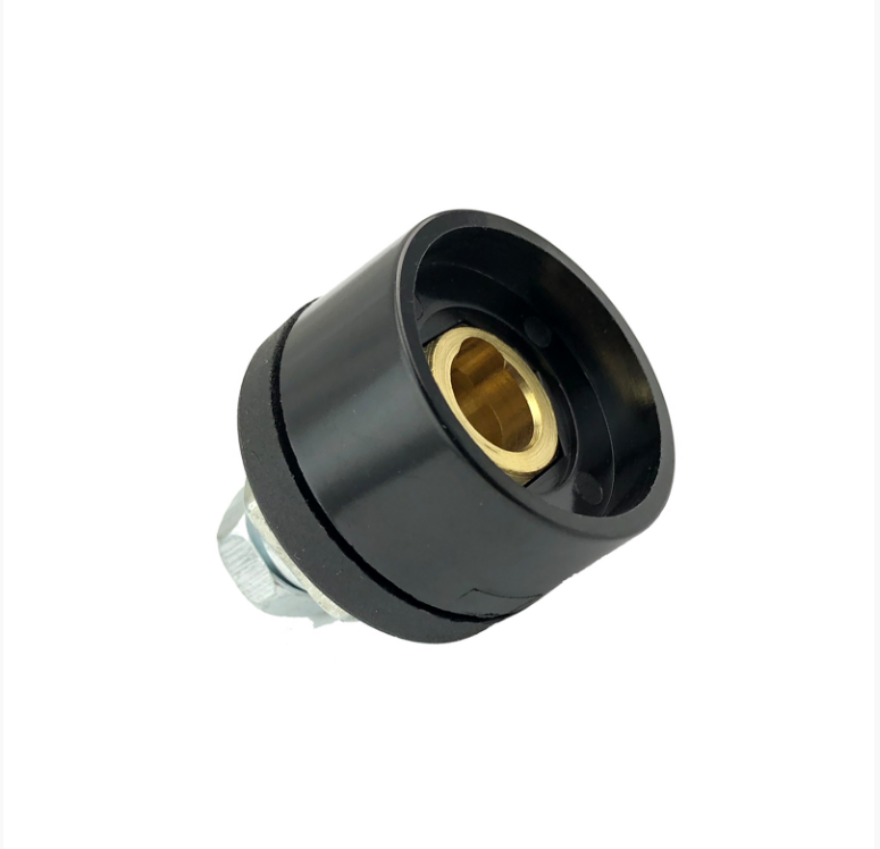

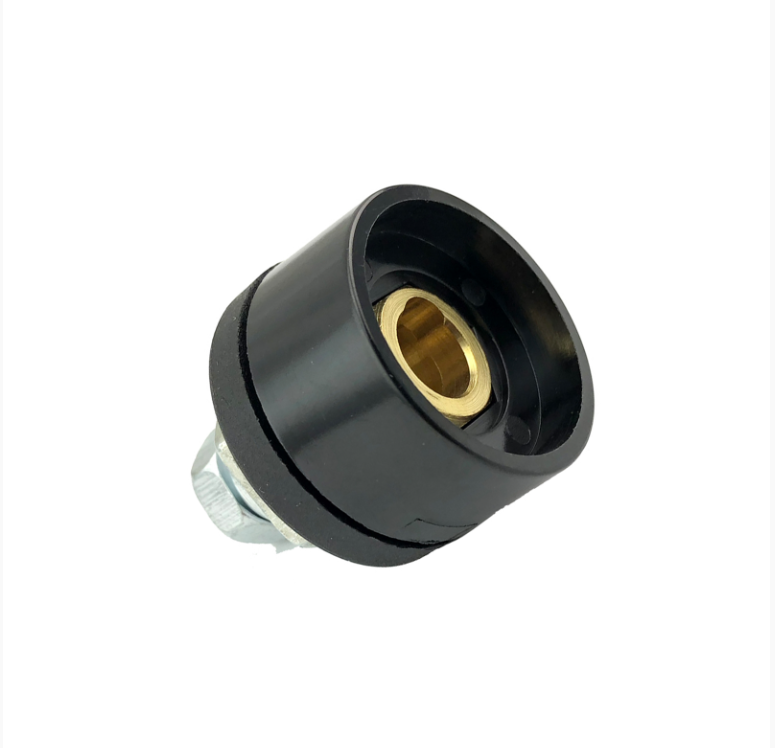

PW1625 PS1025 Panel Socket M8 bolt at rear. 9mm socket at front

*Smaller/Larger cables can be used. When using 10mm² or smaller, we recommend doubling over the conductor to ensure cable is secured adequately, ensuring excellent electrical conductivity. Up to 35mm² cable can be fitted to this plug.

Also known as;
Male: CP1025, CP1625, PP1025, PP1625, LE20501, 705152
Female: CS1025, CS1625, PS1025, PS1625, 705153, 7977159
