Strata Large Dinse Connectors

Be the first to review this product
Free shipping on orders over $50
Strata /
SKU: CP3550

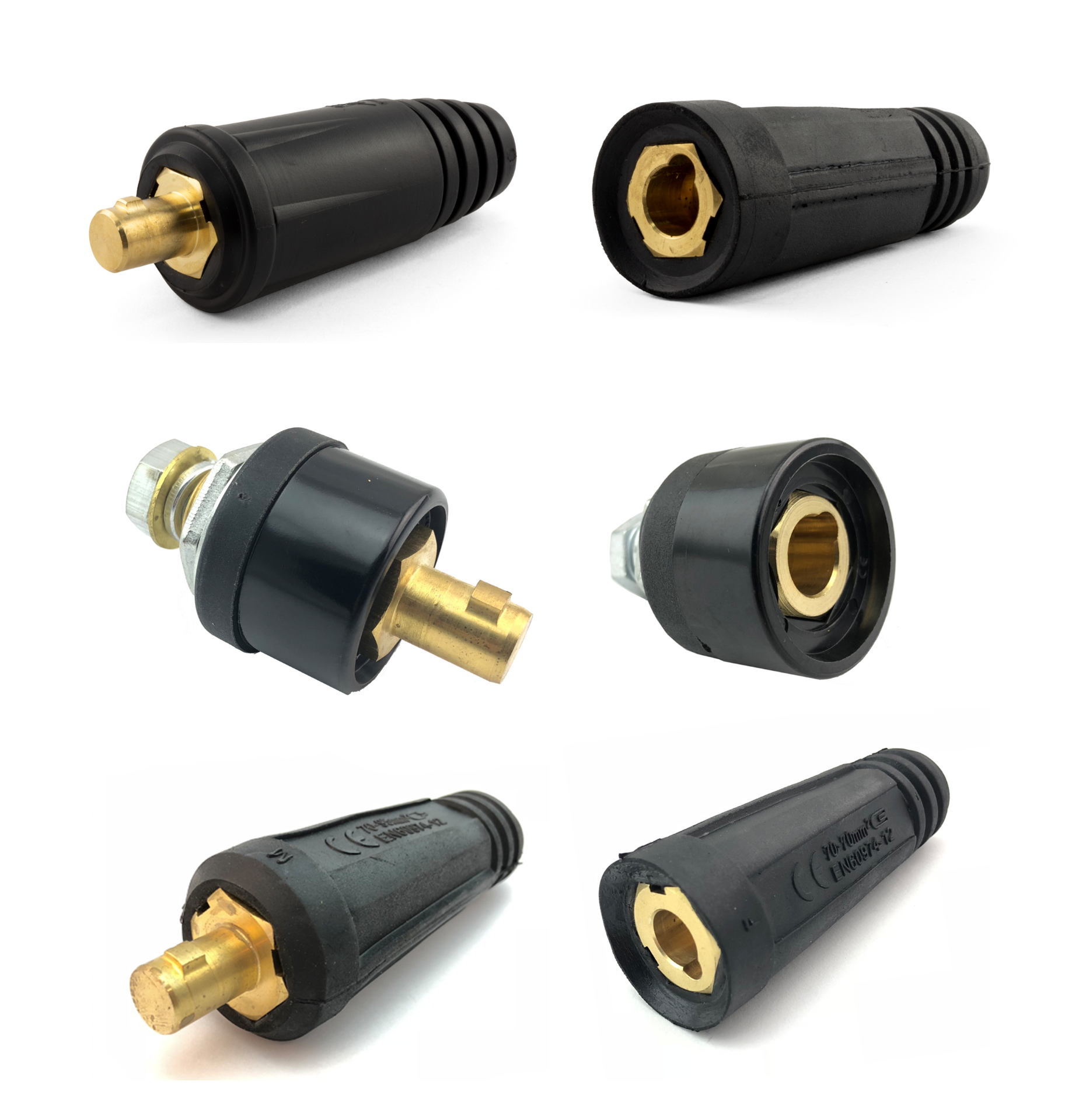

Available as a Cable Plug, Cable Socket, Panel Plug & Panel Socket. The large size (12.7mm pin) is best suited for 35-95mm² welding cable. Dinse connectors are also known as Tex or Texas connectors.
*
$ 9 .00 Excl GST
$ 10.35 Incl GST

or 4 interest-free payments of $2.59 with

afterpay-icon afterpay-icon
Overview

Product Overview

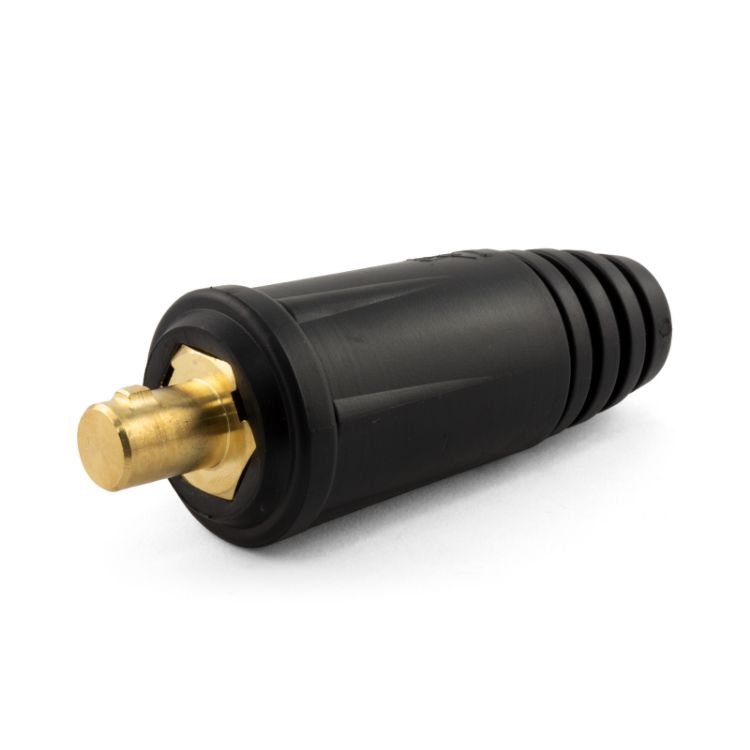

Strata Large Dinse Connectors

Key Features

  • Twist-Lock type connectors
  • Pin size of plug is 12.7mm (1/2")
  • Suitable for up to 500 Amps

Purchasing Options

Product SKUProduct NameOther Product NamesUseful Information

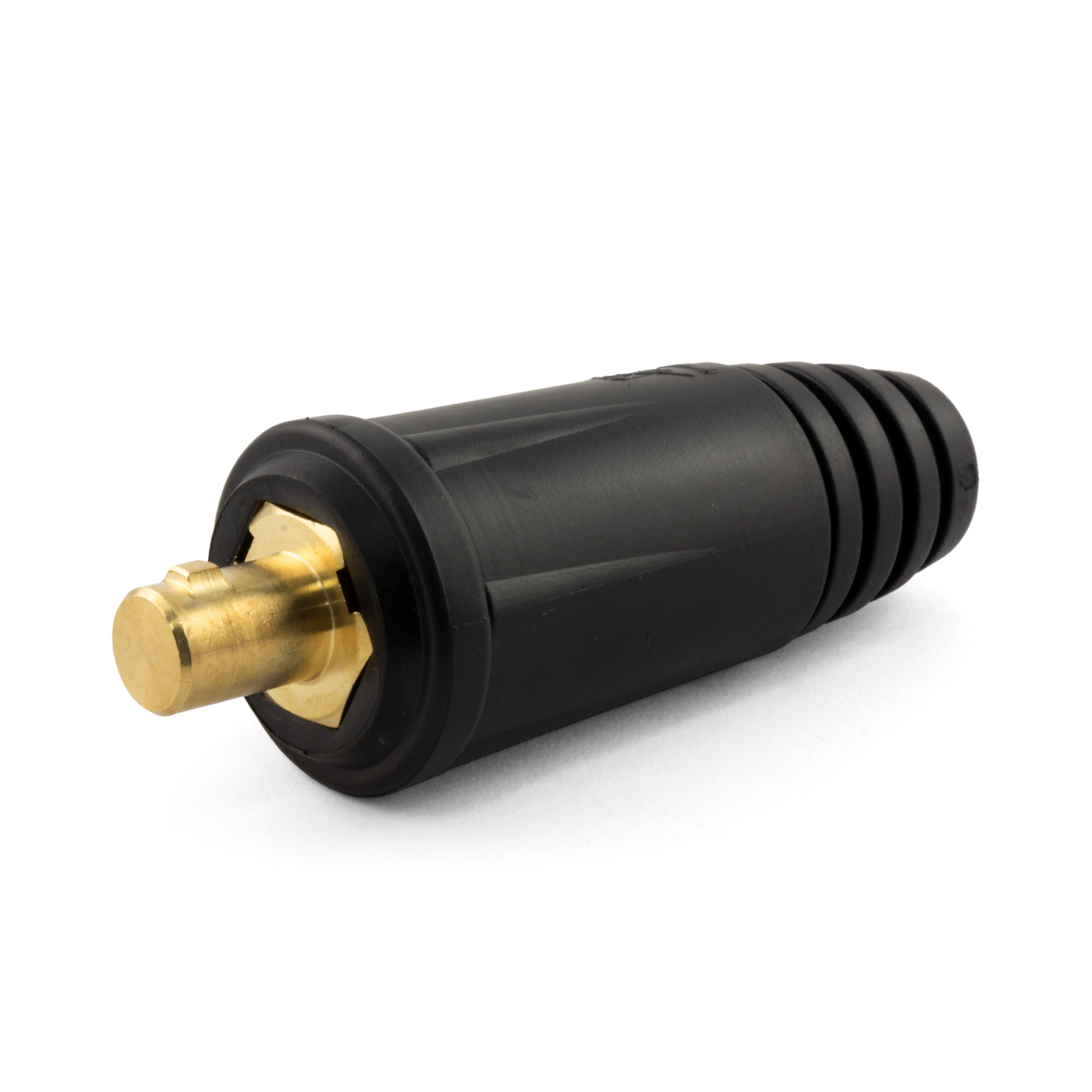

CP3550CP3550 Cable PlugDinse Plug / Tex PlugBest suited to 35-50mm² Cable*

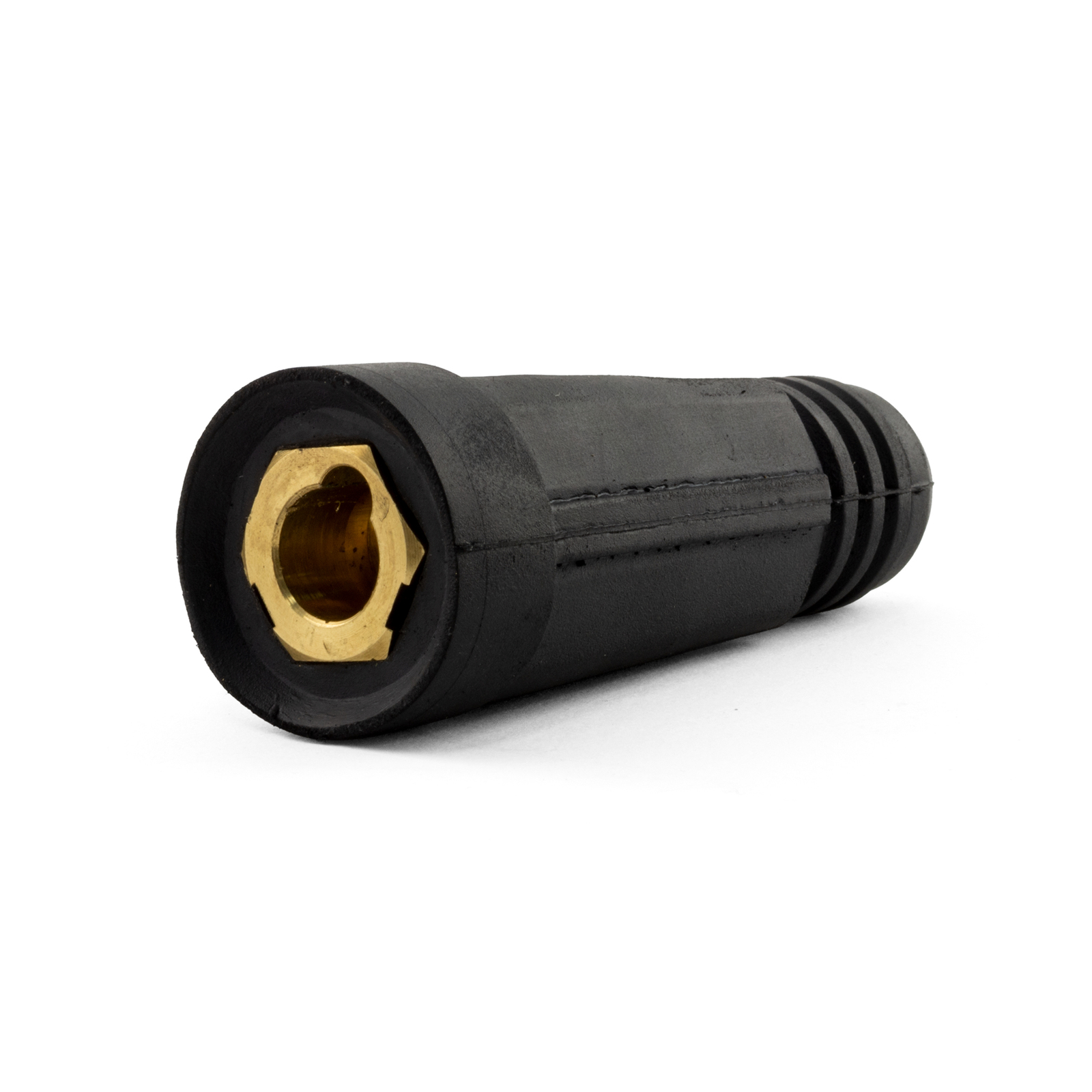

CS3550 CS3550 Cable SocketDinse Socket/ Tex SocketBest suited to 35-50mm² Cable*

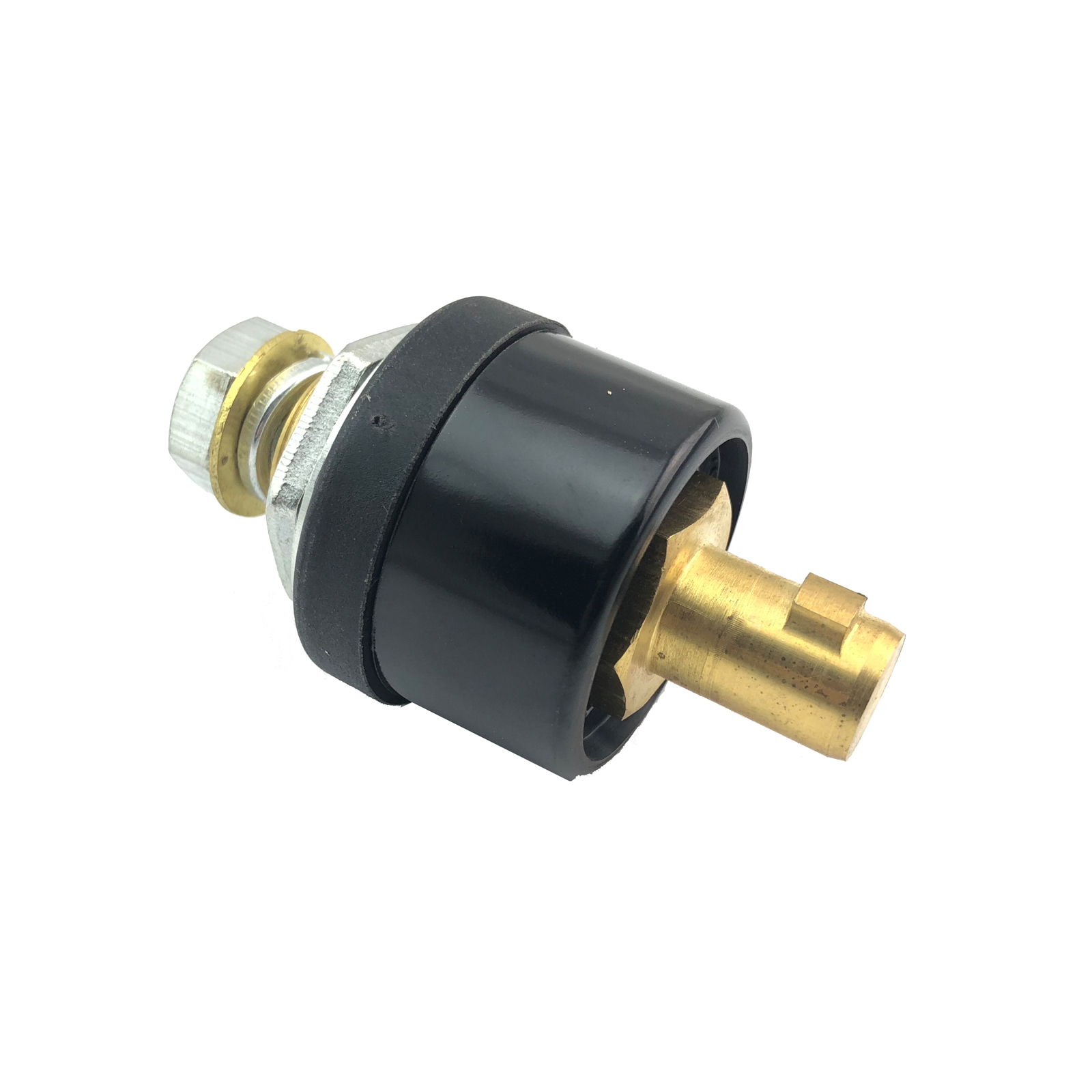

204840 PP3550 Panel Plug M10 bolt at rear. 12.7mm pin plug at front

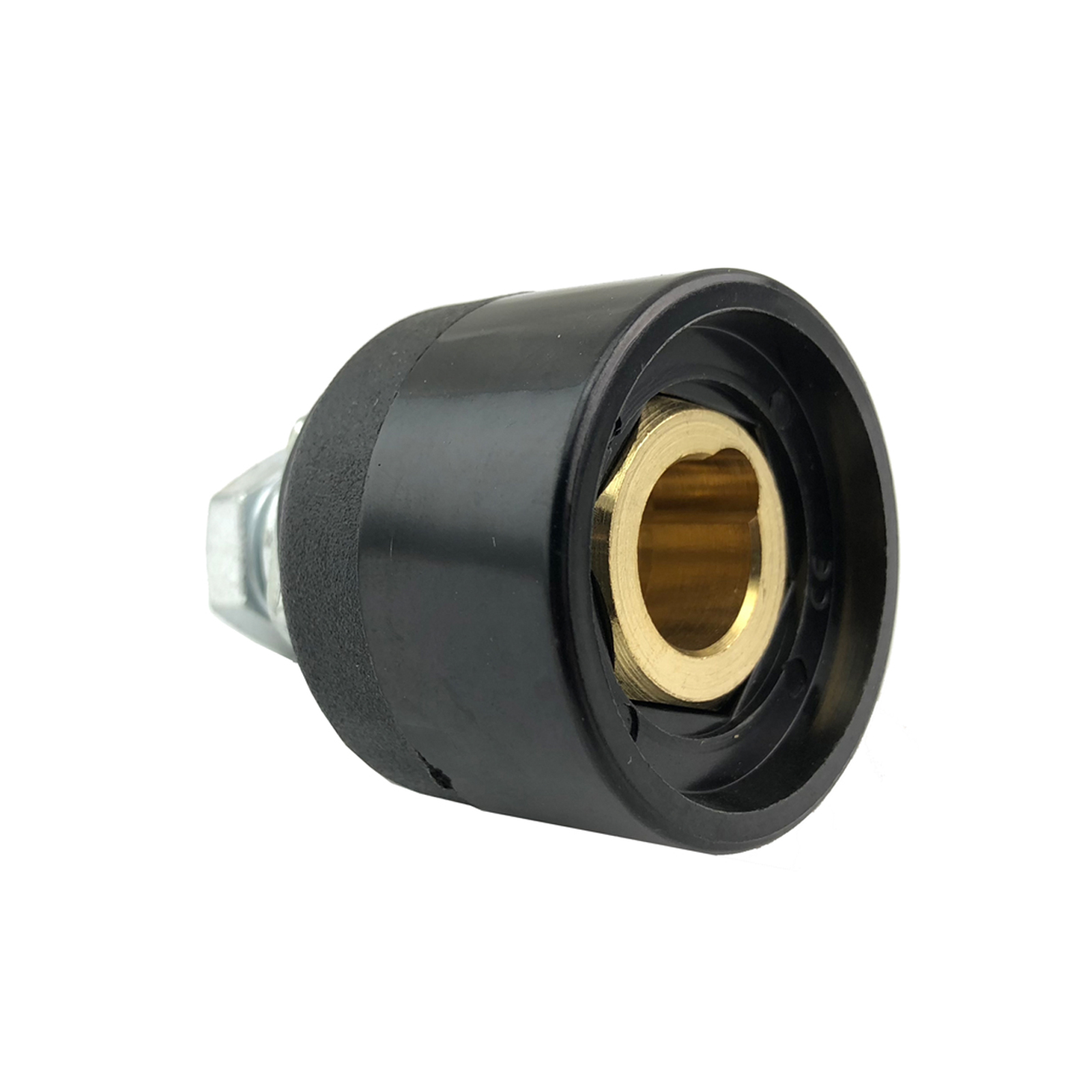

PW3550PS3550 Panel Socket M10 bolt at rear. 12.7mm socket at front

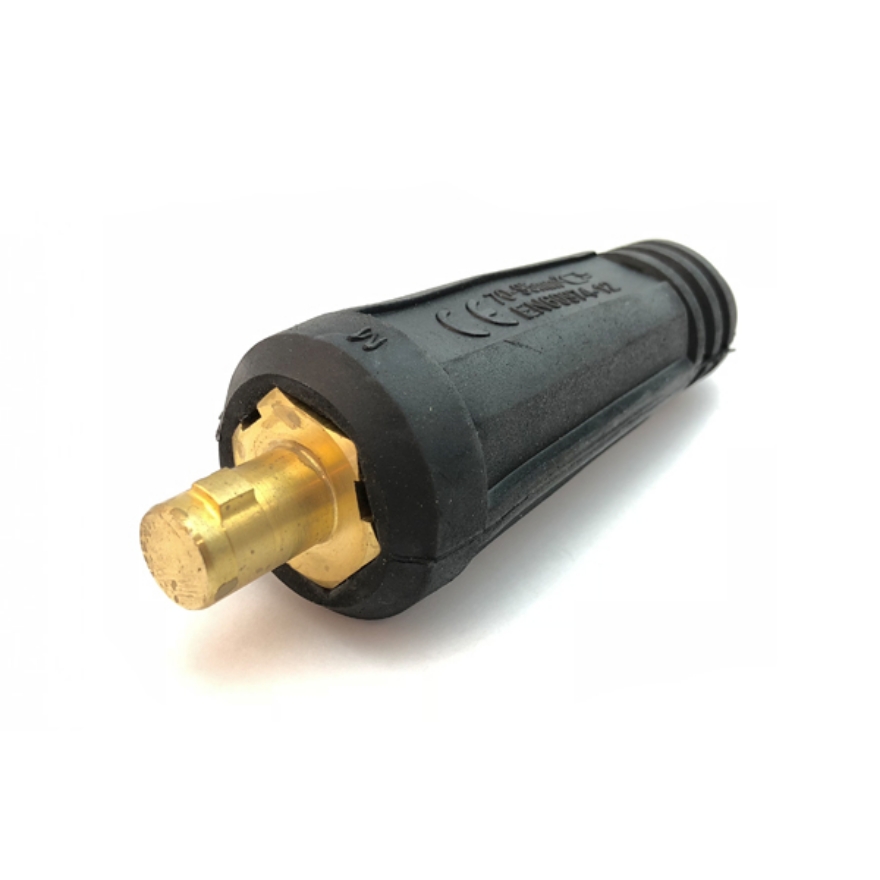

202024CP7095 Cable PlugDinse Plug / Tex PlugBest suited to 70-95mm² Cable*

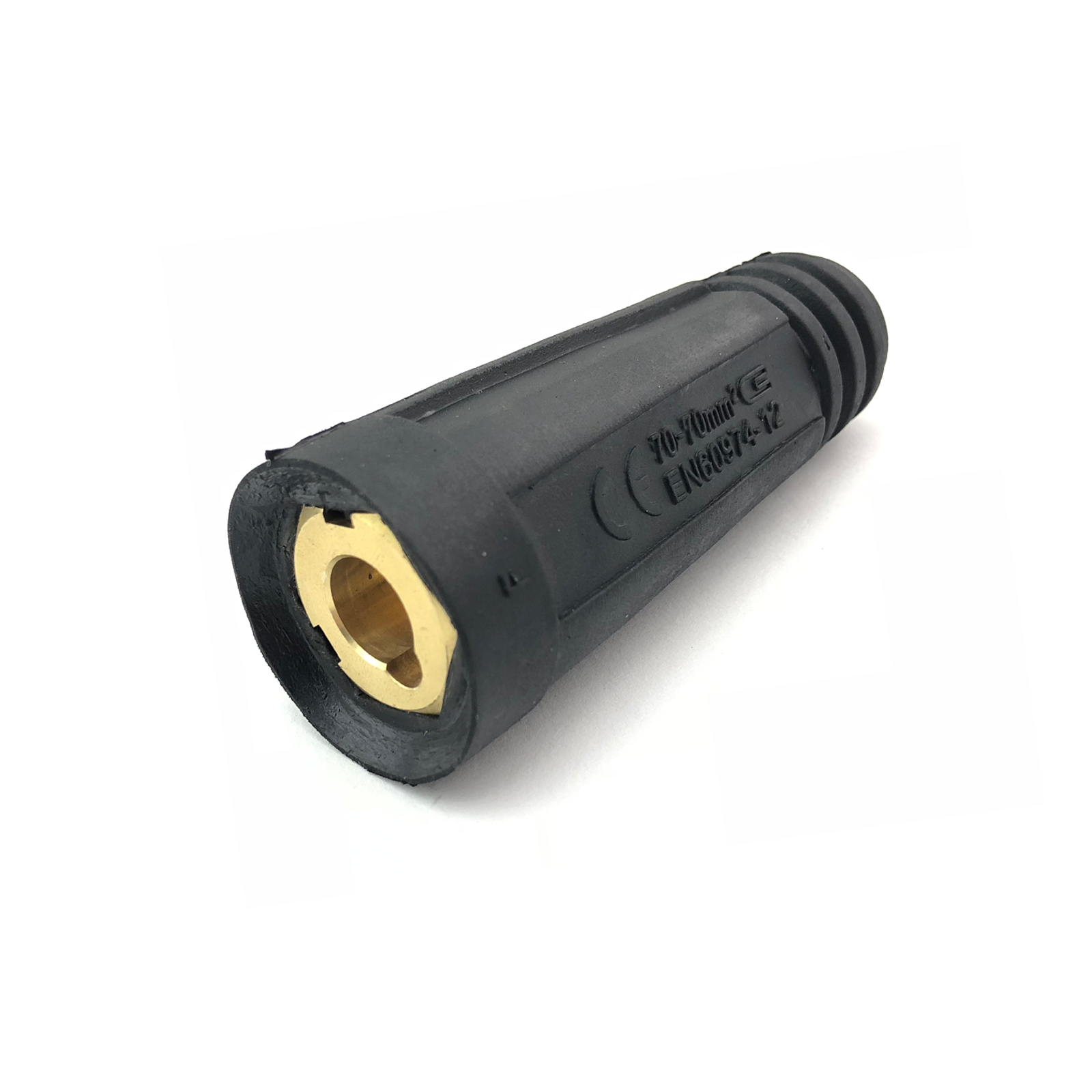

202025CS7095 Cable SocketDinse Socket/ Tex SocketBest suited to 70-95mm² Cable*

*Smaller/Larger cables can be used. When using smaller cable, we recommend doubling over the conductor to ensure cable is secured adequately, ensuring excellent electrical conductivity.

Also known as:
Male: CP3550, CP5070, CP7095, PP3550, LE20801, LE20602, LE20601, 7090, 704461, 705155
Female: CS3550, CS5070, CS7095, PS3550, LE20602F, 704460, 705154
