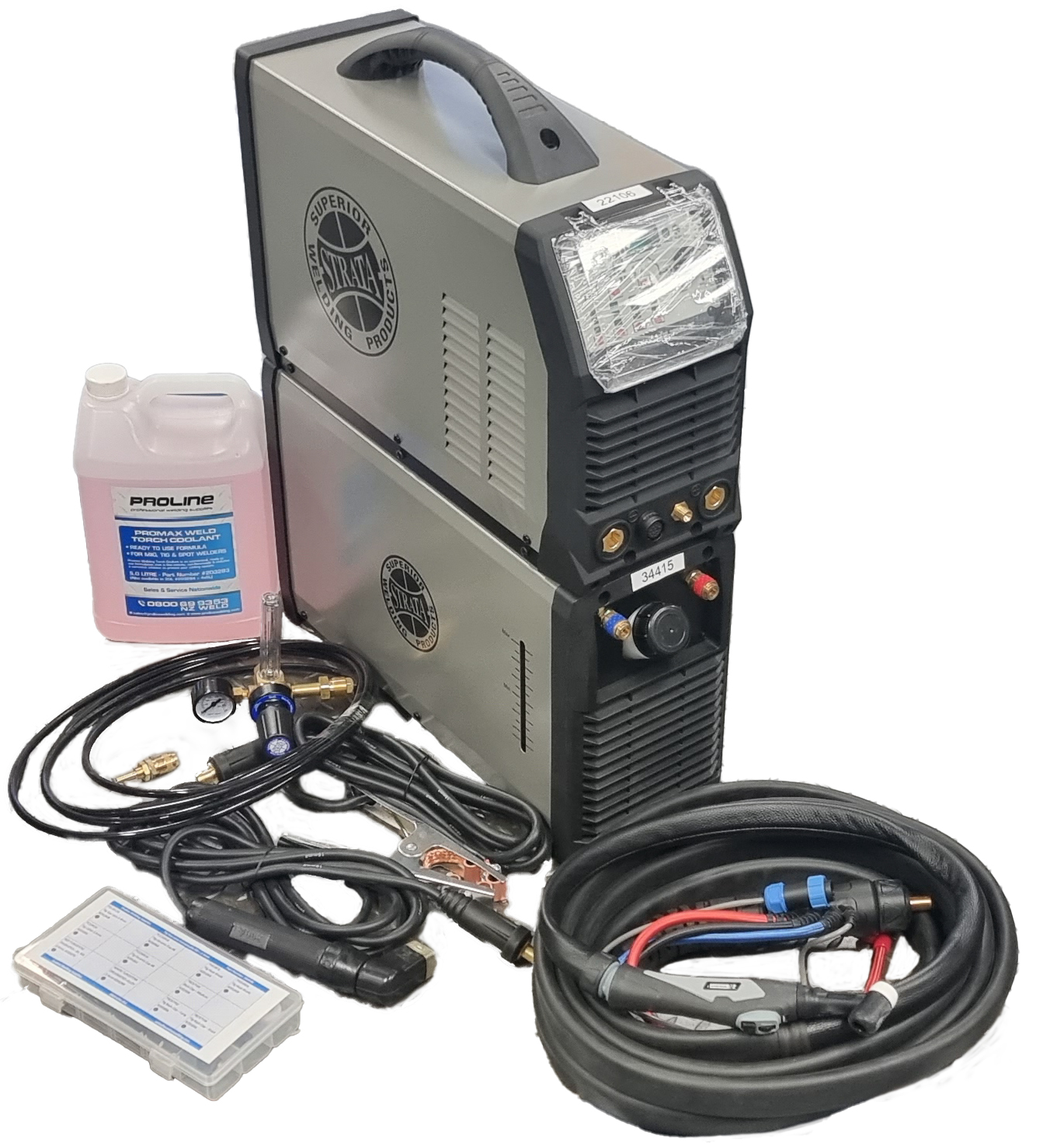

Strata AdvanceTig205ACDC Water Cooled Package

Strata AdvanceTig205ACDC Water Cooled Package

Featuring the latest IGBT and active PFC technology, the ADVANCETIG205AC/DC is reliable, easy to use and energy efficient. Designed tough with IP23 and high-quality, over-specified components - this machine is made for rugged NZ workshops and onsite tasks.

Key Features:

AdvanceTig205ACDC:

- Multi-voltage input - will operate with a wide range of input voltage

- Industrial IP23 casing with front panel protection resists damage, moisture and corrosion

- Microprocessor control system for superior & dynamic arc characteristics

- Lightweight & compact design ideal for portable applications

- Extreme stress testing to 440v in production for rugged reliability.

- Adjustable arc force, hot start & automatic anti-stick control for greater control and ease of use for MMA welding.

- Lift TIG and HF start modes for versatility when welding around sensitive electronic equipment

- Electronic HF TIG arc ignition system for contamination-free and easy arc starting with low EMF interference

- 2T/4T trigger control modes

- Dual digital display meters for accurate pre-setting and feedback of welding parameters & output.

- Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety

- Multi-PCB construction is economical to service and repair compared to single PCB design

230V Water Cooler (34415):

- Compact water cooler designed for use with portable TIG welding machines

- Small footprint and low weight for easy portability

- External level indicator for the coolant tank

- Color-coded quick-connect coolant line connections

- Built-in brackets for standard modular connection to Strata AdvanceTig205ACDC machine

- Suitable to use with other Tig welders (BW-TIG200ACDC and EziTig205ACDC)

- Dimensions: 600x180x240mm (LxWxH)

- Weight: 10kg
