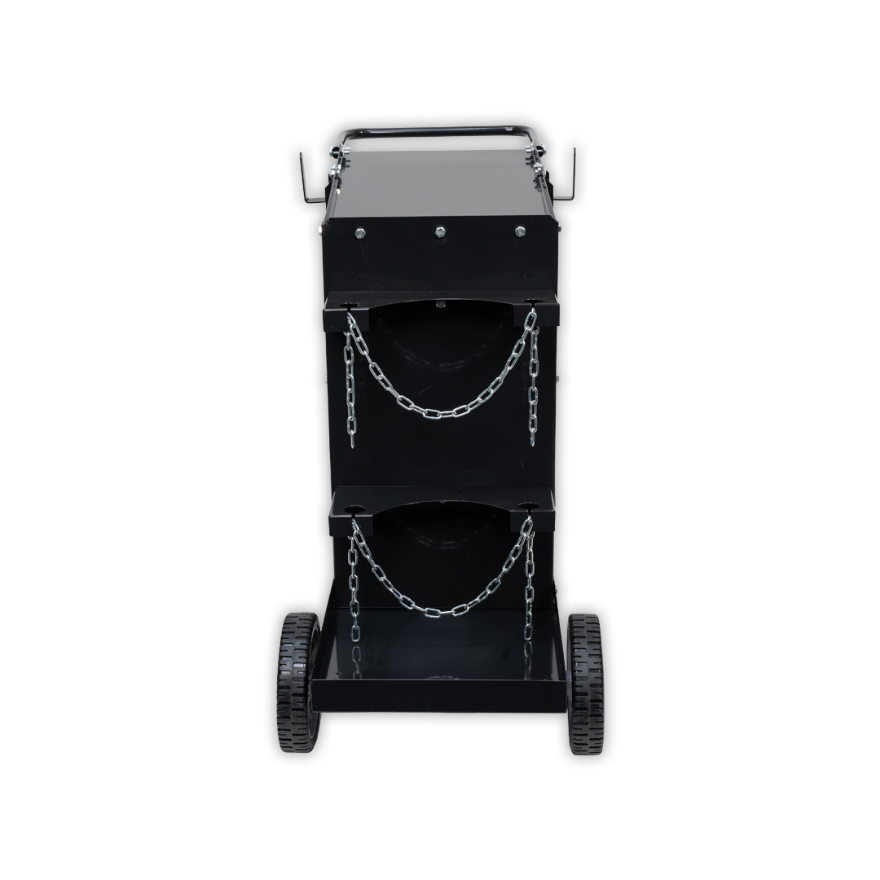

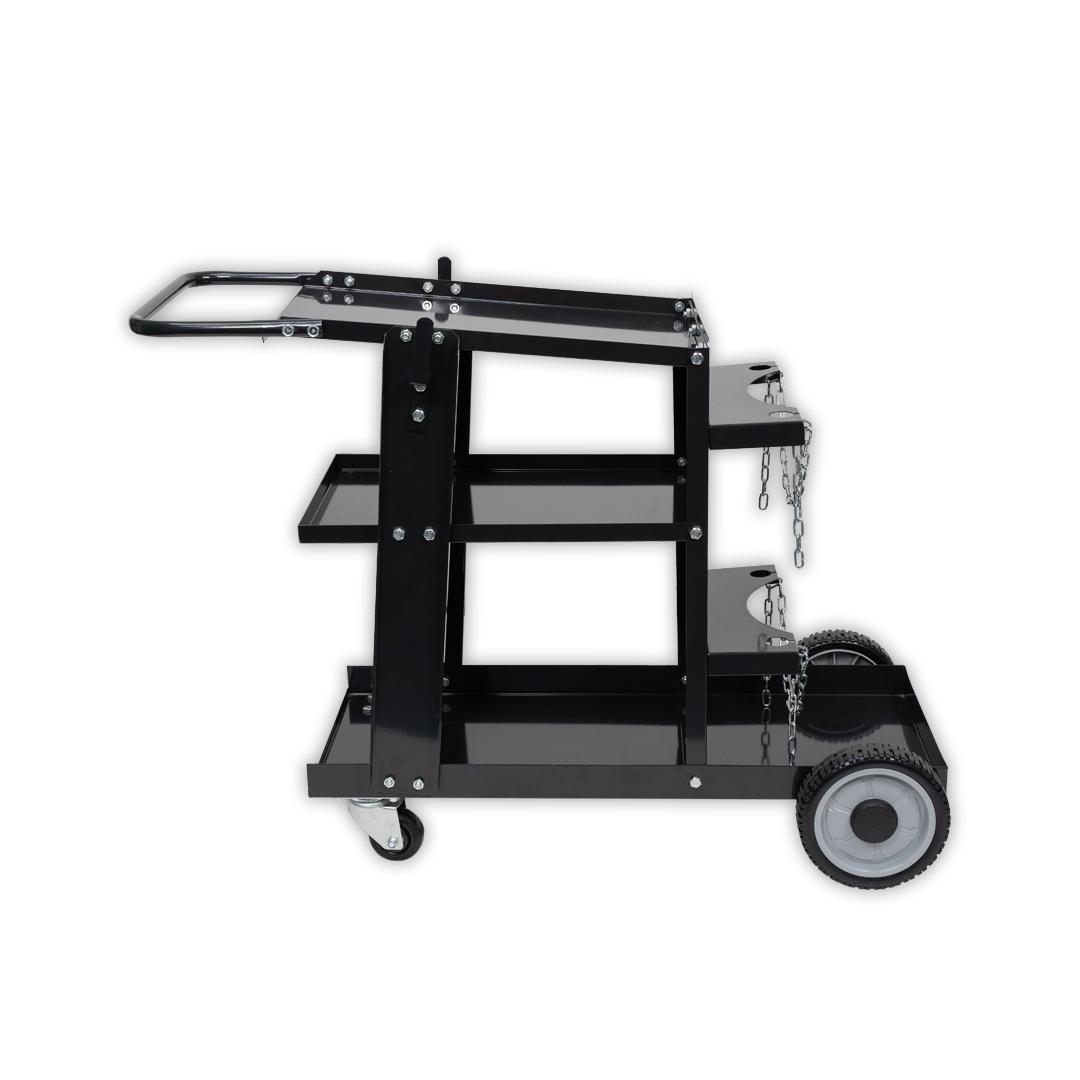

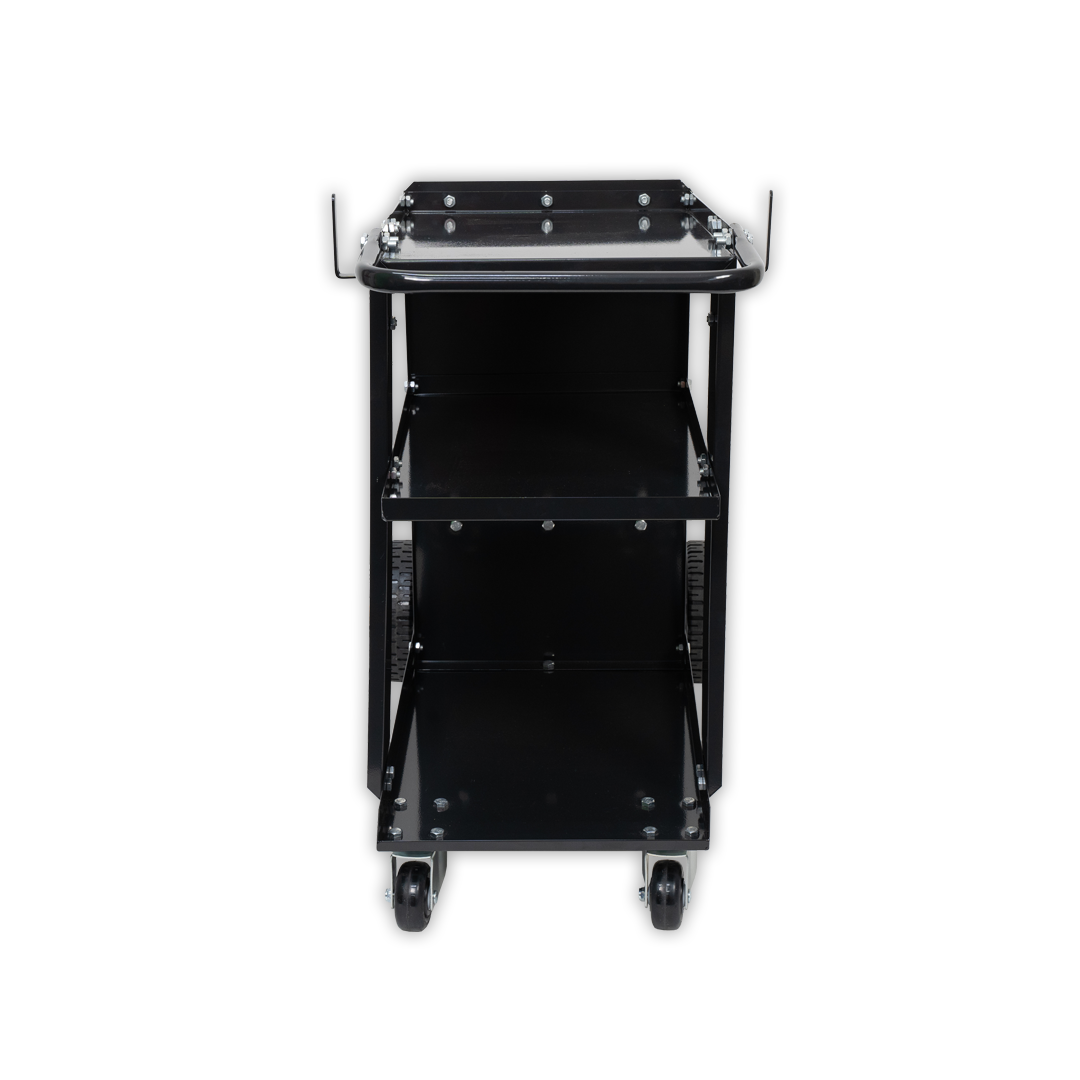

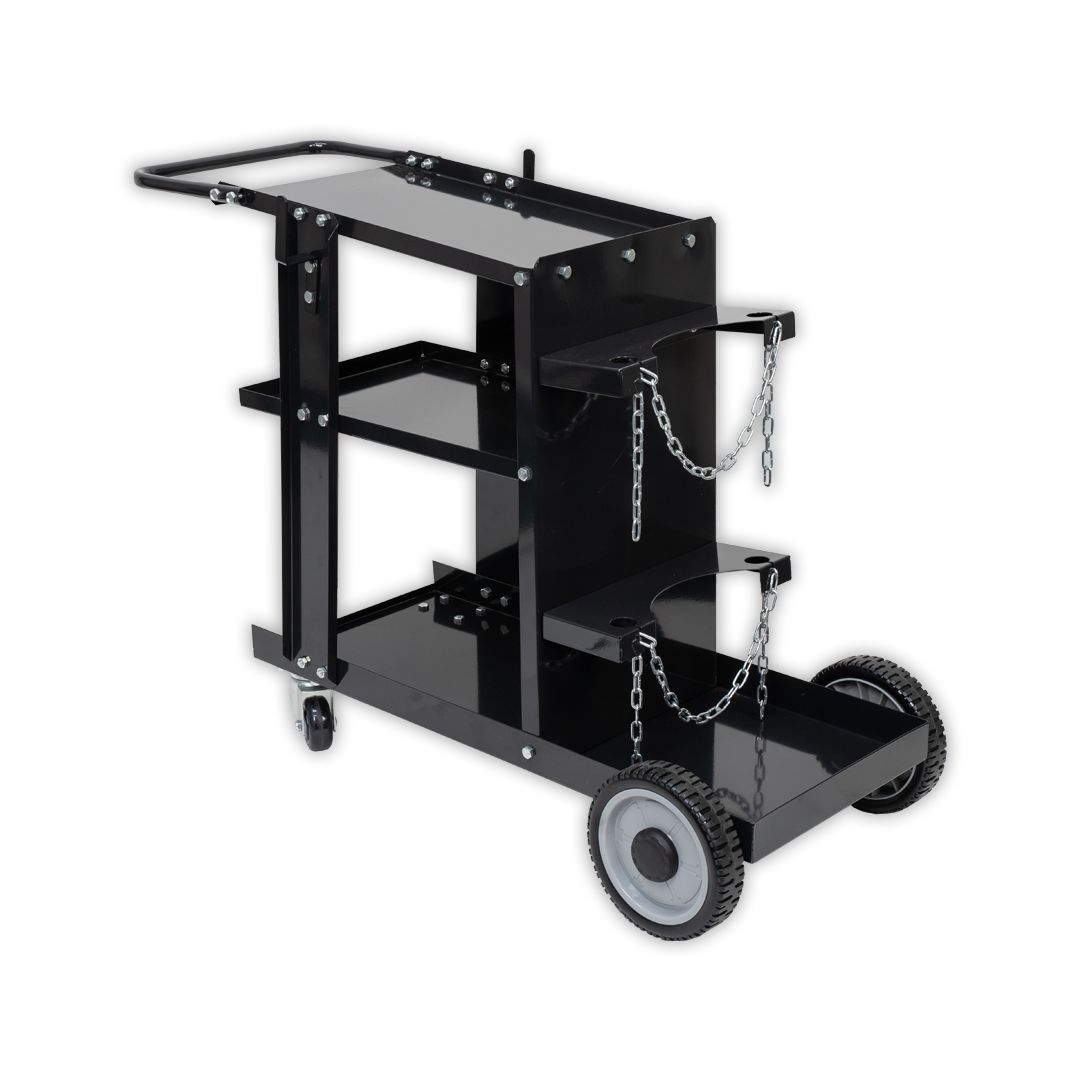

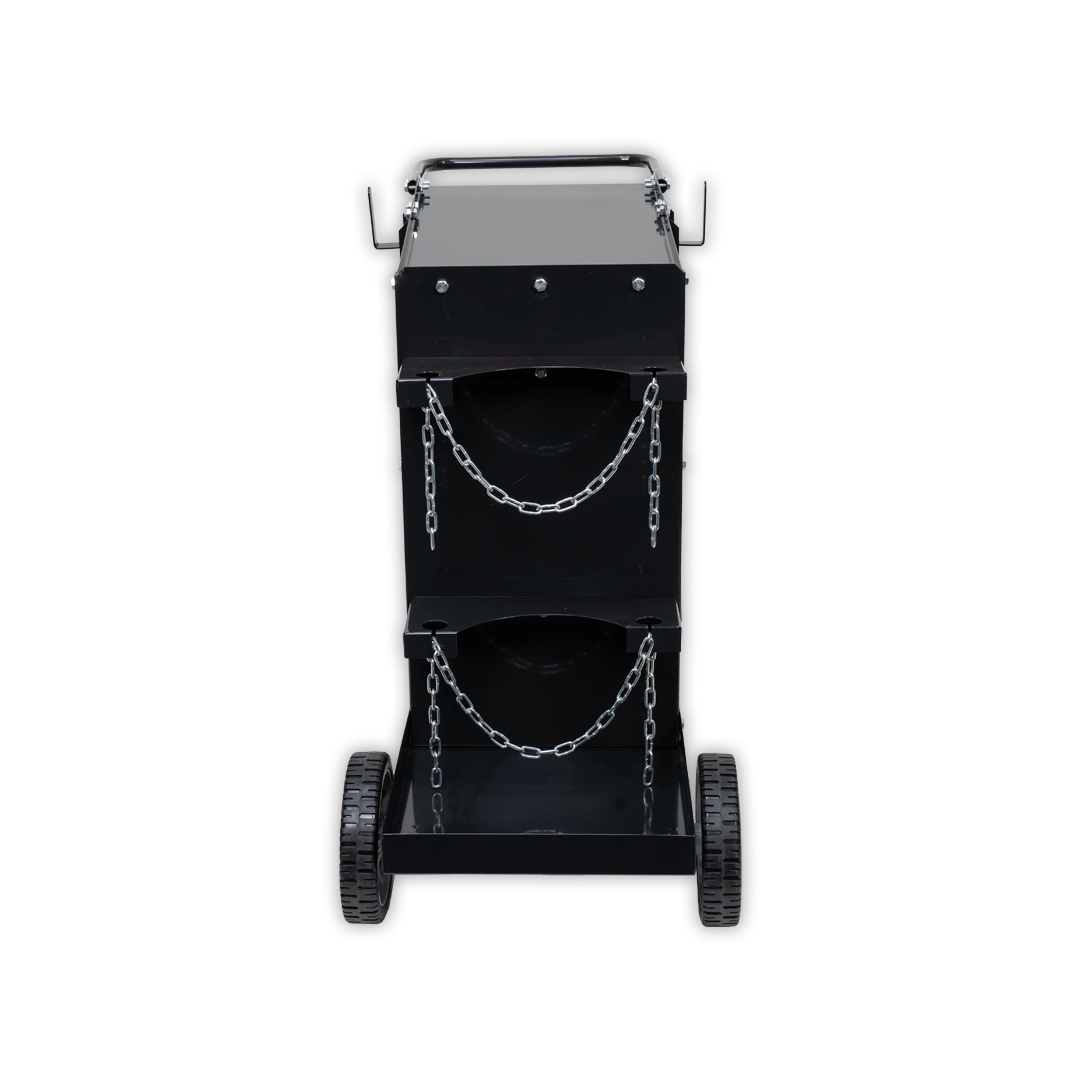

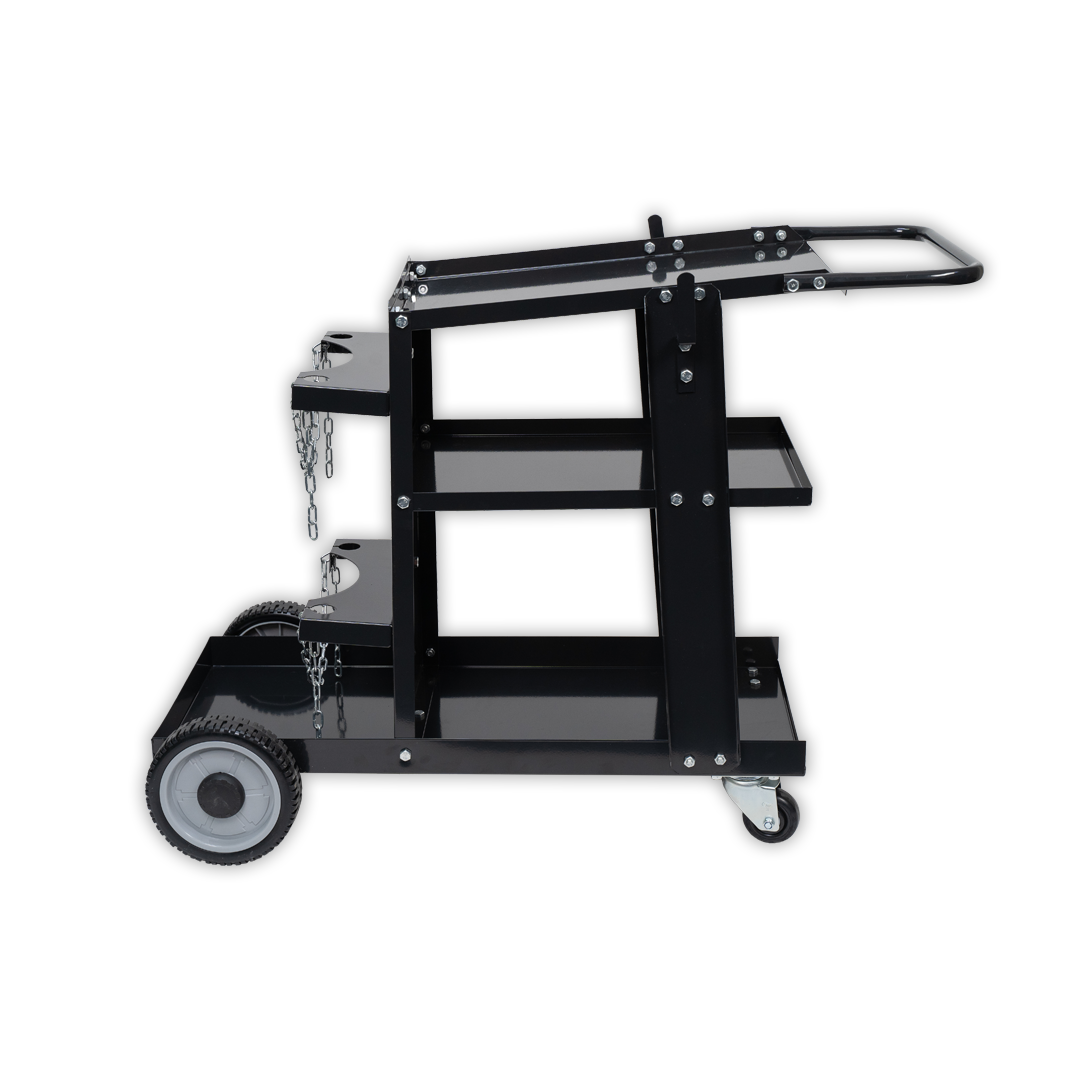

PWS Multi-Purpose Welding Trolley

203427 - PWS Multi-Purpose Welding Trolley
Excellent value, heavy duty, portable work station for a range of welding machines and plasma cutters. Suits most common ACDC Tig welders with room for a water cooler on the lower shelf.

Popular Uses:

• ACDC Tig Welder (top) + Water cooler (bottom) - view photo
•  Mig/Arc/Tig Multi Process (top) + Plasma Cutter (bottom)

Details:

• Top shelf which will hold the Mig, Tig or Arc welder or Plasma Cutter
• The bottom shelf will hold a Plasma Cutter, Water Cooler or Arc/Tig welder
• The middle shelf allows storage of necessary welding accessories and spare consumables
• The Gas Bottle Mount incorporates a Tig Rod Holder to store up to 6 different tubes of filler rods
• The design of the top shelf allows for the side access door on the Migs to be opened without taking the welder off the cart
• Heavy duty front castor wheels
• Heavy duty rear wheels with bearings
• Satin black powder coated finish
• Cut out in rear to allow plasma cutter cable routing through the rear of the cart
• Holds up to 80CF Gas Bottle
• Front mounted handle for easy manoeuverability around the workshop
• Two side hooks for cable storage

Welding Cart Dimesions:

• Total Height - 775mm
• Total Width - 410mm
• Total Length (not including handle) - 818mm
• Total Length (including handle) - 965mm
• Top Shelf Width - 295mm
• Middle Shelf Width - 295mm
• Bottom Shelf Width - 295mm
• Top Shelf Length - 510mm
• Middle Shelf Length - 380mm
• Bottom Shelf Length (not including bottle storage) - 445mm
• Bottom Shelf Length (including bottle storage) - 755mm
• Between Bottom & Middle Shelf - 360mm
• Between Middle & Top Shelf - 220mm
