Strata Ezi TIG 205 ACDC Tig Welder 200A

Overview

Product Overview

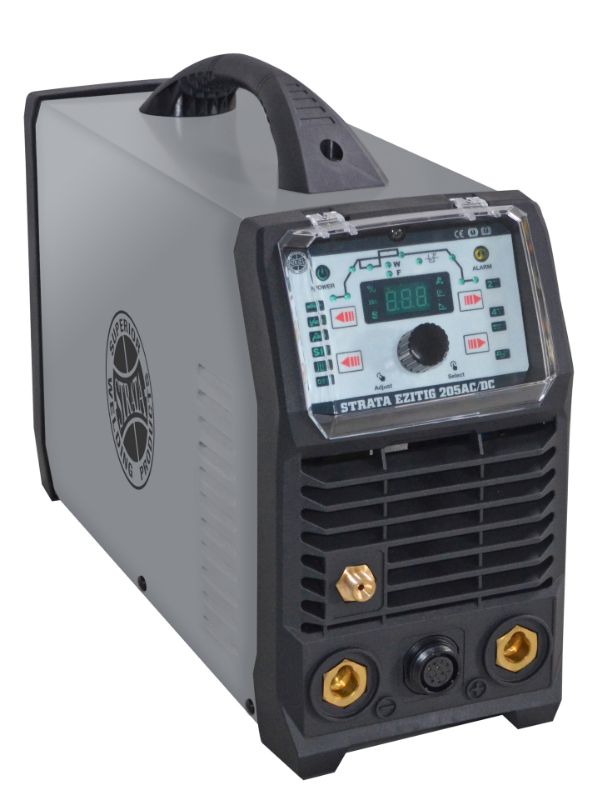

Strata EziTig205 ACDC Tig Welder Powerful 230V, highly portable, easy-to-use machine. Extreme stress tested to 440V, with IP23 protection, the EZI TIG 205 AC/DC is built to last in the harshest NZ work environments.

Key Features

IGBT inverter technology for smooth & stable welding output and increased reliability
Industrial IP23 casing with front panel protection resists damage, moisture and corrosion
Microprocessor control system for superior and dynamic arc characteristics
Lightweight & compact design, ideal for portable applications
Extreme stress tested in production up to 440V, ensuring rugged reliability
Great control and easy-to-use MMA welding with adjustable arc force, hot start and auto anti-stick control
Lift TIG and HF start modes give versatility when welding around sensitive electronic equipment
Electronic HF TIG arc ignition system, contamination-free and easy arc starting with low EMF interference
Spot welding function with 2T/4T trigger control
Durable and reliable with high-quality & over-specified electronic components
Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety
Designed to work with a generator power supply with protection from power surges.
Multi PCB construction is more economical to service and repair than single PCB design.
Potentiometer torch/ foot pedal remote control with finger-tip remote control
All remote functions connect through a single plug 12-pin connection
Quick connect inlet gas fitting

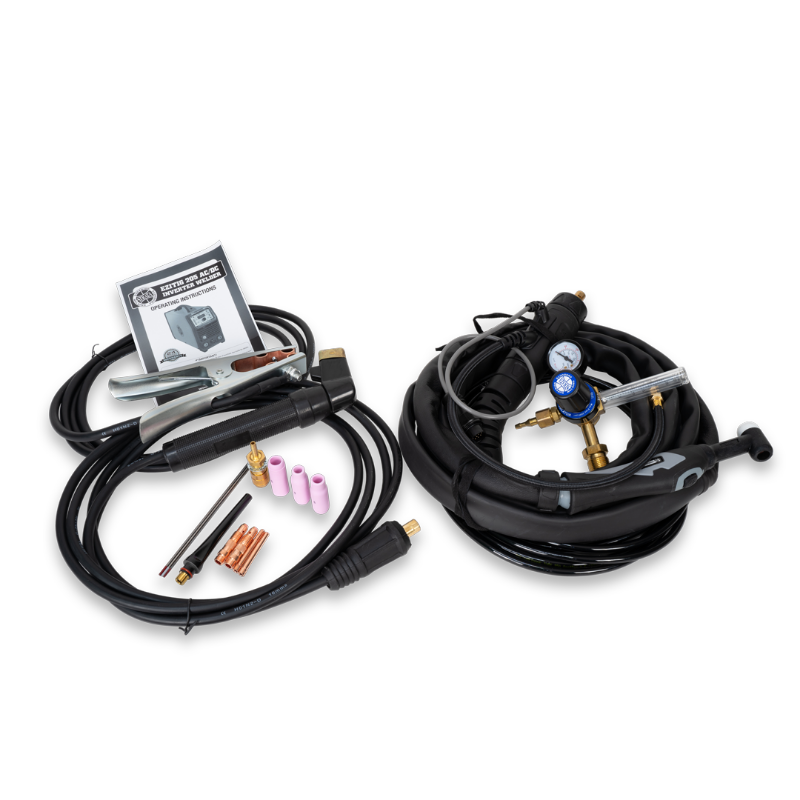

Accessories

Strata Professional PRO26 12ft TIG torch with composite machine connection
3m earth lead with heavy-duty earth clamp
4m MMA lead with heavy-duty twist lock electrode holder
2-Stage Argon flowmeter gas regulator
4m gas hose
Gas inlet quick connector
Hose clamps.

Resources

Downloads

Overview

Specifications

Dimensions / 455x305x145mm
Weight / 8.5kg
Input Power Supply / 230V AC 15A 50/60Hz
Input Power Supply Tolerance / ±15%V
Maximum Input Current / 32A
Generator Capacity / 10KVA
MMA Current Output / 10A-170A
MMA O/C Voltage / 52V
MMA Duty Cycle / 170A@14% 140A@60%,110A@100%
TIG Current Output / 10-200A
AC TIG Duty Cycle / 200A@24% 155A@60% 120A@100%
DC TIG Duty Cycle / 170A@29% 140A@60% 110A@100%
TIG Down Slope / 0-10S
TIG Post Flow / 0-2/0-10S
Insulation Class / IP23
Power Efficiency / 0.8
Power Factor / 0.7
Standards / EN60974-1:2012
MMA Rod Size / 1.6-4.0mm
Warranty / 24 month* with product registration
