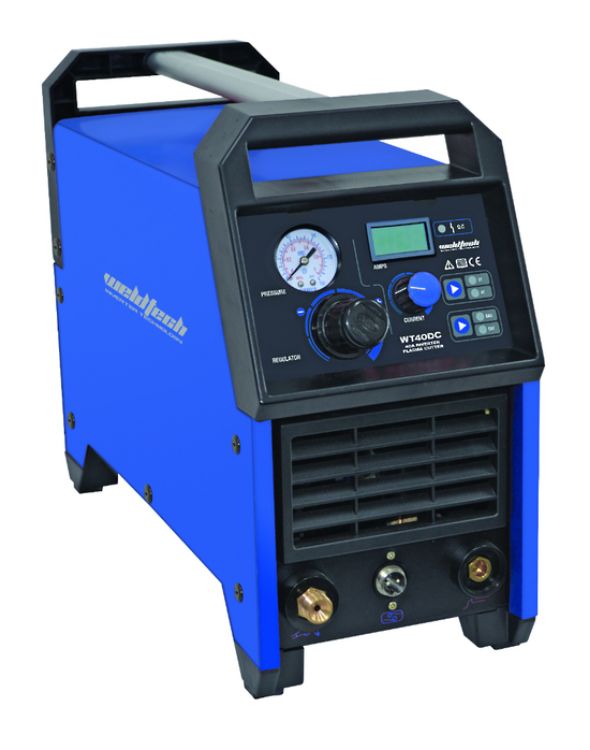

Weldtech WT40DC 40A Inverter Plasma Cutter

Free Shipping
weldtech /
SKU: 18034
Weldtech WT40DC 40A Inverter Plasma Cutter, supplied with 5m Torch and 3m Earth Lead. Cuts up to 8mm.
Overview

Product Overview

Weldtech WT40DC 40A Inverter Plasma Cutter

The Weldtech 40A Plasma Cutter provides excellent Value! It's perfect for carbon steel stainless steel and aluminium work around the workshop and comes with a 5m Torch and 3m Earth Lead.

Powerful - 40A plasma output - Cuts up to 8mm steel
Portable - Only 9.5kg super lightweight and portable
Reliable - Cutting edge Inverter Technology

Key Features

  • Heavy Duty Casing & Front Panel Protection
  • Includes: 5m Plasma Torch and 3m Earth Lead
  • Built-in self-draining water trap creating clean dry air for added consumable life.
  • Heavy-duty case with full-length aluminium handle.
  • Common, low-cost torch PT-31 torch consumables.
  • Air hose plugs directly into rear panel with 1/4 ARO quick coupling.
  • Ideal for portable applications
  • Increased duty cycle and efficiency
  • Increased starting performance and consumable life
  • Lightweight and compact design – only 9.5kg
  • Set and test air pressure without the need to trigger the torch

Replaced by Weldtech WT35P

Overview

Specifications

Input Power Supply Tolerance / +/-15%
Power Input / 230V AC 15A 50/60Hz
Max Inpurt Current / 28.6A
Generator Capacity / 6.6 KVA
Plasma Output Current / 15-40A
Duty Circle / 40A@30%, 31A@100%
Plasma Production Cut Capacity Carbon Steel / 10mm
Plasma Production Cut Capacity Aluminium / 6mm
Insulation Class / IP21
Weight / 9.5kg
Dimention / 415x194x307mm
Power Efficiency / 0.8
Power Factor / 0.73
Compressed Air Requirement / 120l/min 5bar
Compressed Air Inlet Fitting / Aro 1/4: Male
