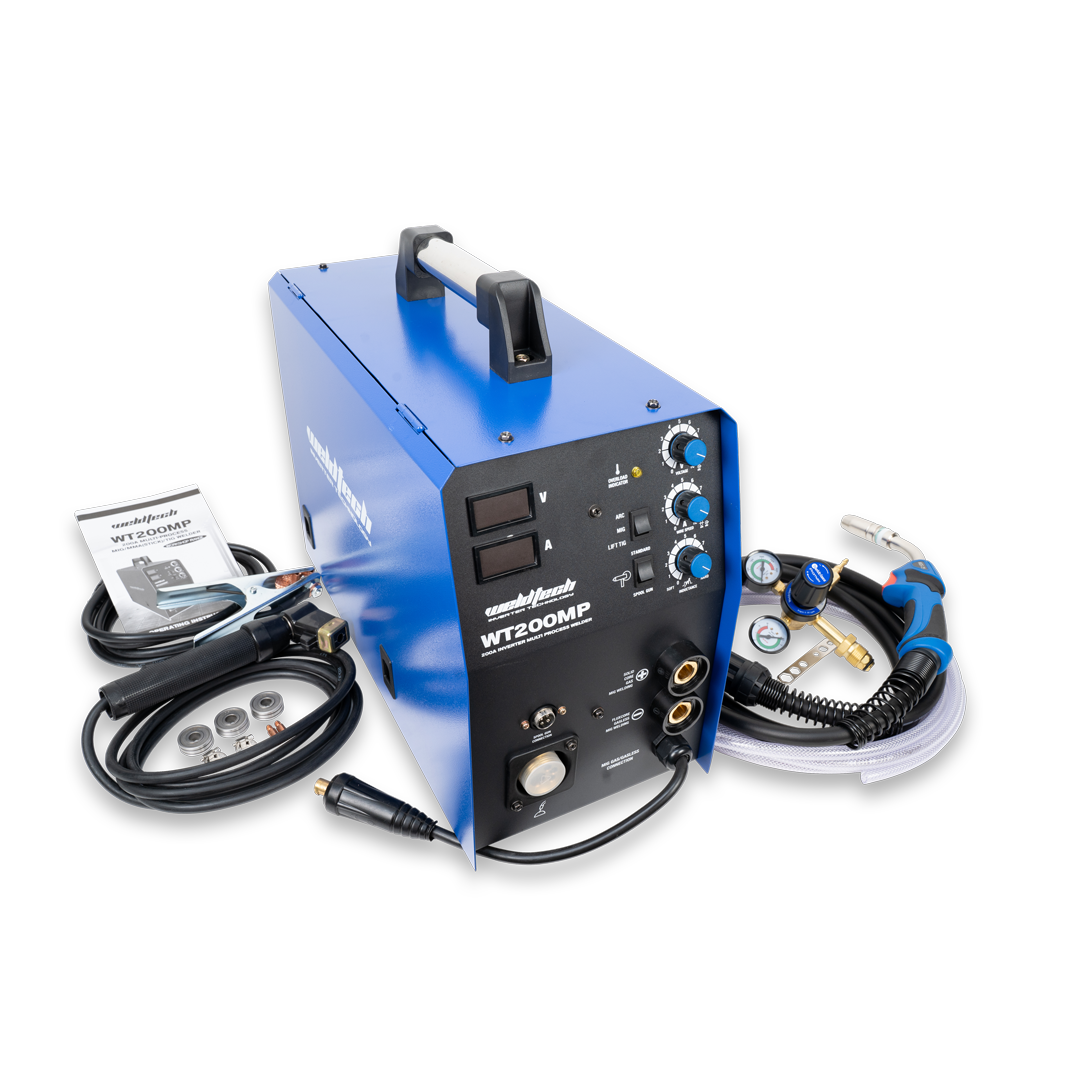

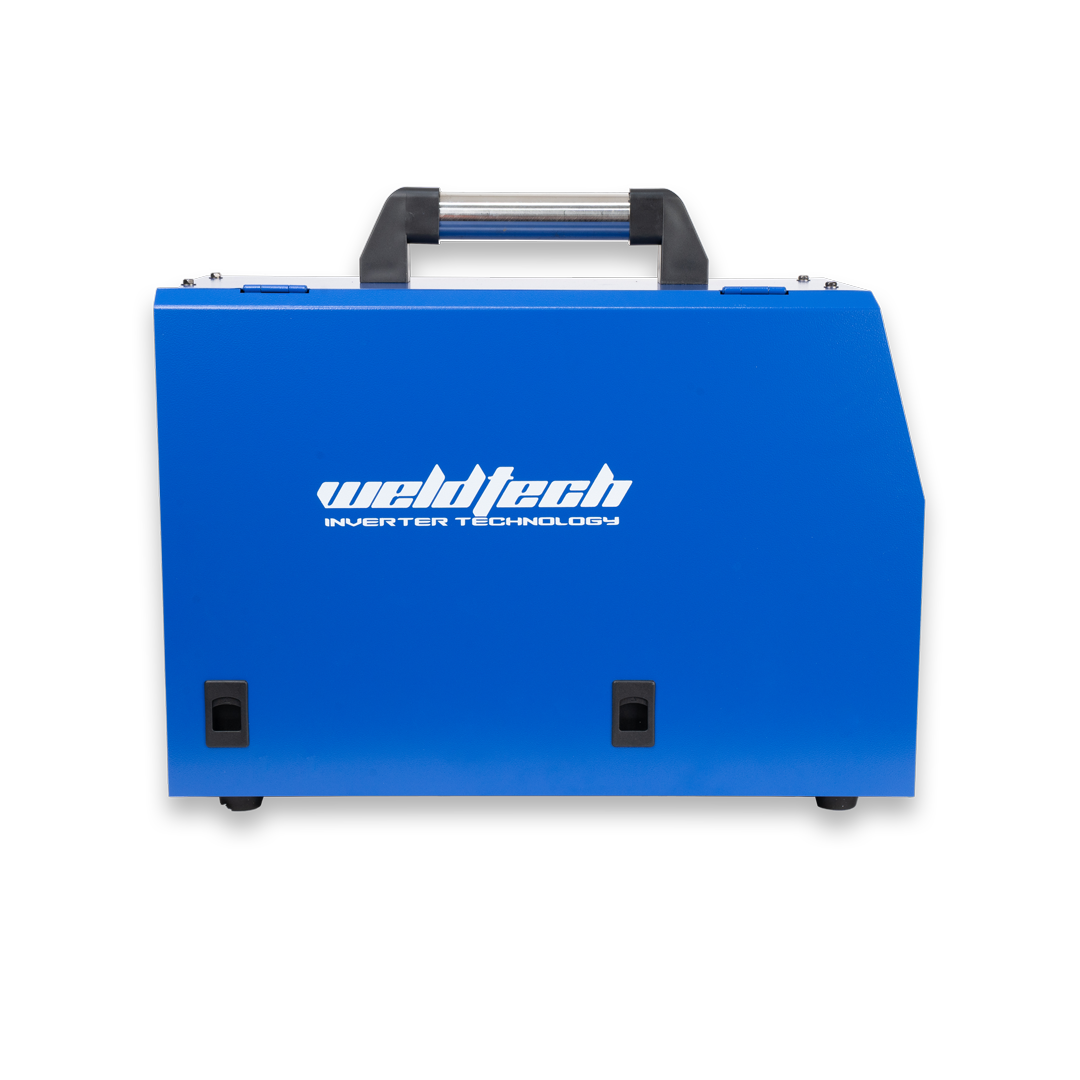

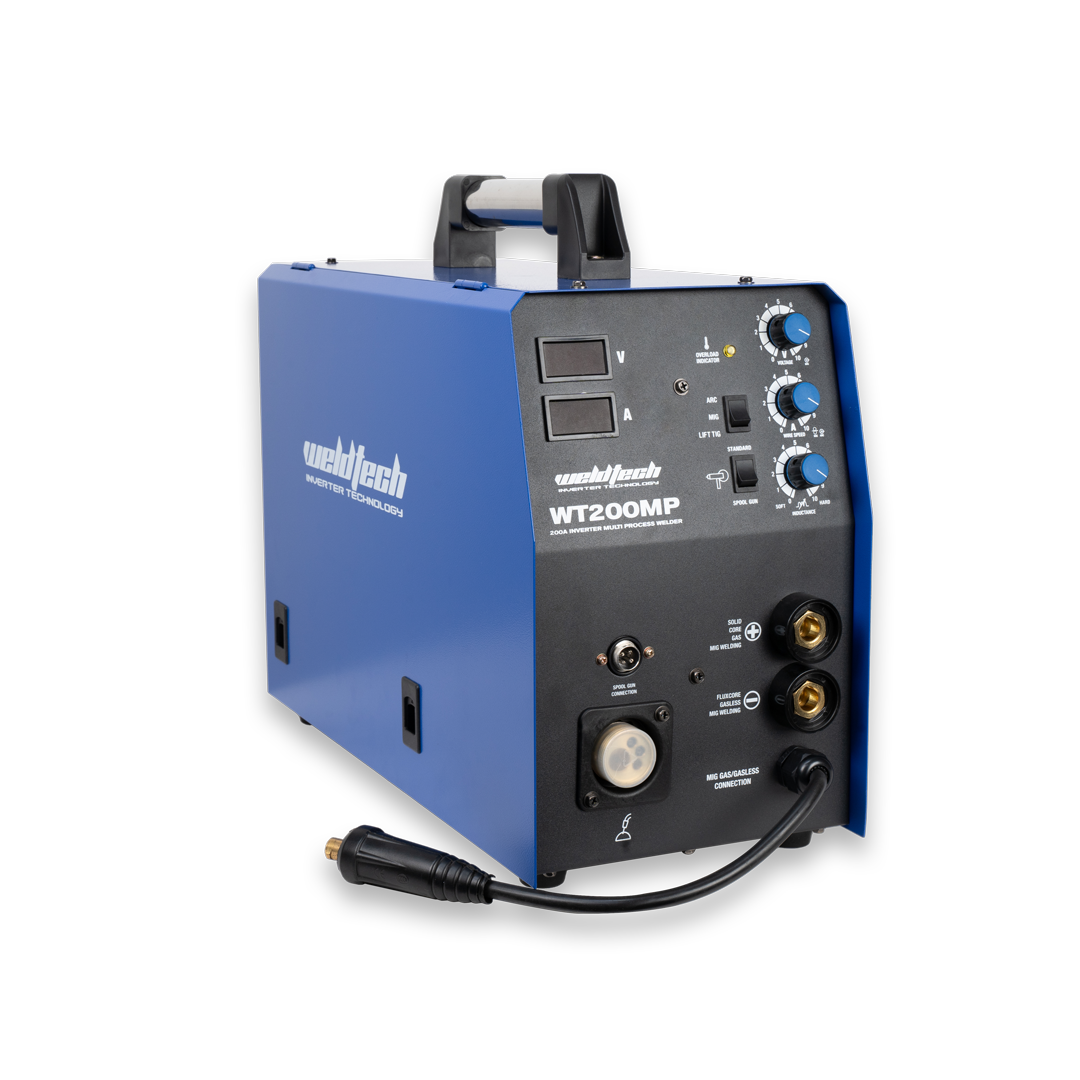

Weldtech Inverter Multi-Process Welder WT200MP

(1)
Free Shipping
Weldtech /
SKU: WT200MP
Cutting edge IGBT Inverter Technology with MIG, TIG and ARC processes available. Produces professional results on workshop or on-site projects!
$ 895 .00 Excl GST
$ 1,029.25 Incl GST

or 4 interest-free payments of $257.31 with

afterpay-icon afterpay-icon
Overview

Product Overview

Cutting edge IGBT Inverter Technology with MIG, TIG and ARC processes available. Produces exceptionally good welding results.

The Weldtech product range is subject to stringent quality control and designed and manufactured to NZ & Australian standards.

A common use of Weldtech products include:

  • Light Engineering
  • Automotive
  • Home/ Hobby Engineering
  • Farming
  • Maintenance & Repairs

Key Features:

  • All in one machine for ARC, MIG and TIG
  • 200A welding power for up to 12mm steel thickness
  • Only 13kg super lightweight, compact and portable
  • Latest IGBT inverter technology for the best results
  • Inductance adjustment for precise weld control
  • Optional spool gun available for aluminium and silicon bronze
  • MIG 60% duty cycle @160A, ARC 60% duty cycle @ 130A
  • 230V single phase on a 15A plug

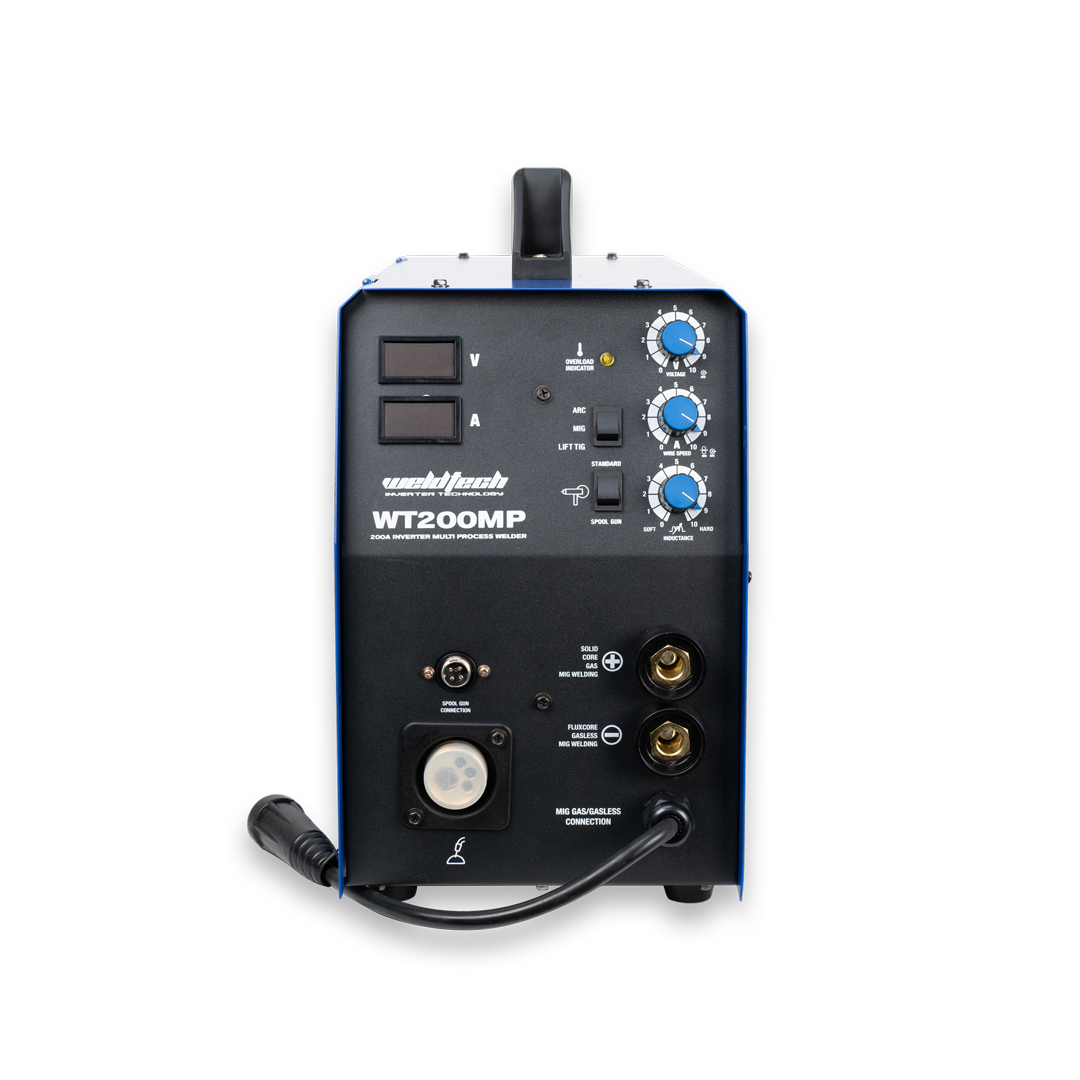

  • Live digital displays for accurate feedback of welding output
  • Stepless voltage and wire feed control for optimum weld control
  • Lift TIG with optional TIG torch

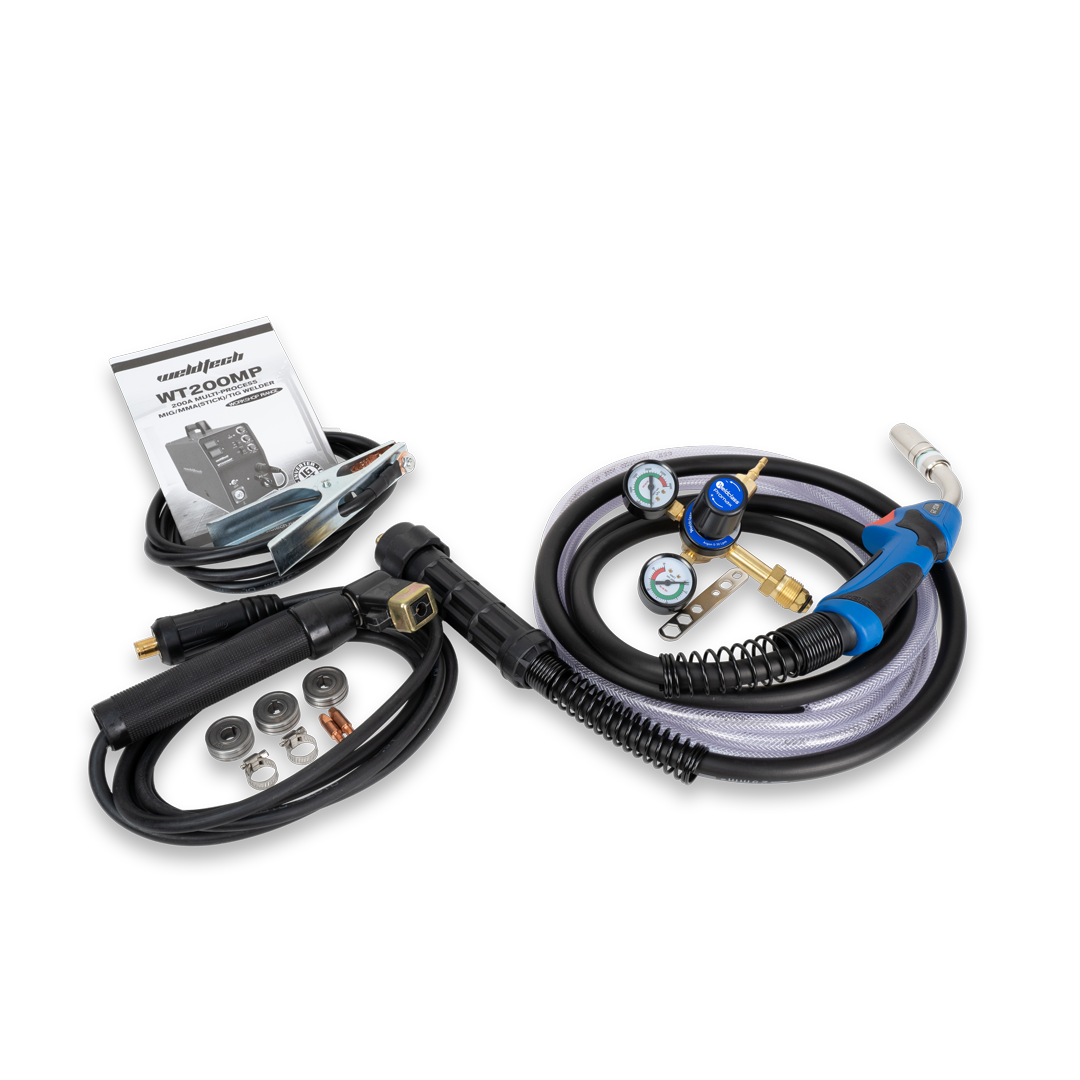

  • 3m Binzel Euro Connect MIG torch
  • Exceptional results on gasless welding!
Resources

Downloads

Overview

Specifications

Input Power Supply Tolerance / 170V-265V AC
Power Input / 230V AC 15A 50/60Hz
Max Inpurt Current / 29.4A
Generator Capacity / 7kVA
Mig Voltage Output / 15V-24V
Mig Current output / 40A-200A
Mig Duty Circle / 200A@ 25% 160A@60%, 120A @ 100%
MMA/TIG Current Output / 30A-170A
MMA/TIG Duty Cycle / 170A@25%, 130A@60%, 100A@100%
Insulation Class / IP21
Weight / 13kg
Dimention / 485x220x390mm
Power Efficiency / 0.85
Power Factor / 0.83
Post Gas Flow Time / 2s
MIG Wire Spool Size / D200mm/D300mm 5KG/15KG
Wire Feeding Speed / 2-15 m/minute
Your Questions Answered

FAQ's

Helpful Resources

Knowledge Hub

Putting the Weldtech WT200MP to the Test at Central Engineering

 25/03/2024 / Welding Equipment

Over the years, the Weldtech 200MP has proven an indispensable asset in engineering workshops. Its capacity to smoothly transition between different welding types and its compatibility with various materials epitomises the modern, multi-faceted approach to industrial craftsmanship. The tool's durability and efficiency underscore its pivotal role in maintaining workshop standards and facilitating growth in engineering practices.

Read More
What our customers think

Customer Reviews

4.0 / 1 review(s)
5 star
0 %
4 star
100 %
3 star
0 %
2 star
0 %
1 star
0 %
WRITE A REVIEW
See All Reviews
Jack of all Trades
Master of one.
What I mean by this is yes it is a Multi process machine but the real focus is one MIG. Reading the manual confirms this with most of the information dedicated to the MIG process. I've owned this welder for over 6 years now and mainly used it as a MIG welder, recently I tried running it as a stick welder and here's what I found. My biggest grip is when MMA welding (ARC) you have no idea what AMPS you have the machine set too. All it displays is the open circuit voltage until you strike an arc. Not very useful when welding solo unless you want to risk arc eye. I resorted to filming the display while welding on a test piece to get it set.
A chart in the manual with approximate current knob to amps would have been real useful. I haven't tried TIG mode with it  but the above  would be true with this process as well.
Aaron winter
A product manager responded to this review:
Thank you for your review Aaron. The controls are definitely simple compared to recent models in other ranges, for example. This does allow the manufacturer (Weldtech) to keep costs down and ensure this welder remains an affordable option for many. It's the old trade off of Features vs Price. Thanks for the feedback on the chart, we will pass that back to the manufacturer.
