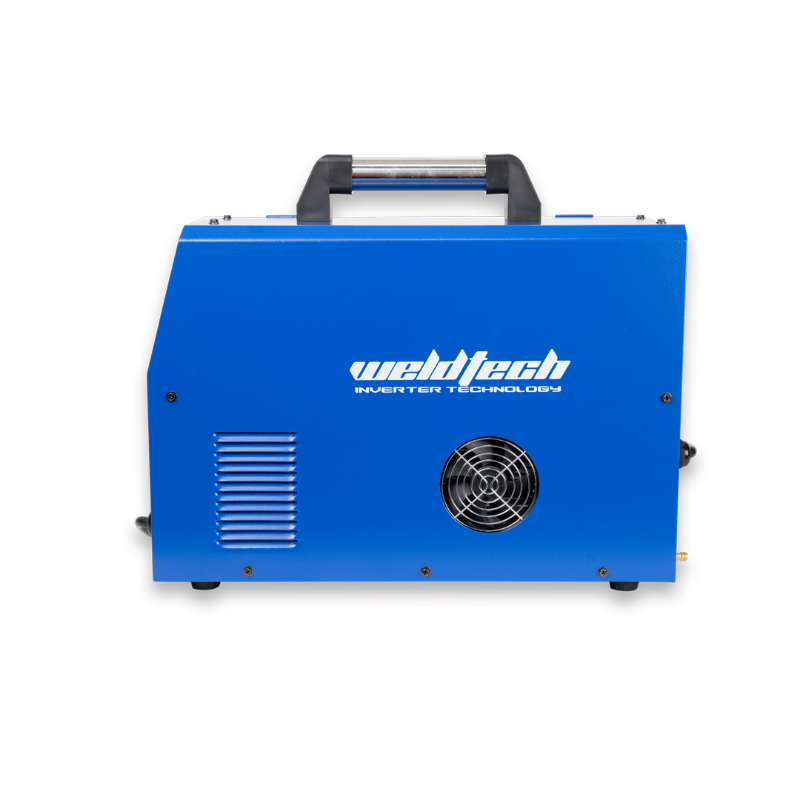

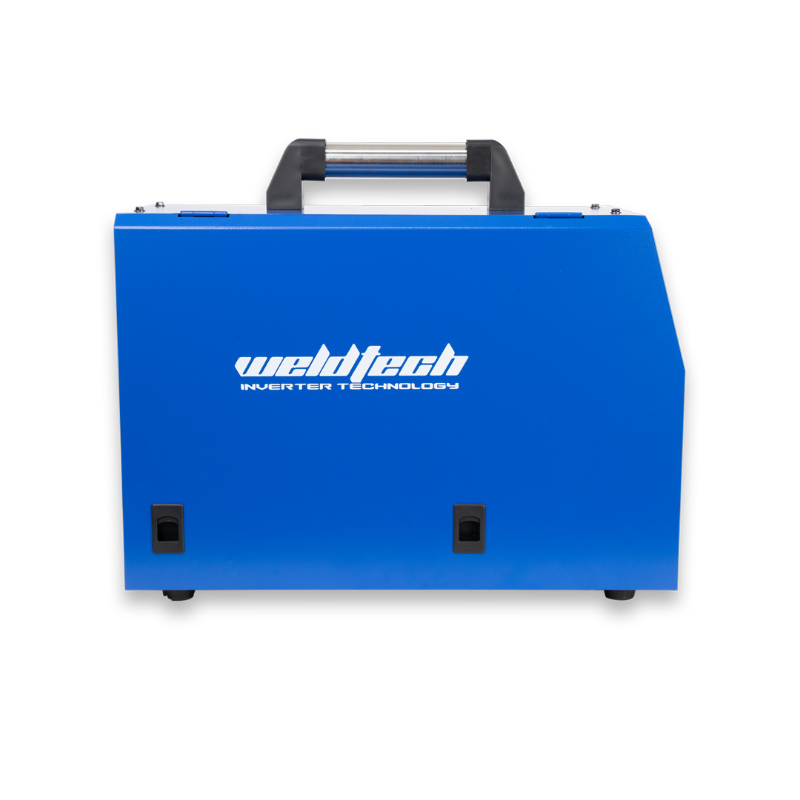

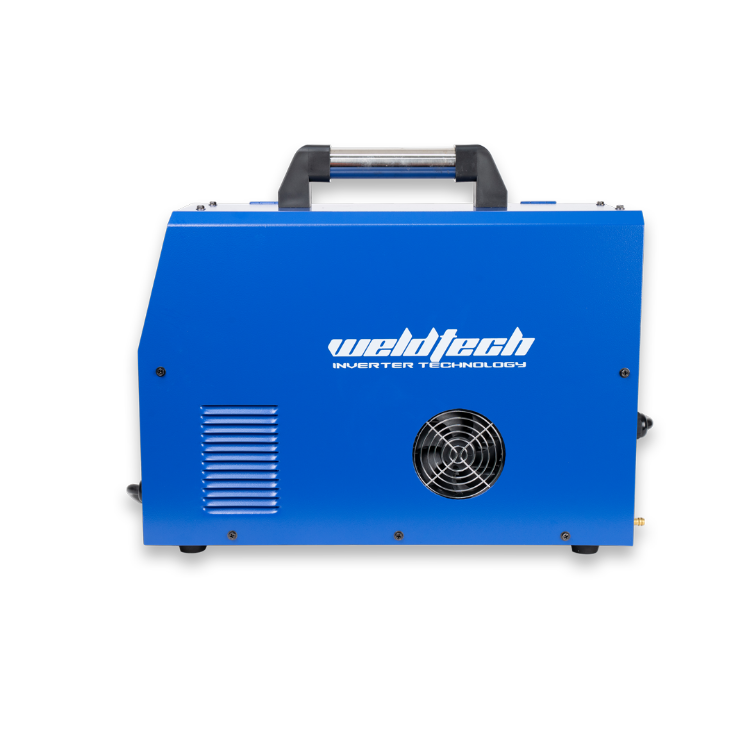

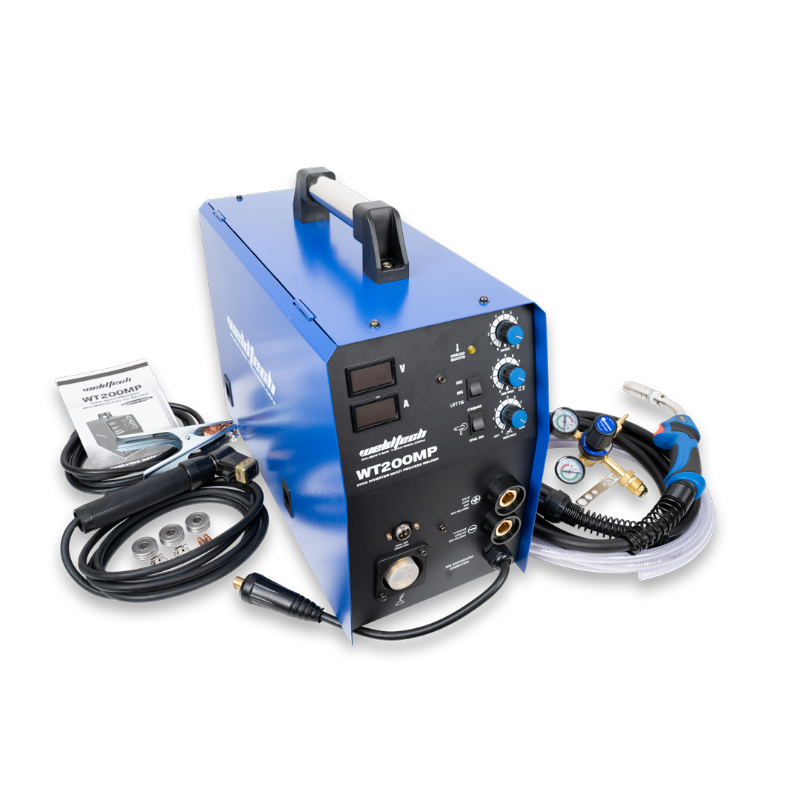

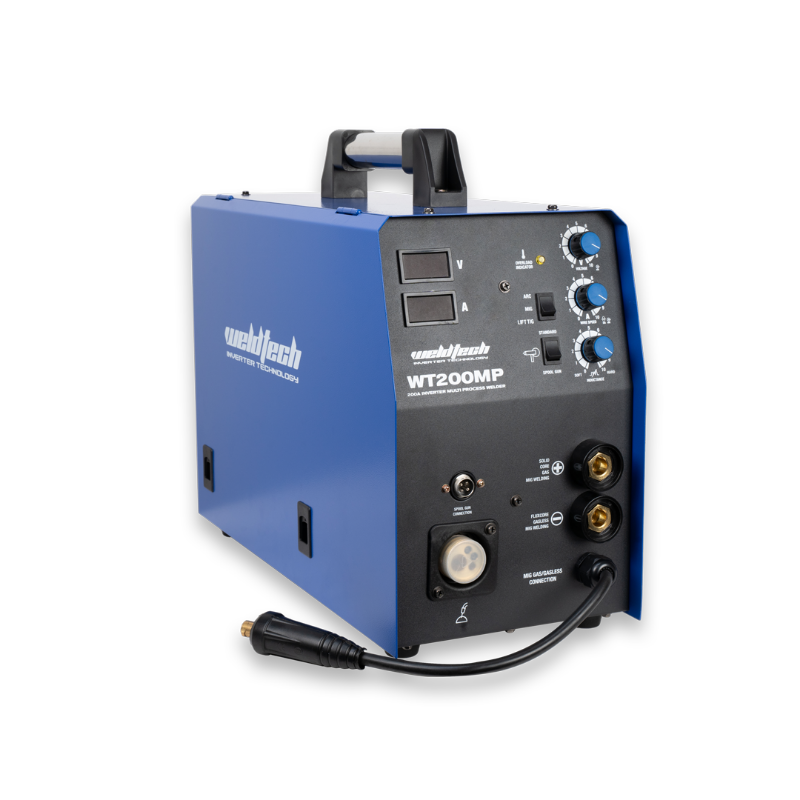

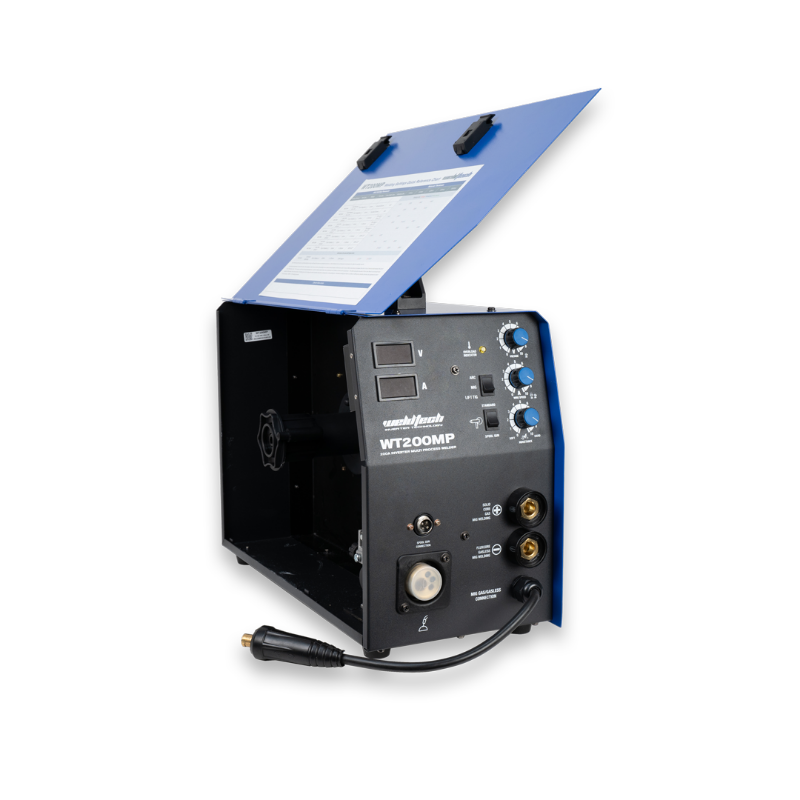

WT200MP Inverter Multi-Process Welder

Overview

Product Overview

Cutting edge IGBT Inverter Technology with MIG, TIG and ARC processes available. Produces exceptionally good welding results.

The Weldtech product range is subject to stringent quality control and designed and manufactured to NZ & Australian standards.

A common use of Weldtech products include:

Light Engineering
Automotive
Home/ Hobby Engineering
Farming
Maintenance & Repairs

Key Features:

All in one machine for ARC, MIG and TIG
200A welding power for up to 12mm steel thickness
Only 13kg super lightweight, compact and portable
Latest IGBT inverter technology for the best results
Inductance adjustment for precise weld control
Optional spool gun available for aluminium and silicon bronze
MIG 60% duty cycle @160A, ARC 60% duty cycle @ 130A
230V single phase on a 15A plug

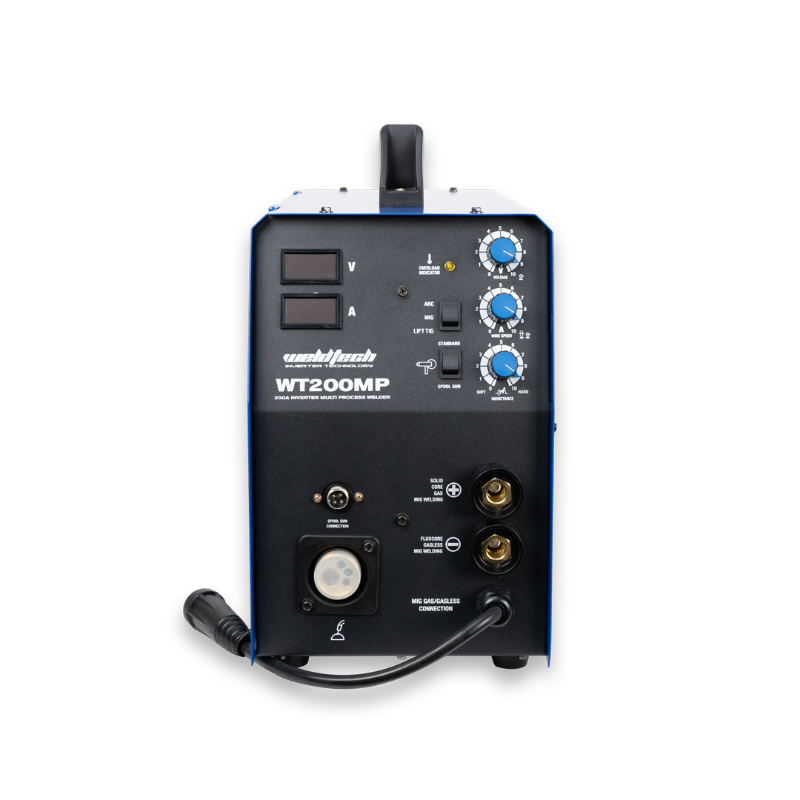

Live digital displays for accurate feedback of welding output
Stepless voltage and wire feed control for optimum weld control
Lift TIG with optional TIG torch

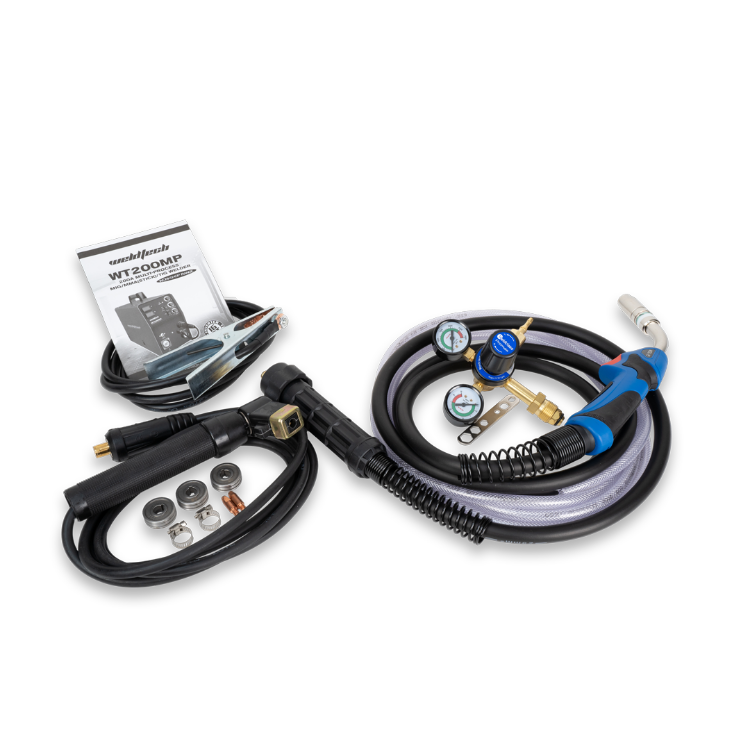

3m Binzel Euro Connect MIG torch
Exceptional results on gasless welding!

Resources

Downloads

Overview

Specifications

Input Power Supply Tolerance / 170V-265V AC

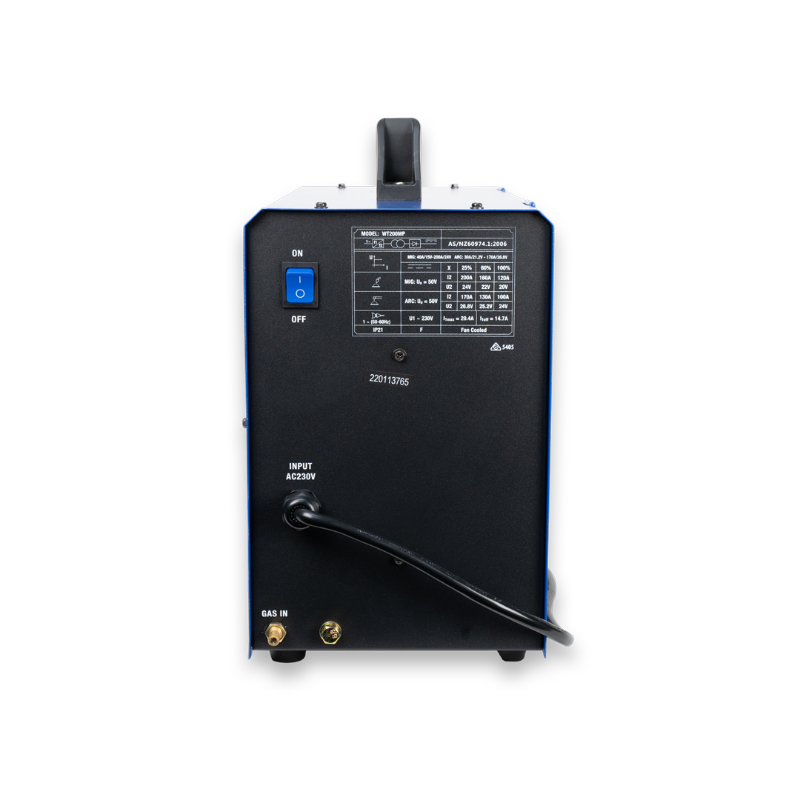

Power Input / 230V AC 15A 50/60Hz
Max Inpurt Current / 29.4A
Generator Capacity / 7kVA
Mig Voltage Output / 15V-24V
Mig Current output / 40A-200A
Mig Duty Circle / 200A@ 25% 160A@60%, 120A @ 100%
MMA/TIG Current Output / 30A-170A
MMA/TIG Duty Cycle / 170A@25%, 130A@60%, 100A@100%
Insulation Class / IP21
Weight / 13kg
Dimention / 485x220x390mm
Power Efficiency / 0.85
Power Factor / 0.83
Post Gas Flow Time / 2s

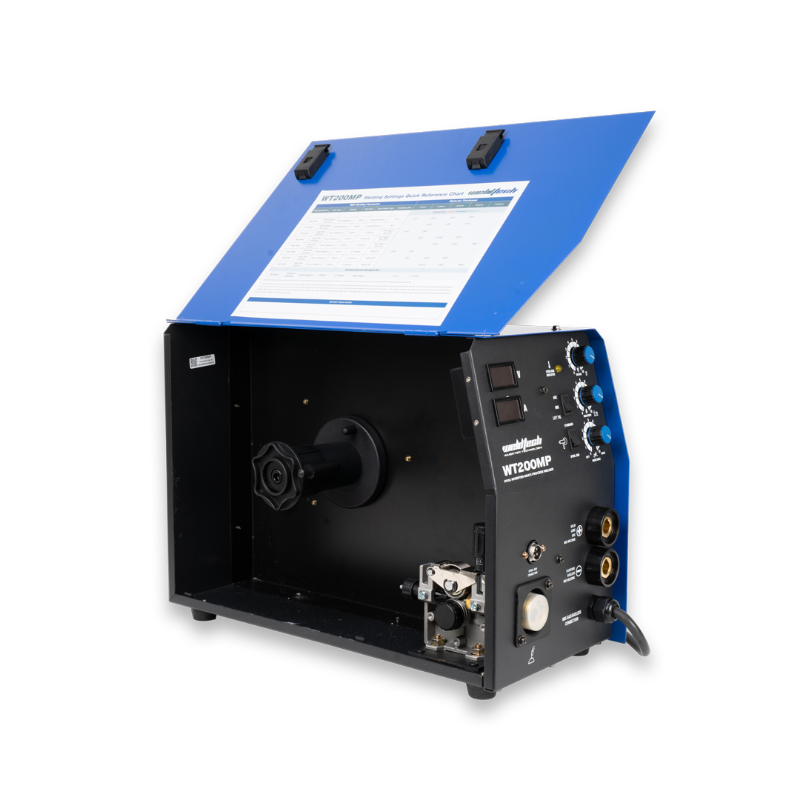

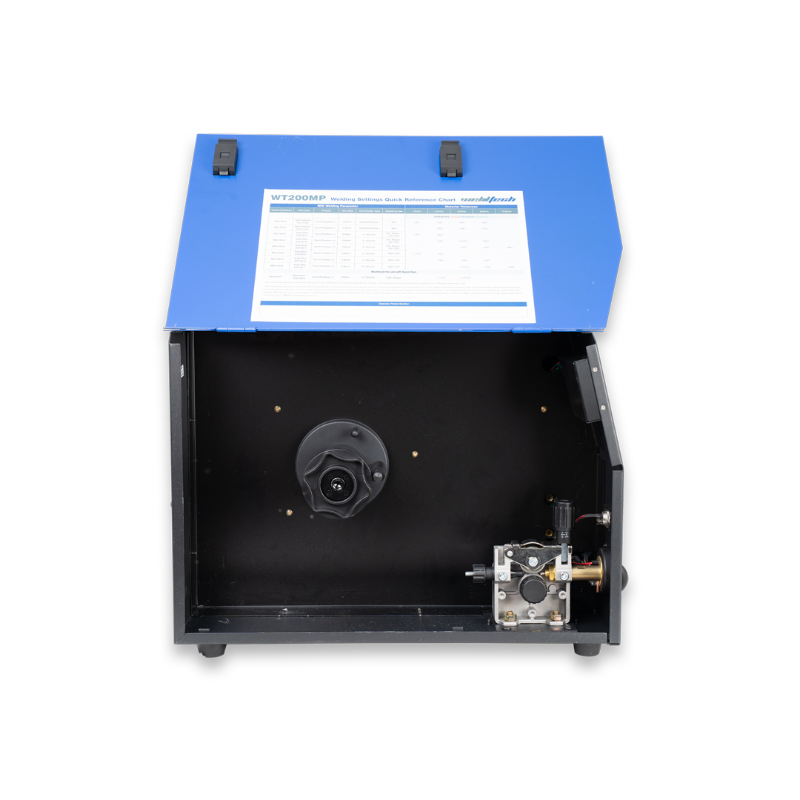

MIG Wire Spool Size / D200mm/D300mm 5KG/15KG
Wire Feeding Speed / 2-15 m/minute
