Weldtech WT160MP 160A MIG/TIG/ARC Inverter Welder

Free Shipping
Weldtech /
SKU: WT160MP
WT160MP Weldtech 160A MIG/TIG/ARC Inverter Welder
$ 515 .00 Excl GST
$ 592.25 Incl GST

or 4 interest-free payments of $148.06 with

afterpay-icon afterpay-icon
Overview

Product Overview

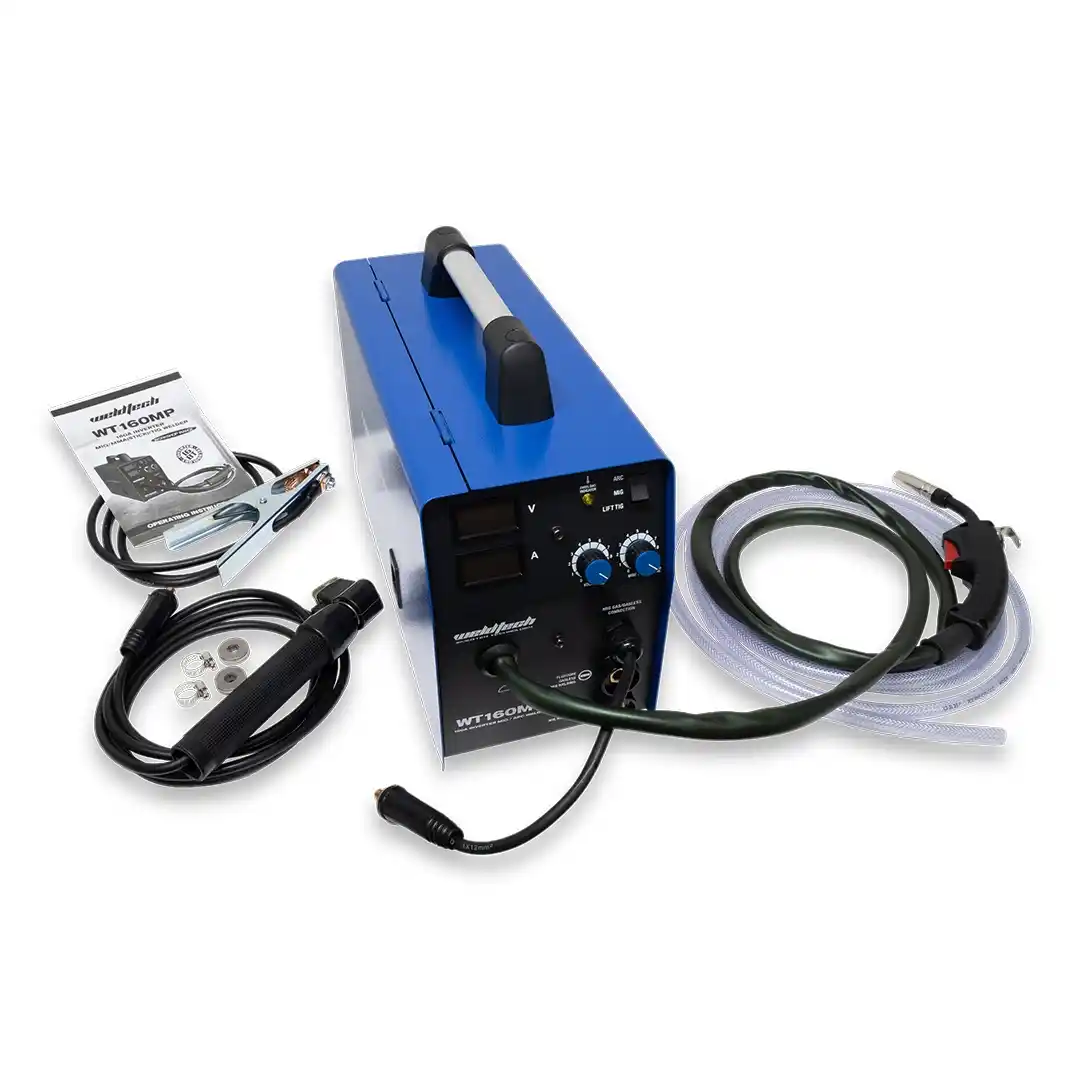

Weldtech WT160MP 160A MIG/TIG/ARC Inverter Welder

The WT160MP is an inverter welder & has far more weld pool control than the small transformer type mig welders. The stepless voltage & wire feed controls allow the operator to make very fine adjustments to run perfect welds every time.

POWERFUL - 160A welding power up to 8mm steel thickness
PORTABLE - Only 9Kg - super light weight and portable
RELIABLE - Cutting edge Inverter Technology ensures ultimate reliability


 Key Features

- ARC and MIG function for variety of jobs (TIG Optional)

- Stepless voltage and wire speed control

- 60% duty cycle @ 130A

- Lightweight and robust construction - only 9kg

- Overload protection for increased reliability

- 1 year commercial Warranty

- Tig (optional) Requires torch & regulator

- Comes with: MB15-2DC Mig Torch, Arc Welding Lead & Earth Lead. V Groove Drive Rollers : 0.6 & 0.8mm (For solid wires shielded with gas) and Knurled Drive Rollers: 0.8, 0.9 & 1.0mm (for flux core / gasless mig wire)



Overview

Specifications

Power Input / 230V AC 10A 50/60Hz
Max Inpurt Current / 21.5A
Generator Capacity / 5 KVA
Mig Voltage Output / 15V-22 V
Mig Current output / 40A-160A
Mig Duty Circle / 160A@ 20% 130A@60%, 100A @ 100%
MMA/TIG Current Output / 30A-140A
MMA/TIG Duty Cycle / 140A@25%, 120A@60%, 100A@100%
Insulation Class / IP21
Weight / 9kg
Dimention / 395x165x290mm
Power Efficiency / 0.85
Power Factor / 0.83
Wire Feeding Speed / 2-11 m/minute
