Strata EziMig185C 180A Synergic Mig/MMA Welder

Free Shipping
Strata /
SKU: 33925
$ 1,145 .00 Excl GST
$ 1,316.75 Incl GST

or 4 interest-free payments of $329.19 with

afterpay-icon afterpay-icon
Overview

Product Overview

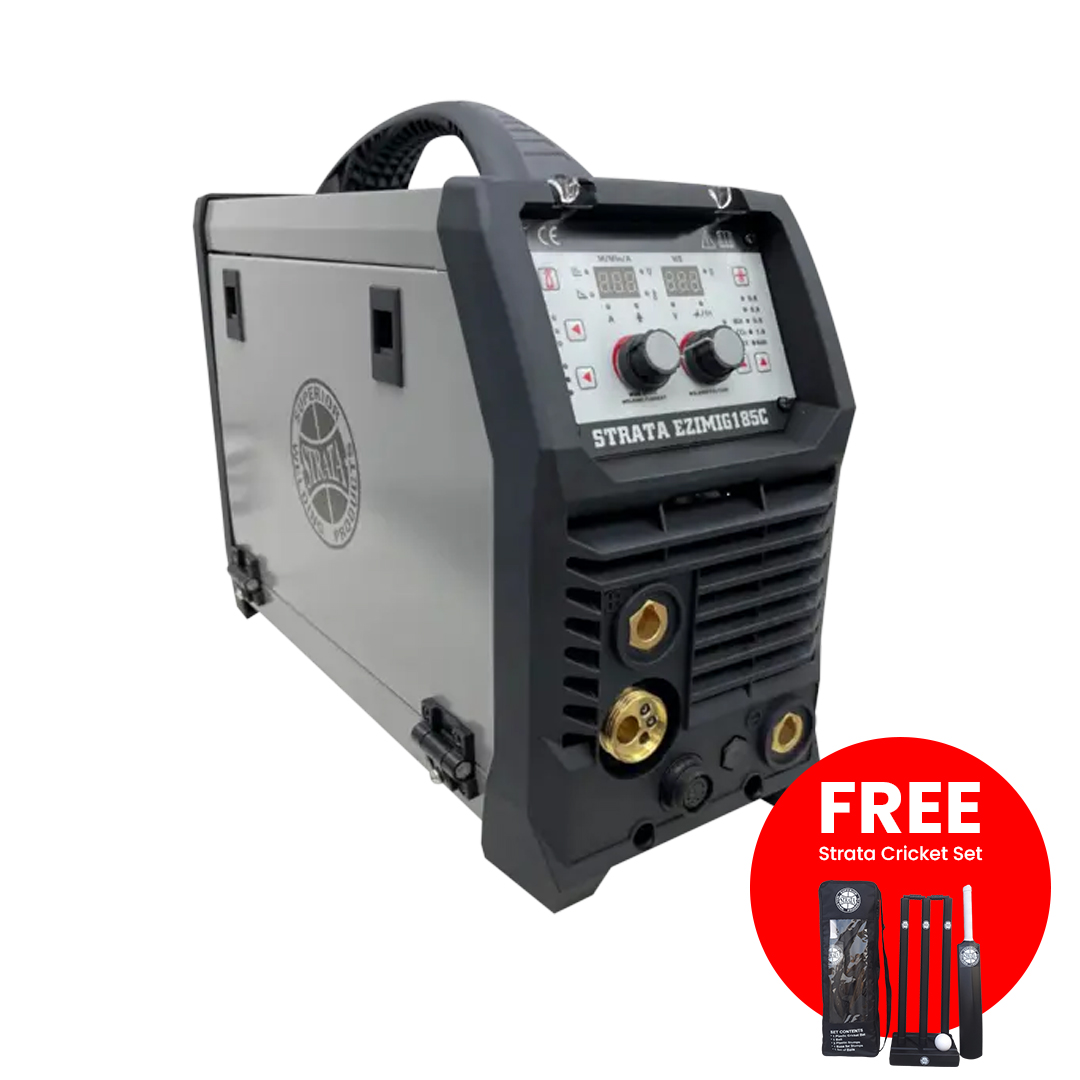

Strata EziMig185C 180A Synergic Mig/MMA Welder

Ultra compact and easy to use, the EZIMIG 185C multi-process welder is a must have for today's industrial professionals. With the latest IGBT inverter technology, extreme stress testing to 440V and insulation class IP23, this machine is built to last.

Key Features

  • IGBT Inverter Technology for smooth & stable welding welding output  and increased reliability
  • Synergic MIG operation with Parameter Save/ Recall Intuitive and simple setting of controls for consistent weld results
  • MIG Inductance & Burnback Control for greater control for MIG welding operation
  • Spool Gun Connection w/ Remote Control for effective results welding with soft wires such as Aluminium and MIG brazing with bronze wires.
  • Lightweight & Compact Design, ideal for portable applications
  • Adjustable MMA Hot Start & Arc Force Functions
  • Industrial IP23 casing with front panel protection for great resistance to damage, moisture and corrosion
  • Lift TIG Welding Operation ideal for precision and aesthetically important welding jobs
  • Dual Digital Display Meters allow for accurate pre-setting and feedback of welding parameters & output.
  • 2T/4T/ Spot Weld Trigger Control
  • Metal Chassis Wire Feeder Smooth and consistent wire feed.
  • Digital Microprocessor Control System for Superior & Dynamic Arc Characteristics
  • Extreme stress testing to 440V in production for rugged reliability.
  • Reversible Polarity MIG Welding Operation Suitable for gas & gasless MIG welding.
  • High Quality & Over Specified Electronic Components for Superior Durability & Reliability
  • Intelligent Protection System with temperature, voltage and current sensors for increased reliability & safety
  • Generator Friendly - Designed to work with generator power supply and protect from power surges.
  • Quick connect inlet gas fitting
  • Includes: MB25 Mig Torch, Earth & Arc Lead Set, Argon Regulator, CO2 Adaptor, Gas Hose with Quick Connect Fittings, Drive Roller 'V' Groove (0.6-0.8mm & 0.9-1.0mm)
Overview

Specifications

Dimension / 460x190x360mm
Weight / 11kg
Input Power Supply / 230V AC 10A 50/60Hz
Input Power Tolerance / 230+/-10%V
Max Input Current (A) / 26A
MIG Output Voltage / 10V - 26V
MIG Output Current / 40A - 180A
MIG Duty Cycle / 180A@15%, 130A@60%, 100A@100%
MIG Drive Rollers / V Groove: 0.6/0.8 & 0.9/1.0mm, Knurled: 0.8/0.9mm
Wire Spool size / D200 5kg
Wire Speed Range Ipm (M/Min) / 1.5-15m/min
MMA Current Output / 10A - 180A
MMA O/C Voltage / 65V
MMA Duty Cycle / 160A@10%, 130A@60%, 100A@100%
Insulation Class / IP23
Standards / EN60974-1:2012
MMA Rod Size / 1.6 - 5.0mm
Warranty / 24 months* with product registration
Power Efficiency / 85%
Power Factor / 0.65
Generator Capacity / 7KVA
