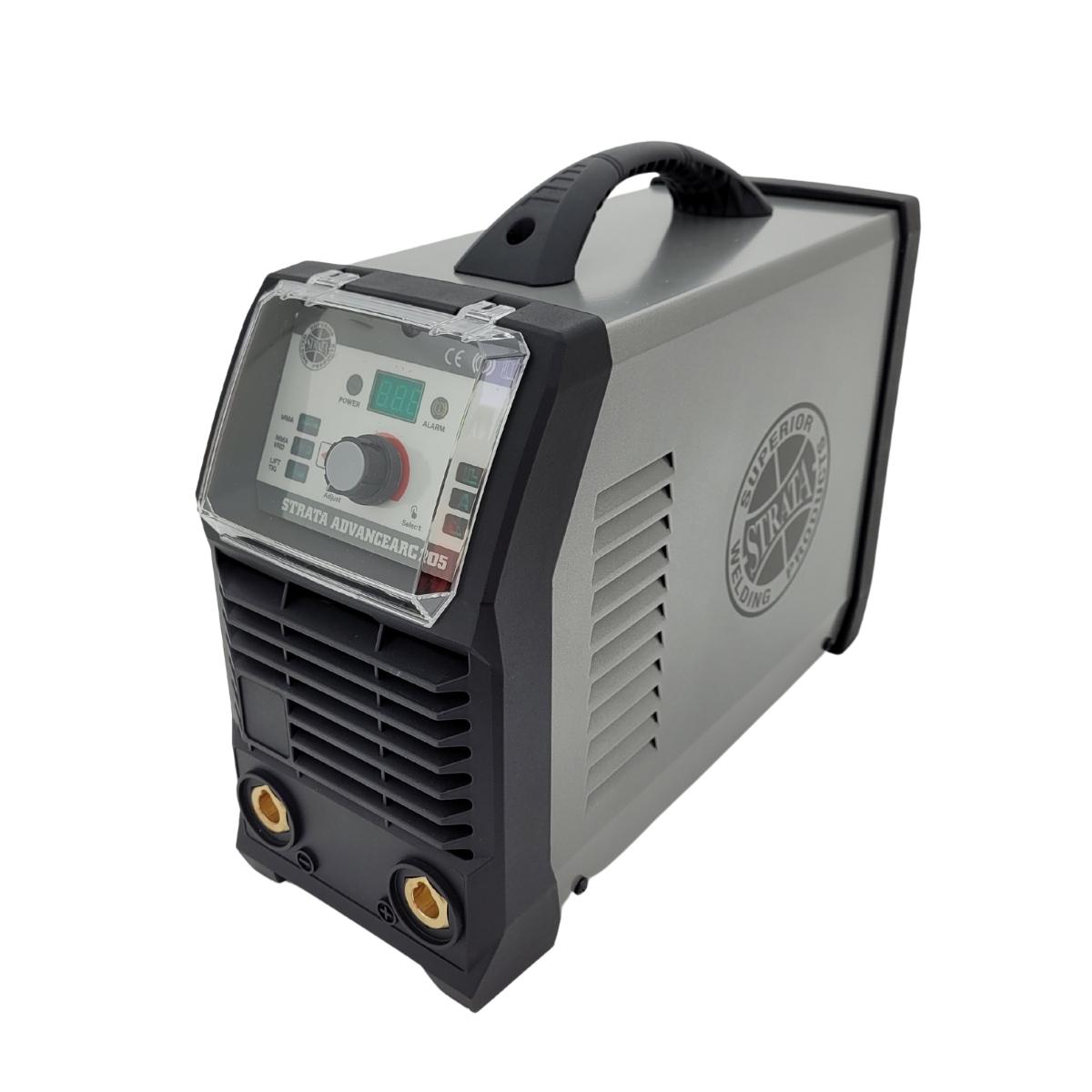

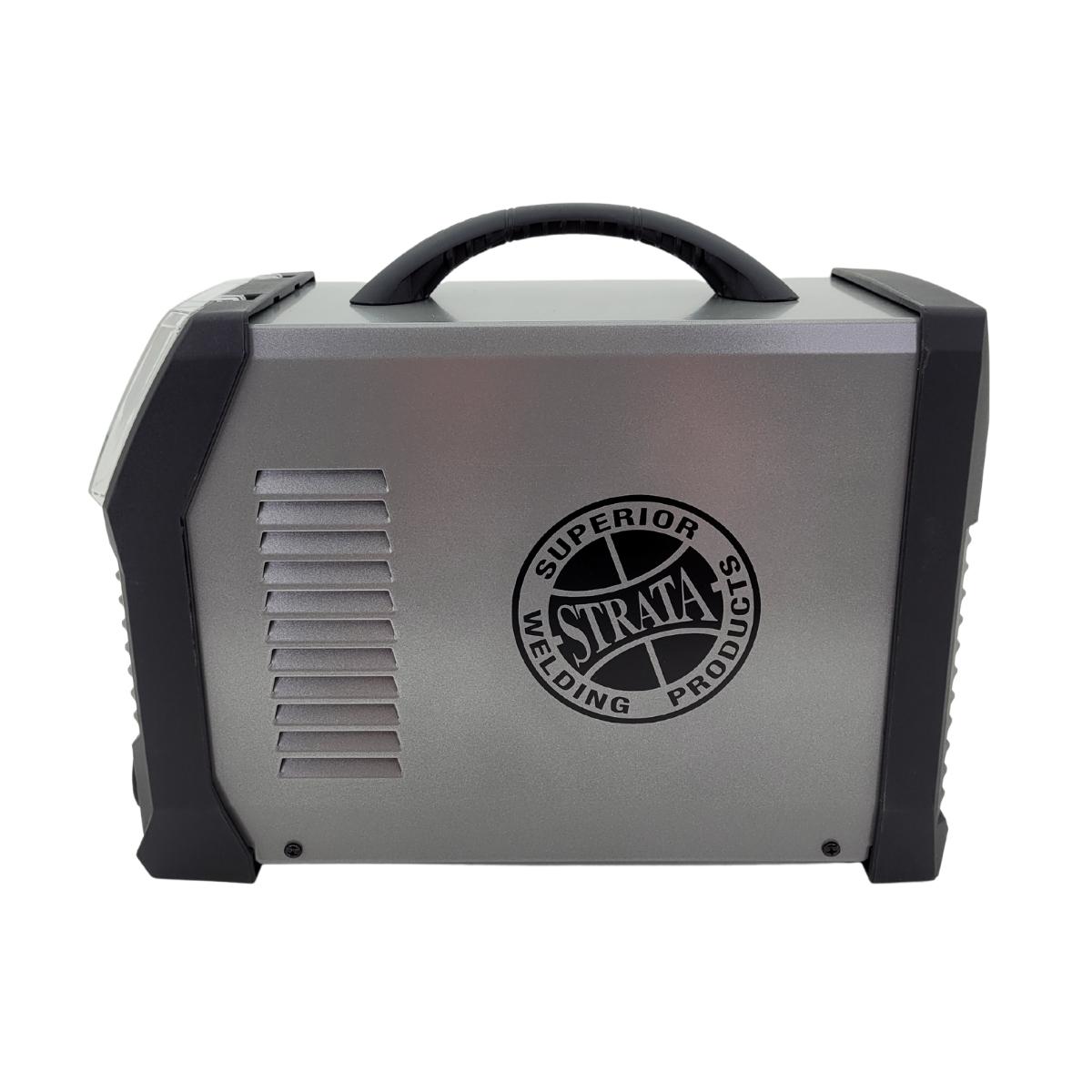

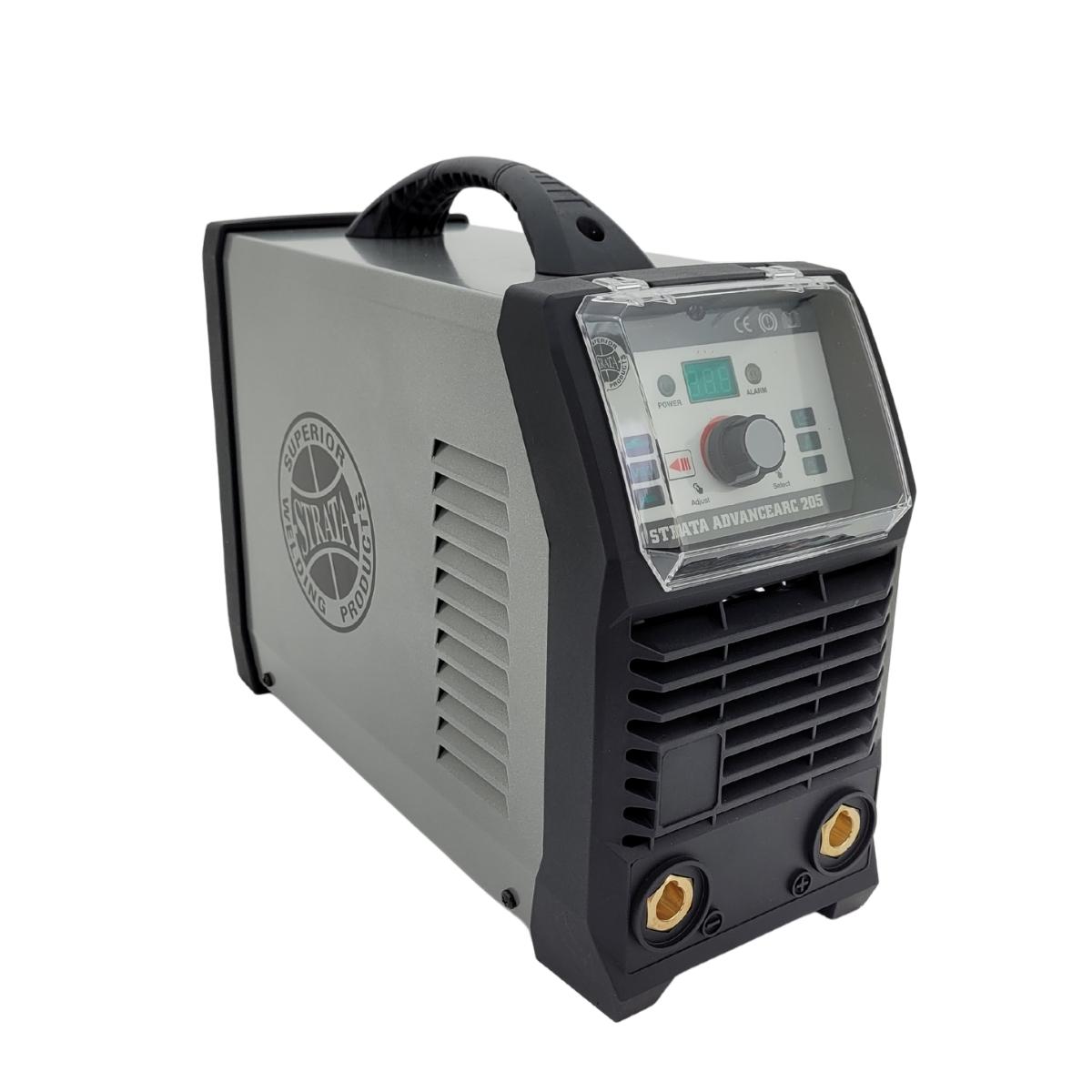

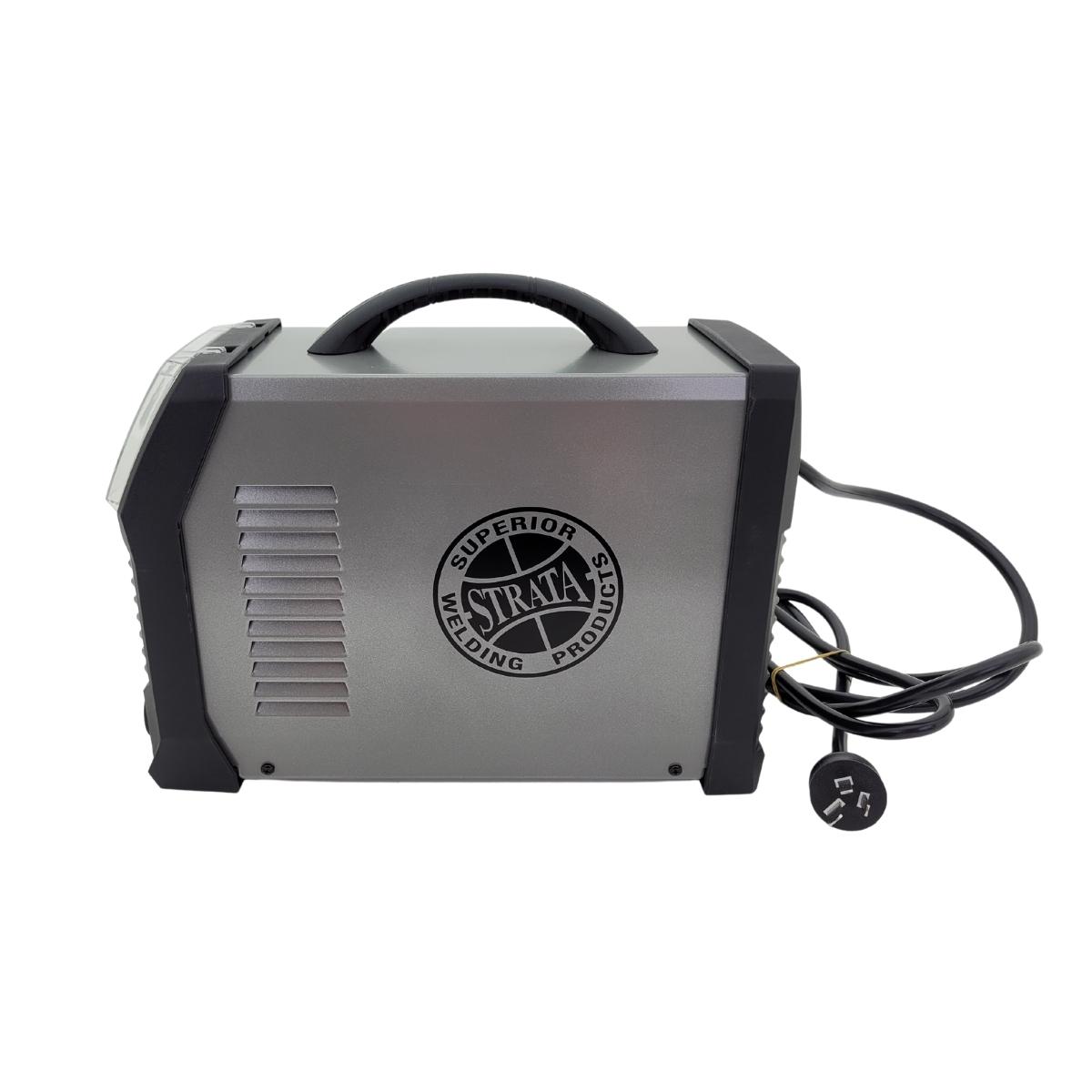

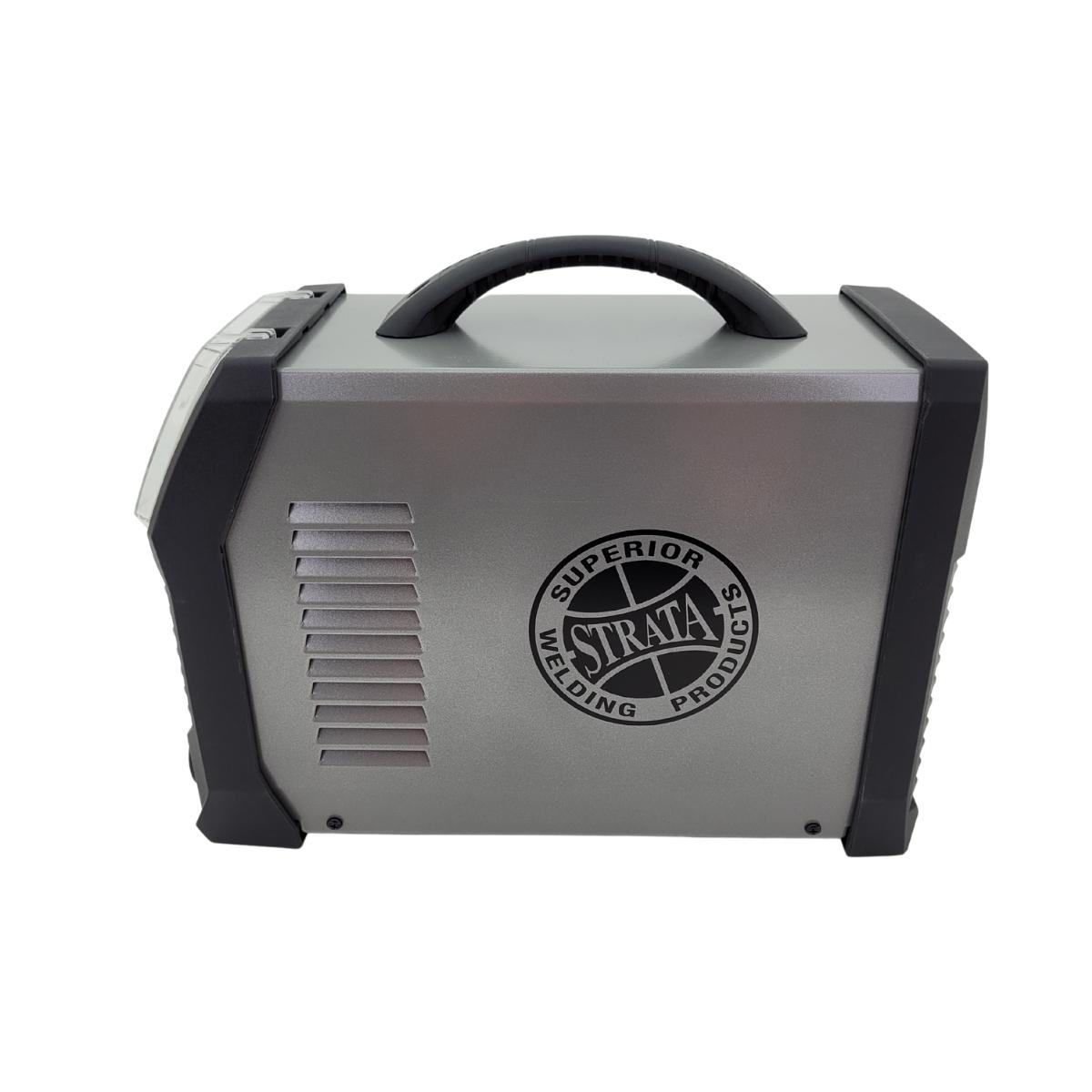

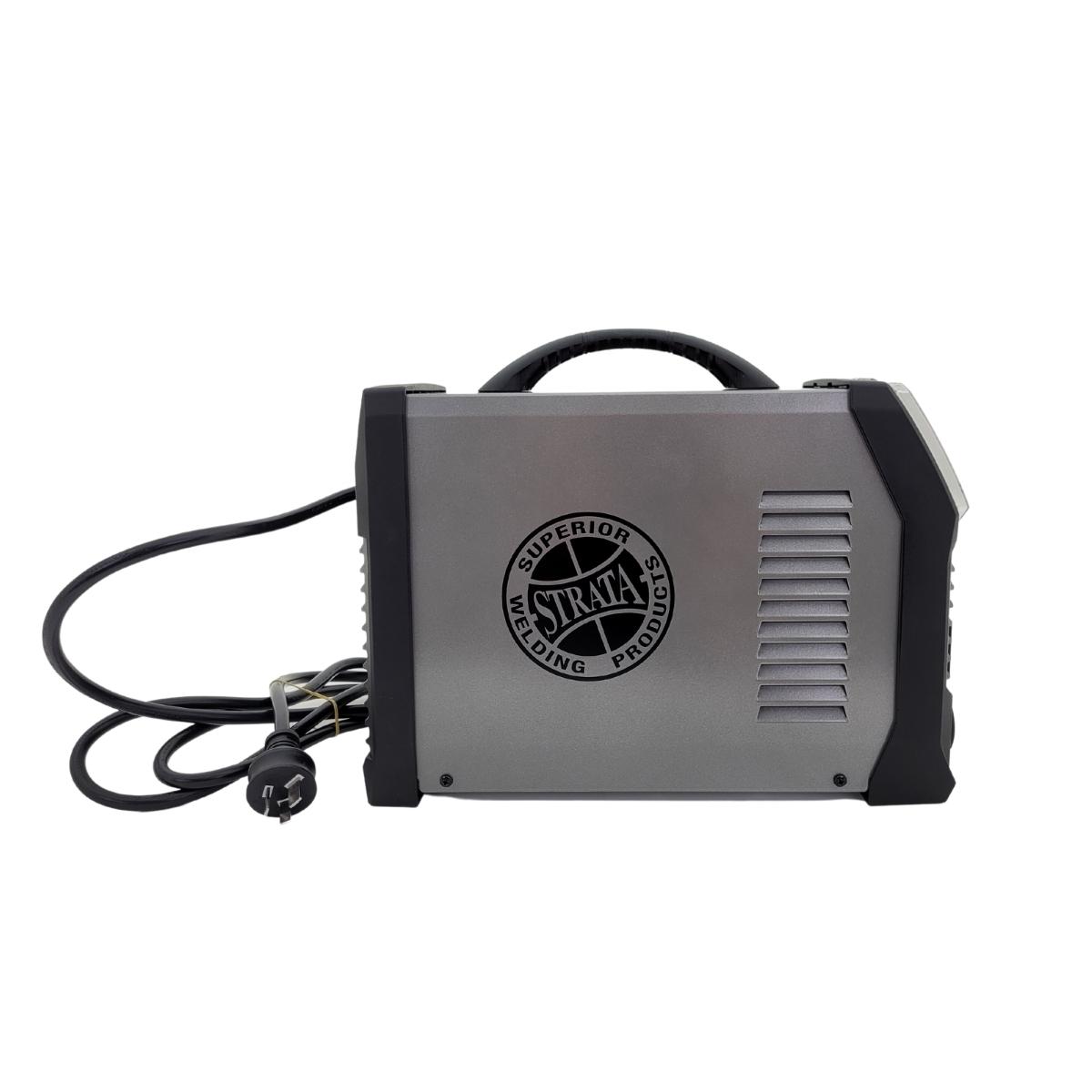

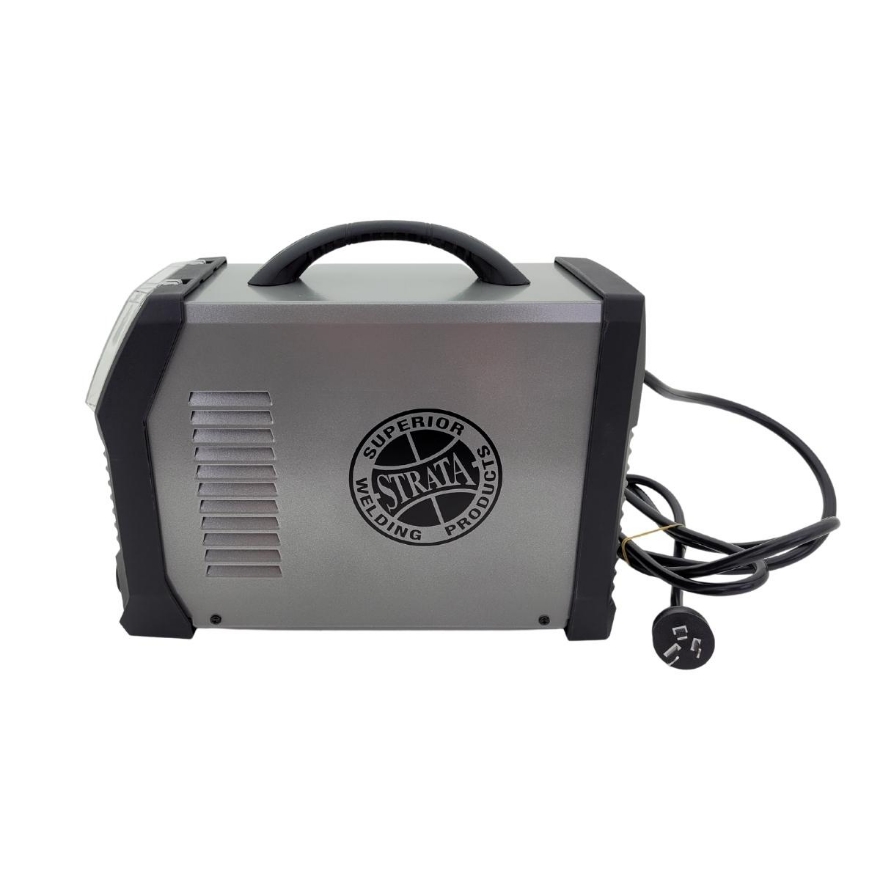

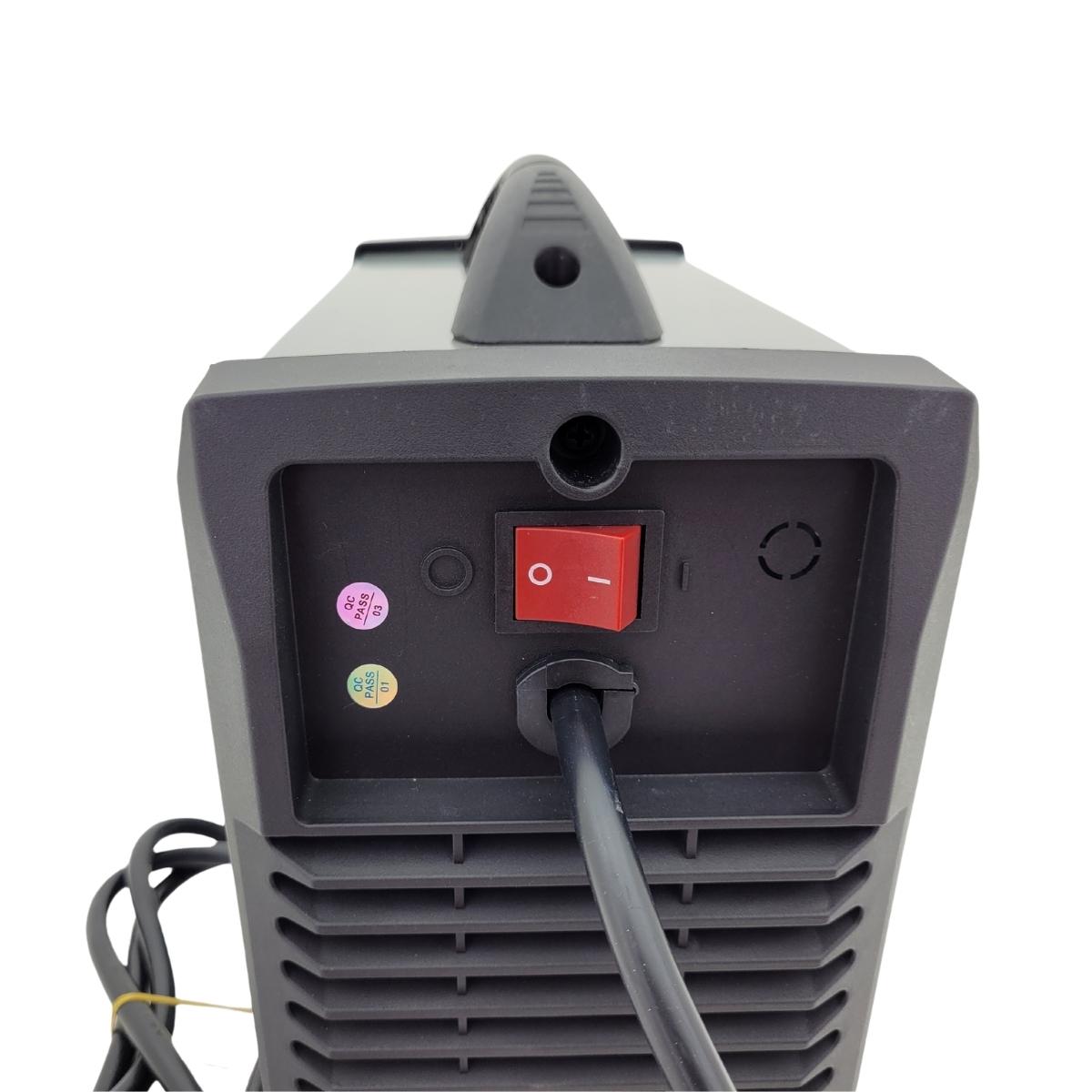

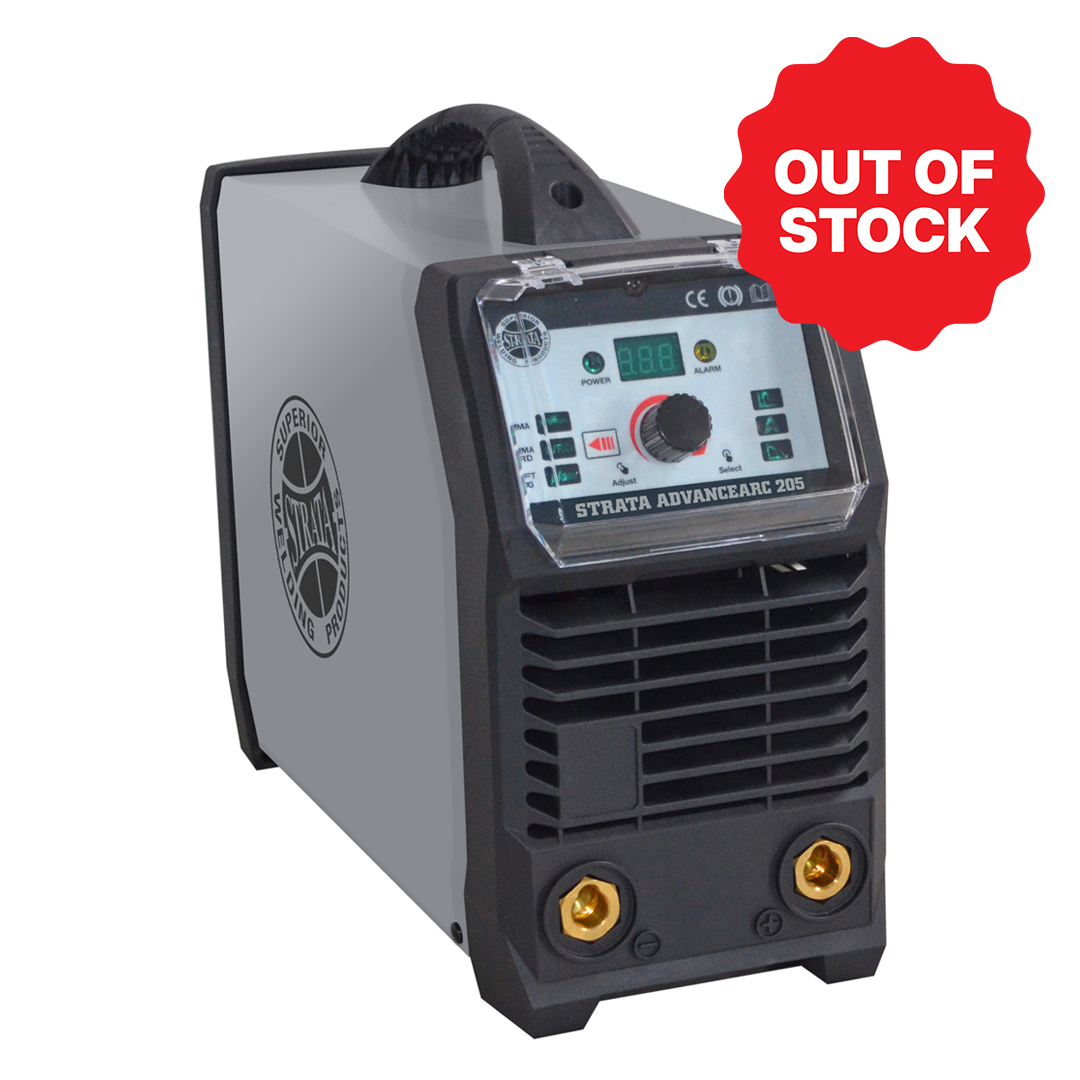

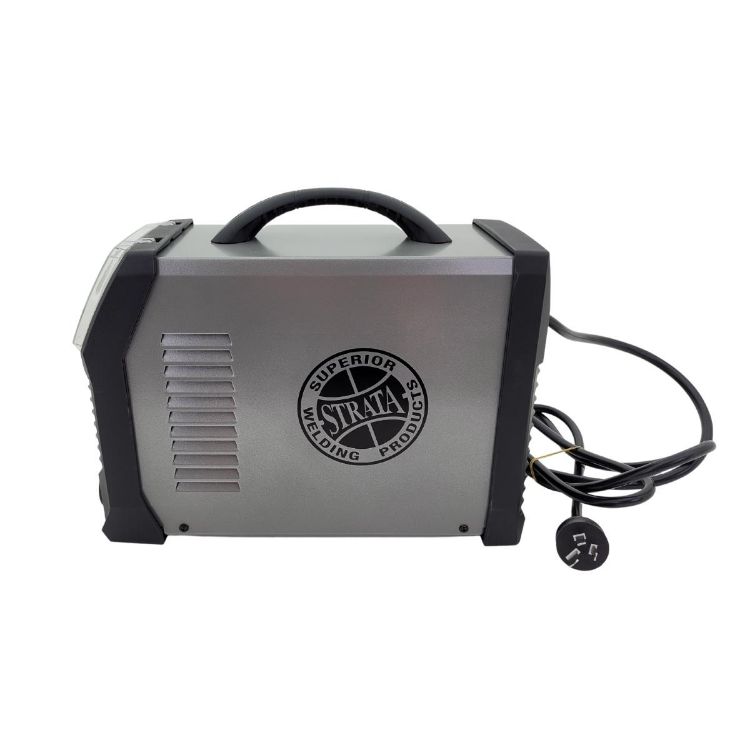

Strata AdvanceArc205 Arc Welder

Be the first to review this product
Free Shipping
strata /
SKU: 22103

Strata AdvanceArc205 DC Inverter 200A MMA/TIG Welder PFC MV with 4M Arc Welding Lead Set. 36 Month Warranty

$ 625 .00 Excl GST
$ 718.75 Incl GST
$ 795 .00
Save 21.38%

or 4 interest-free payments of $179.69 with

afterpay-icon afterpay-icon
Overview

Product Overview

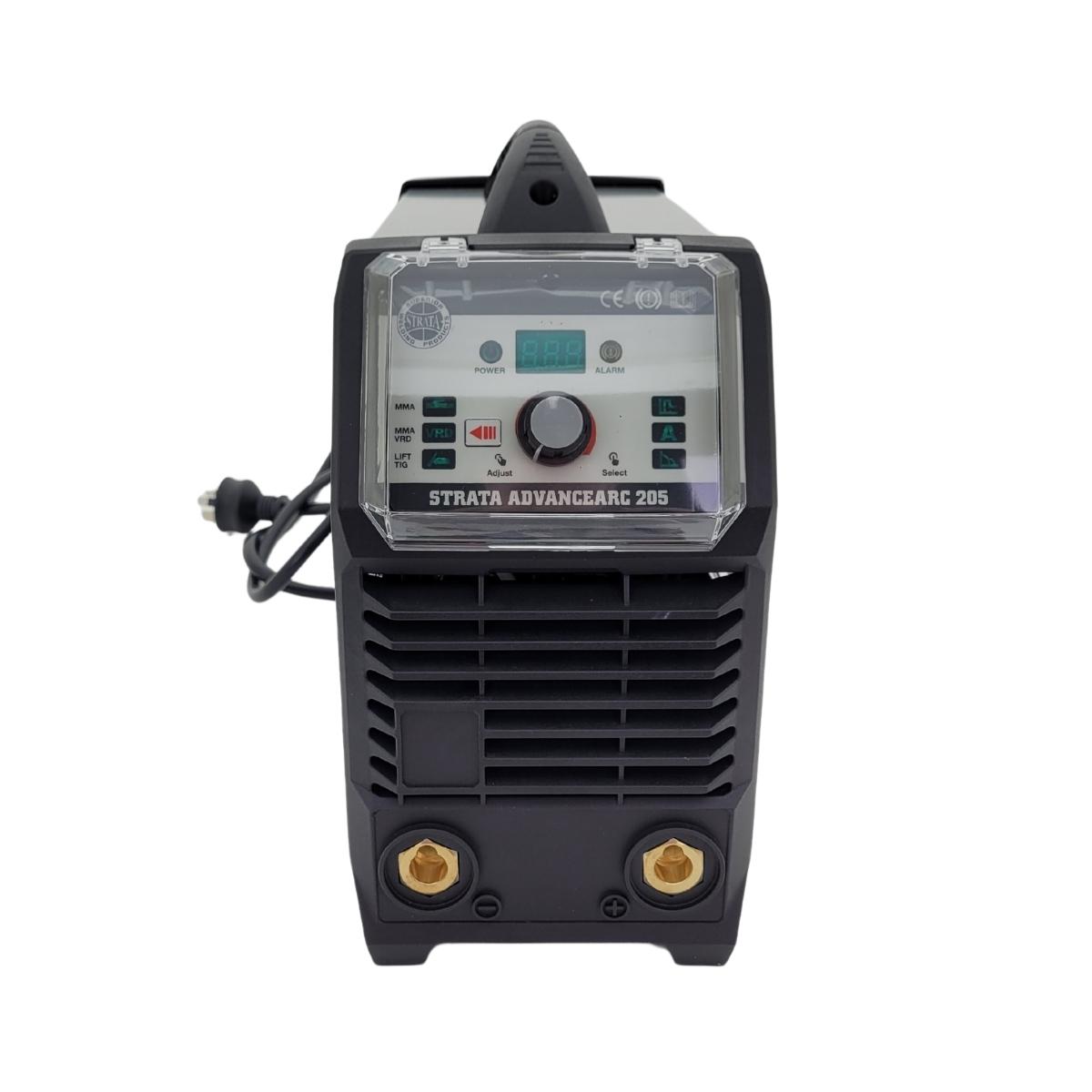

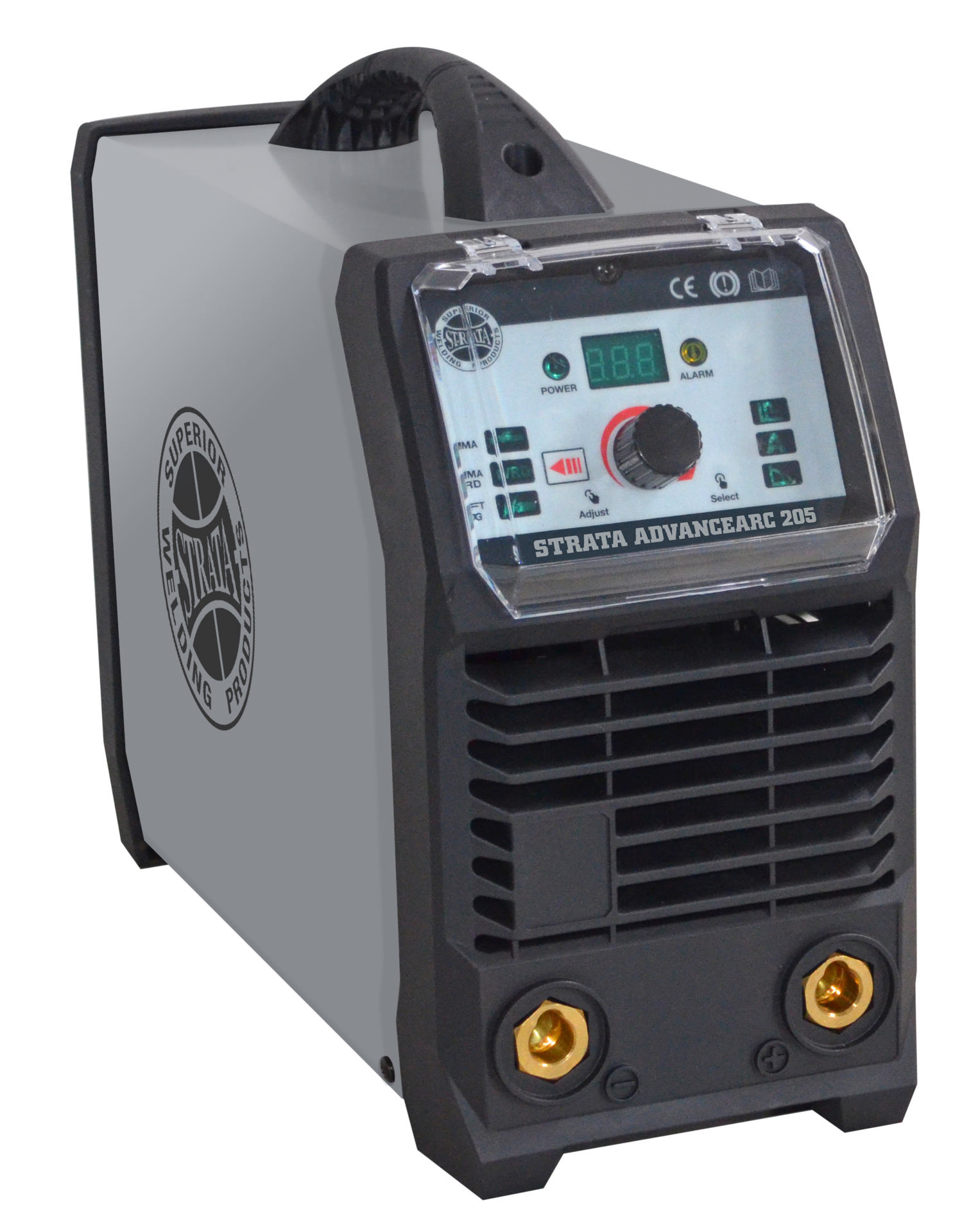

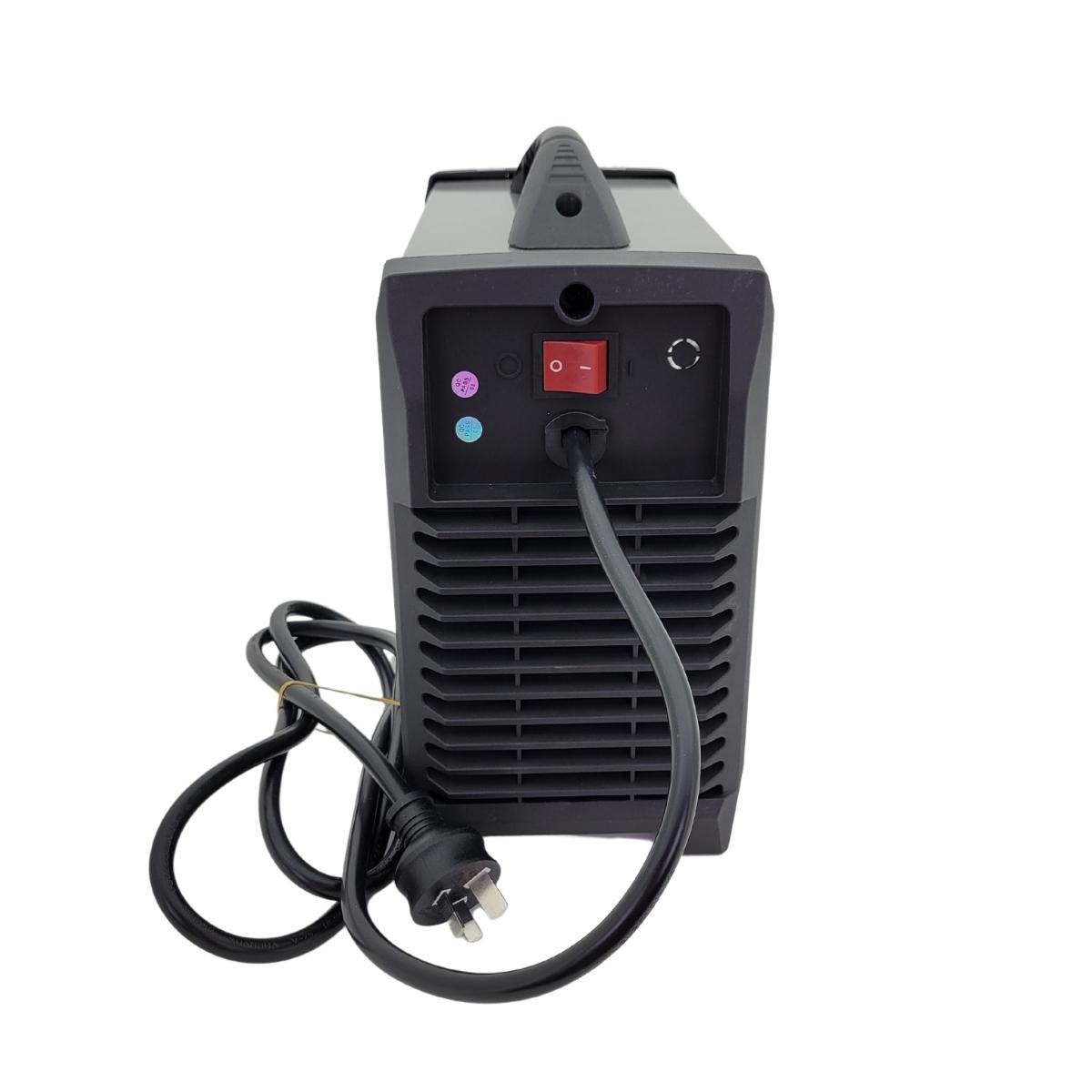

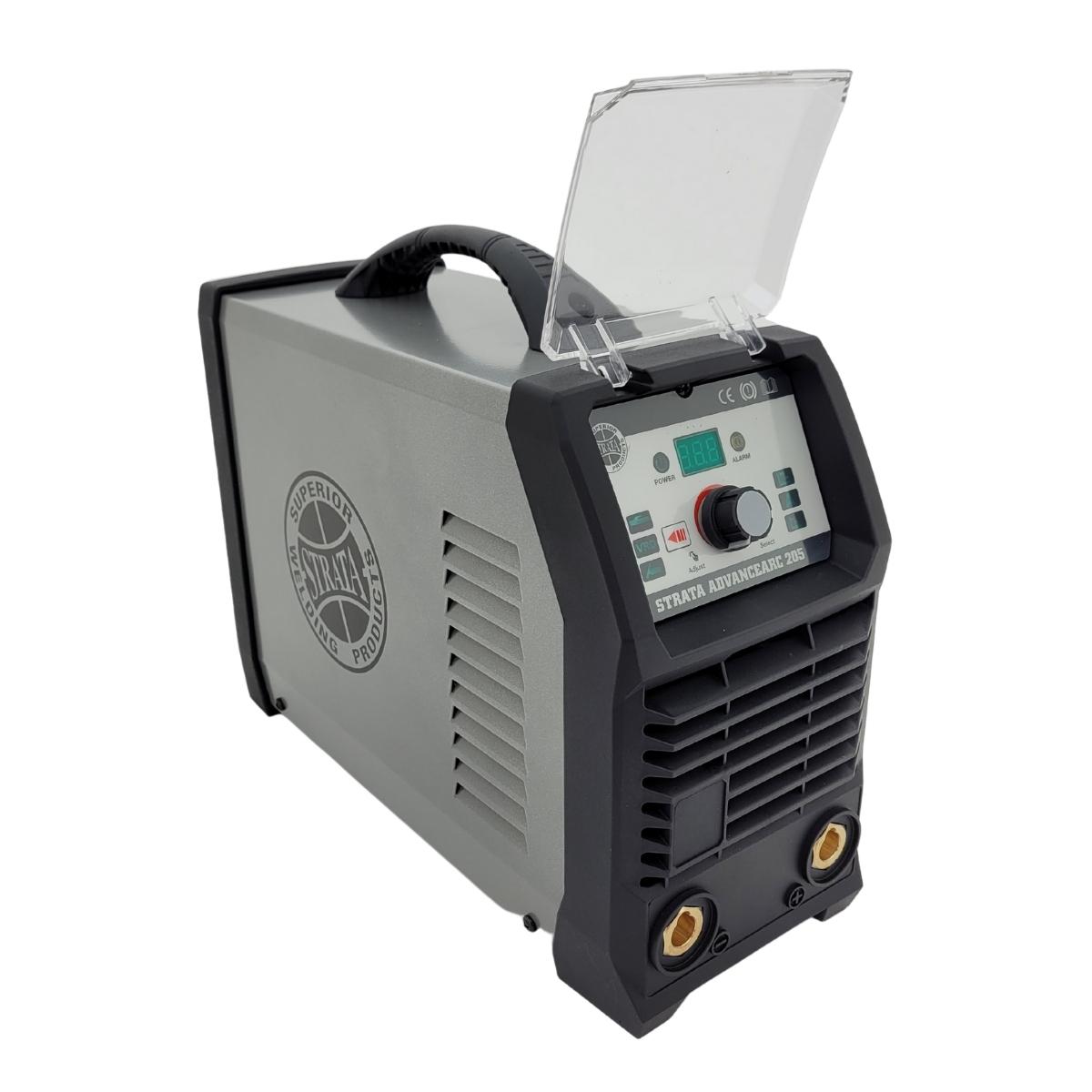

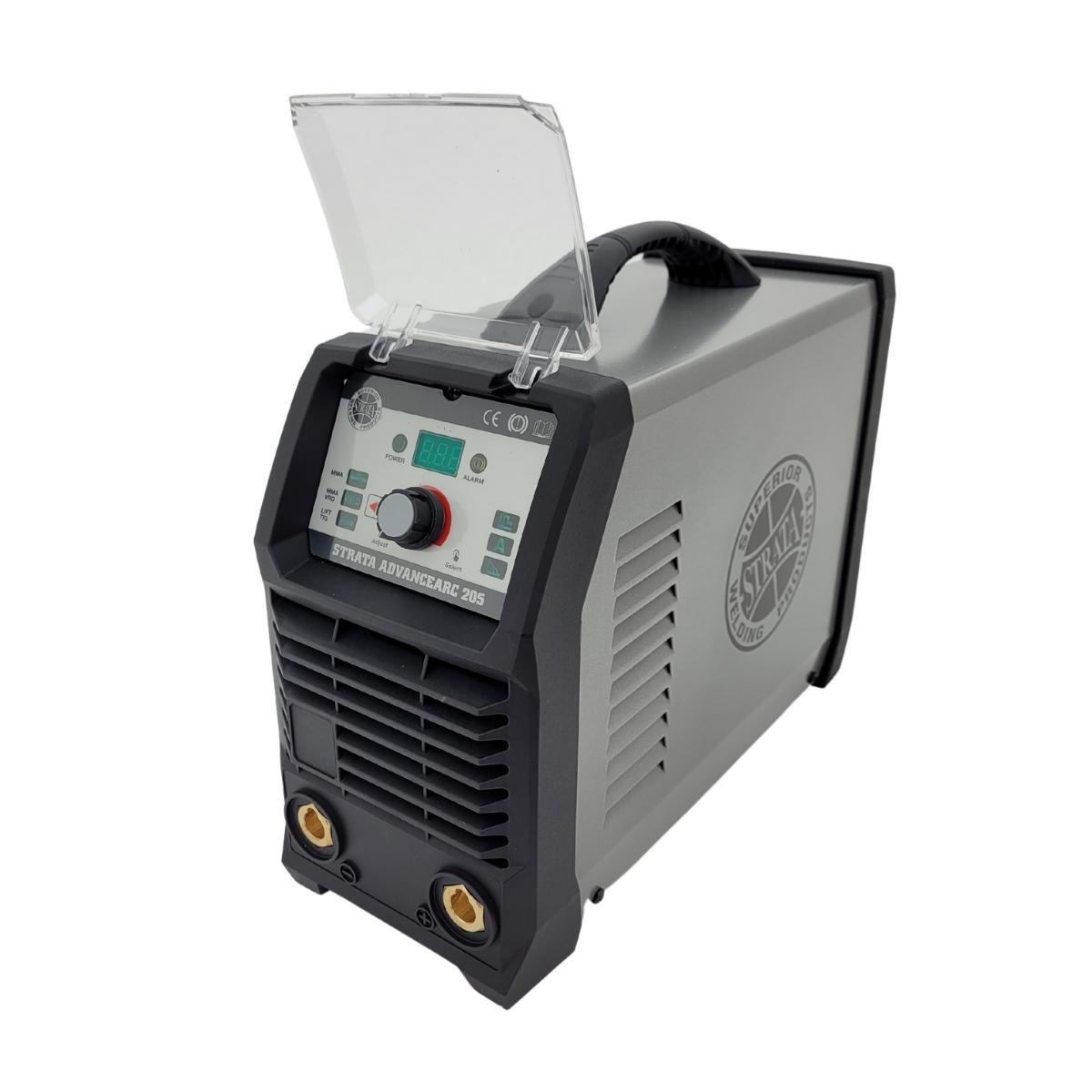

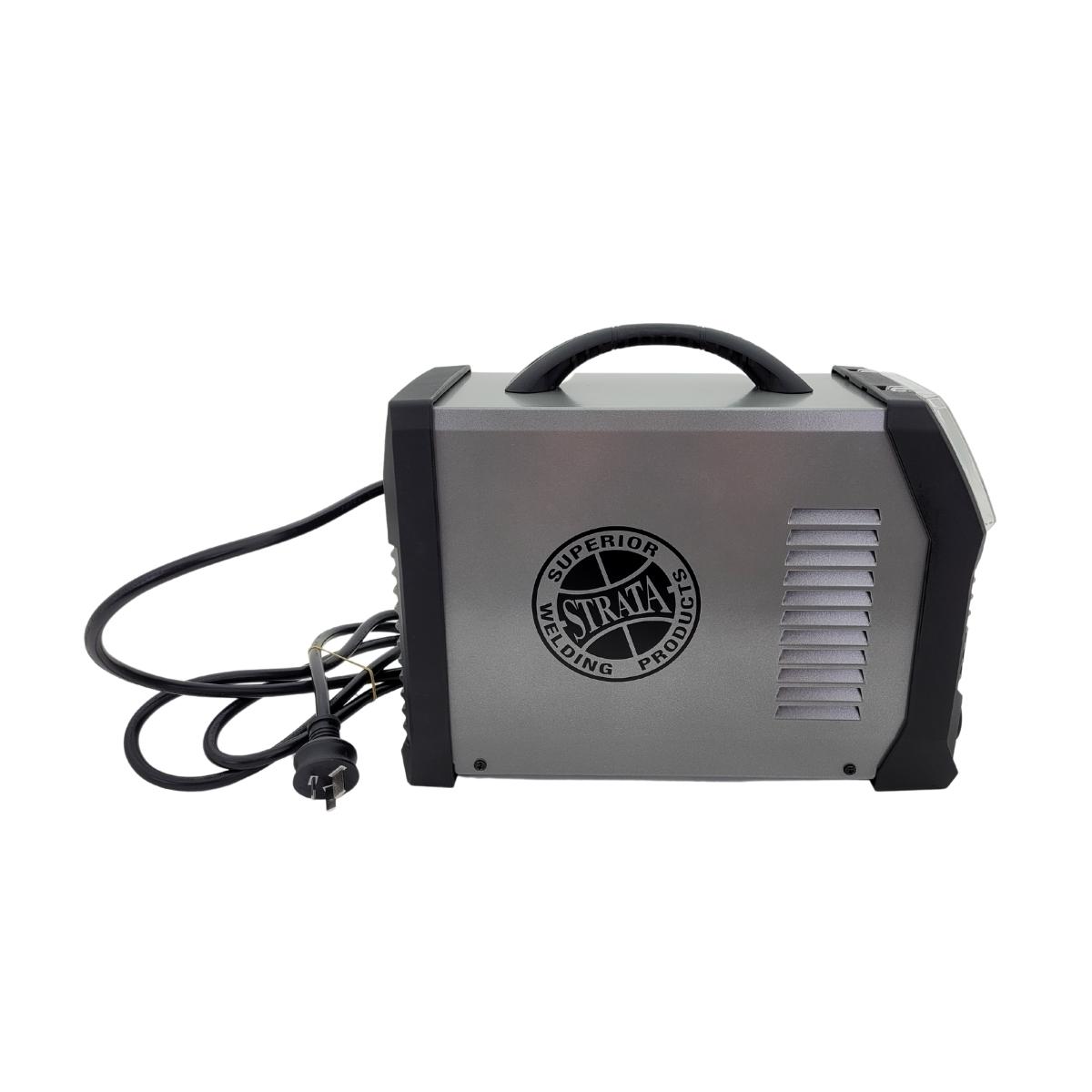

Strata AdvanceArc205 Arc Welder

The ADVANCE Series of MMA (Stick) welders offer the latest IGBT and PFC (Power Factor Correction) technology for smart operators. Increased reliability and performance for harsh and demanding conditions. Equipped with multi-voltage technology, giving you piece of mind when operating on generators or long extension cords.

Key Features

  • IGBT Inverter technology for smooth & stable welding output
  • Active PFC technology for increased duty cycle and energy efficiency
  • Increased safety with MMA VRD protection mode
  • Industrial IP23 casing with front panel protection resists damage, moisture and corrosion
  • Microprocessor control system with superior and dynamic arc characteristics
  • Extreme stress tested in production up to 440V, ensuring rugged reliability
  • Adjustable arc force and hot start enable good control and ease of use when MMA welding
  • Lift TIG welding operation for precision in aesthetically important welding jobs (torch optional)

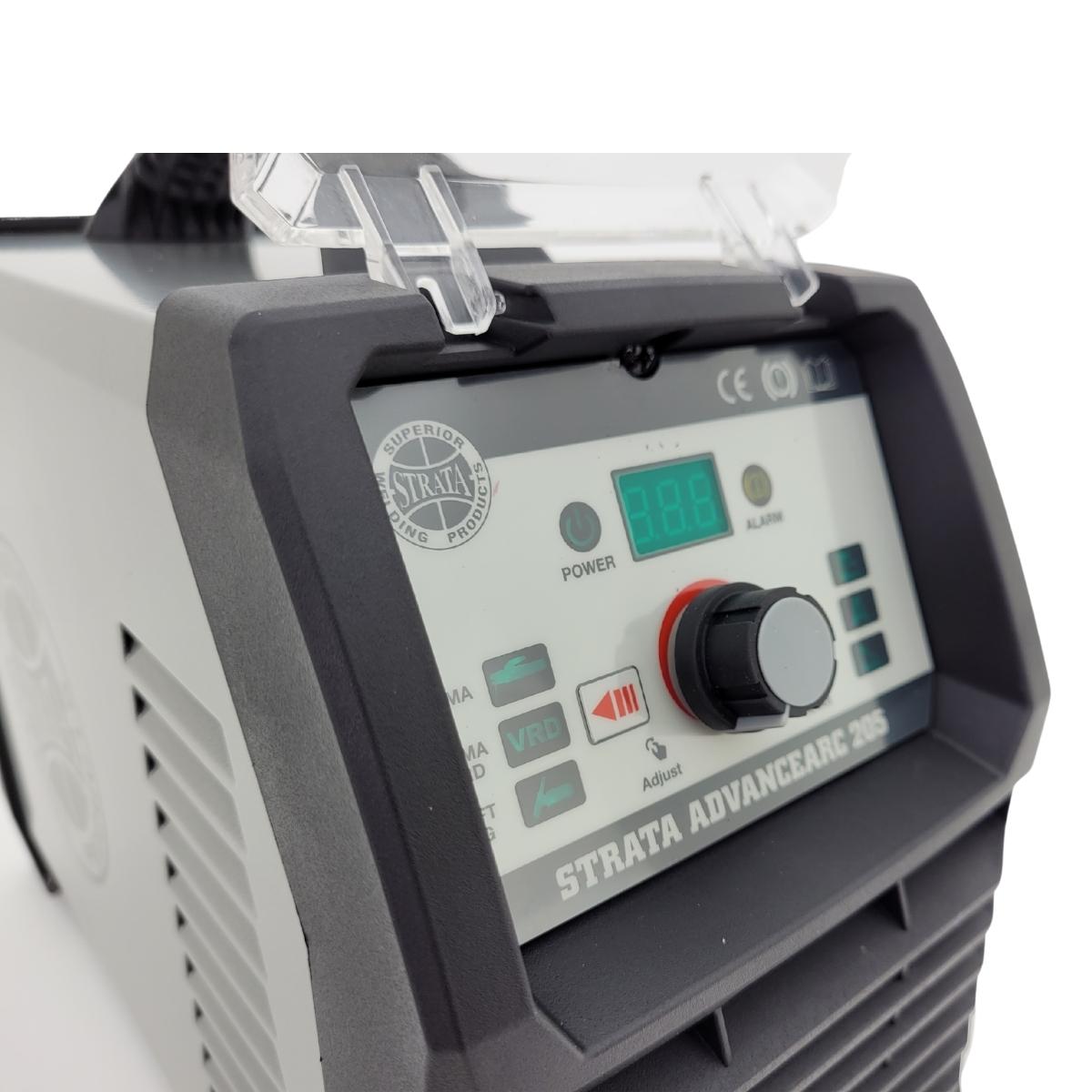

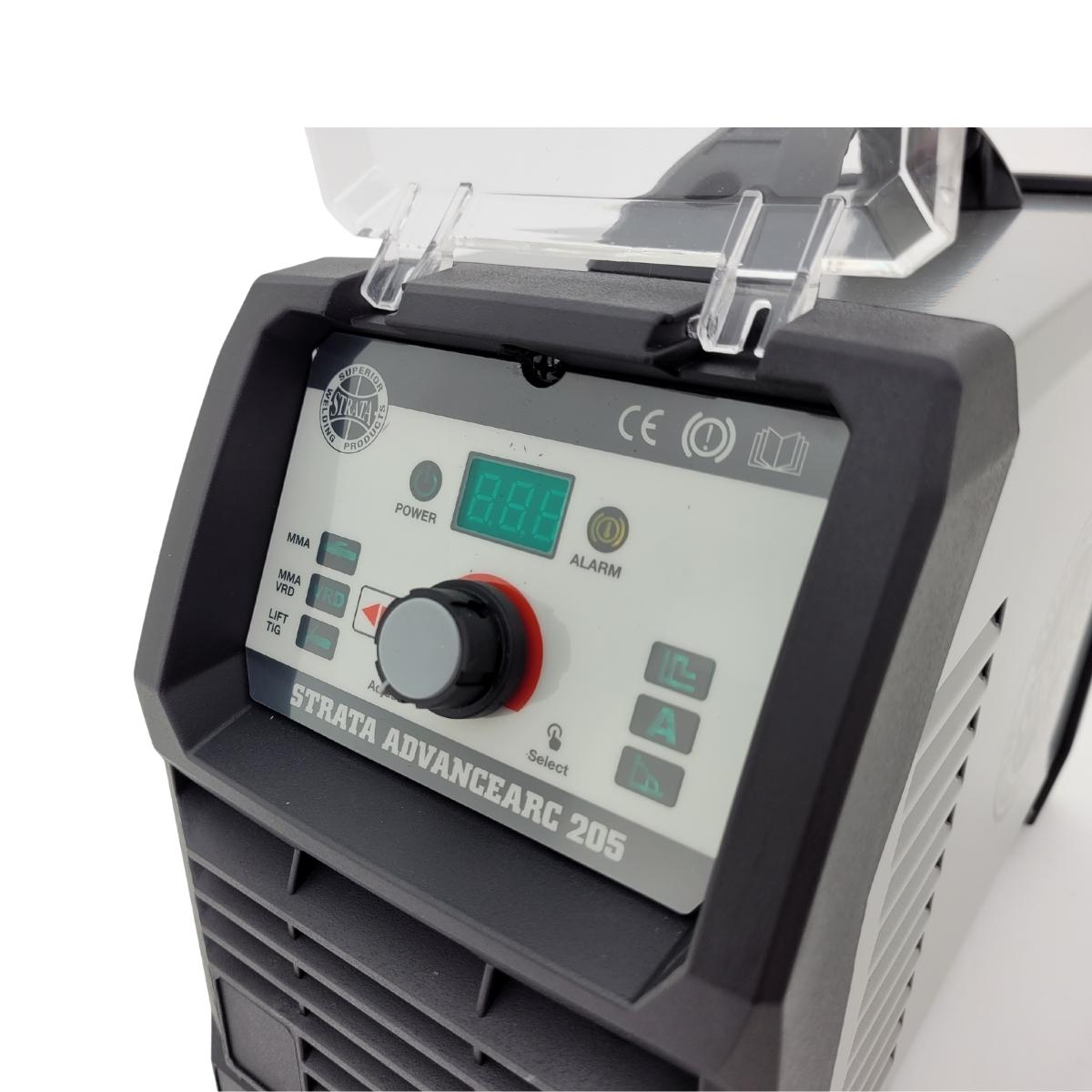

  • Accurate pre-setting and feedback of welding parameters & output with digital current display meter
  • Durable and reliable with high quality & over specified electronic components
  • Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety
  • Multi PCB construction is economical to service and repair compared to single PCB design

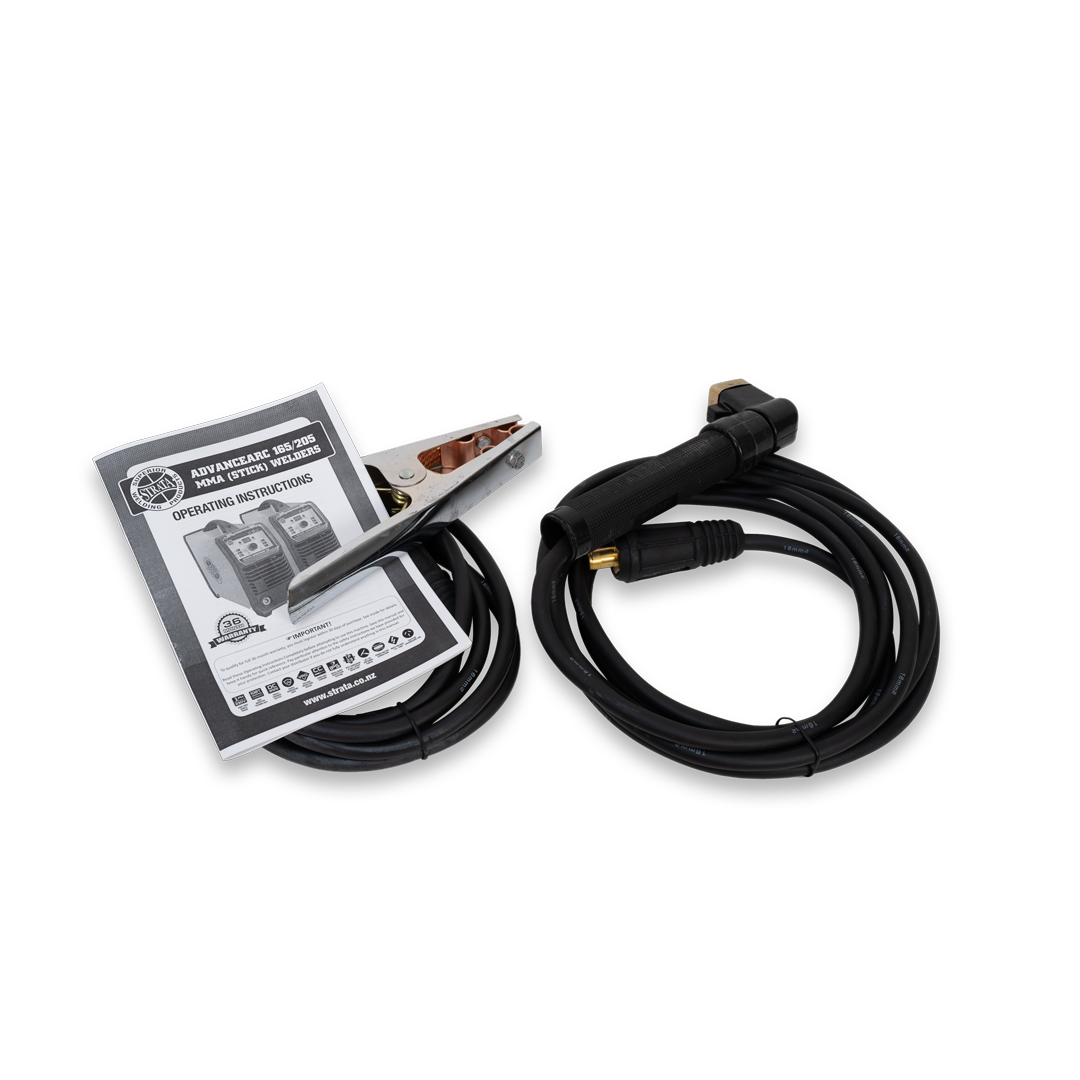

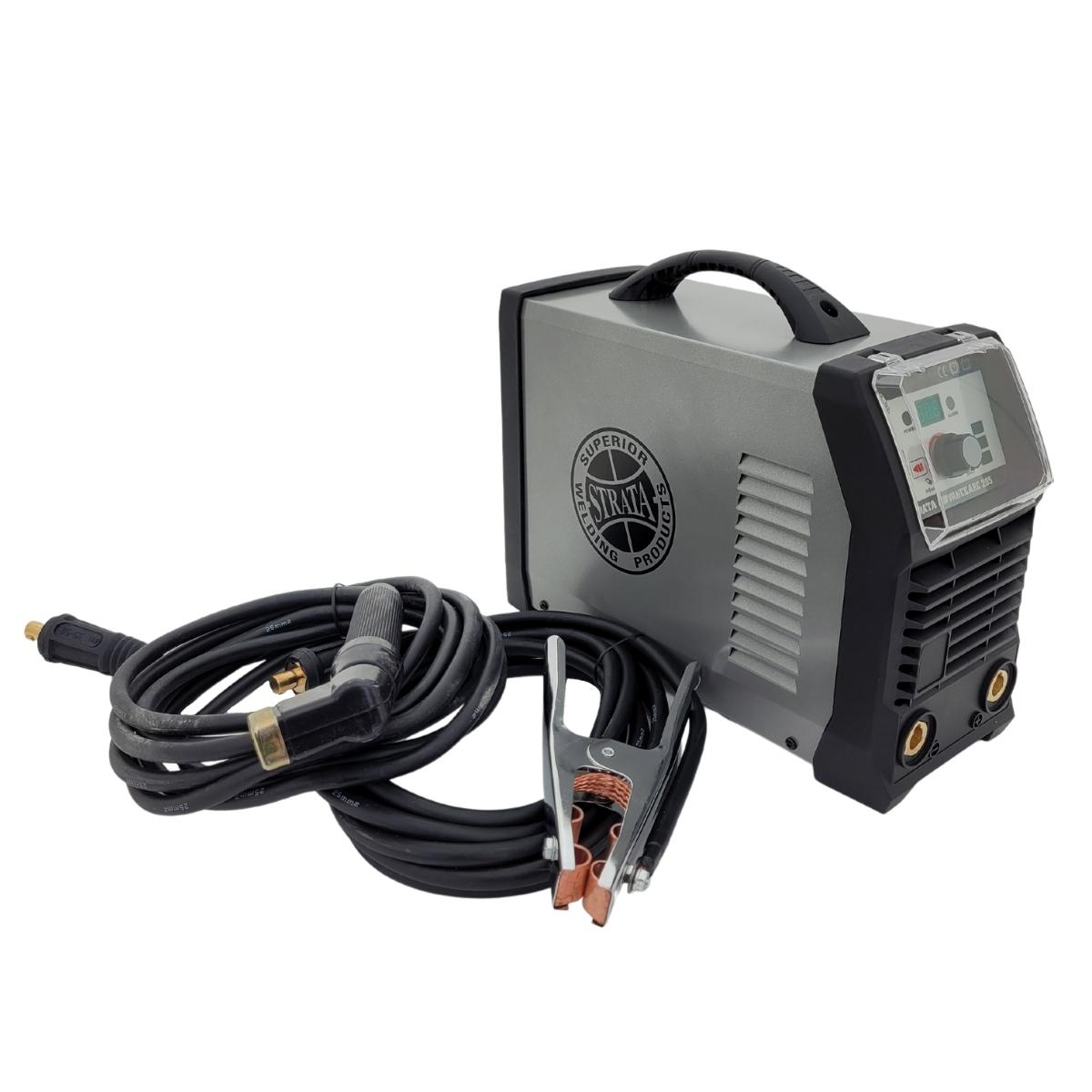

Standard Accessories:
  • 4m MMA Lead with Heavy Duty Twist Lock Electrode Holder
  • 3m Earth Lead with Heavy Duty Earth Clamp


Resources

Downloads

Overview

Specifications

Input Power Tolerance / 90V-275V AC, 90V-275V AC
Maximum Input Current / 31.1A, 31.1A
MMA Current Output / 10A-200A,  10A-200A
MMA O/C Voltage / 65V/ 14.5V Limited, 65V/ 14.5V Limited
MMA TIG Duty Cycle / 200A@20%, 165A@60%, 130A@100%, 200A@20%, 165A@60%, 130A@100%
Lift TIG Current Output / 10A-200A, 10A-200A
Lift TIG Duty Cycle / 200A@40%, 160A@60%, 130A@100%, 200A@40%, 160A@60%, 130A@100%
Insulation Class / IP23
Power Efficiency / 85%, 0.85
Power Factor / 0.99, 0.99
Standards / EN60974-1:2012
MMA Rod Size / 1.6-5.0mm, 1.6-5.0mm
Warranty / 36 months* with product registration, 36 months* with product registration
Input Power Supply / 230V AC 10A 50/60Hz
