Strata Advance Arc 500 Arc Welder

Free Shipping
strata /
SKU: 17380
Strata Advance Arc 500 Arc Welder
Overview

Product Overview

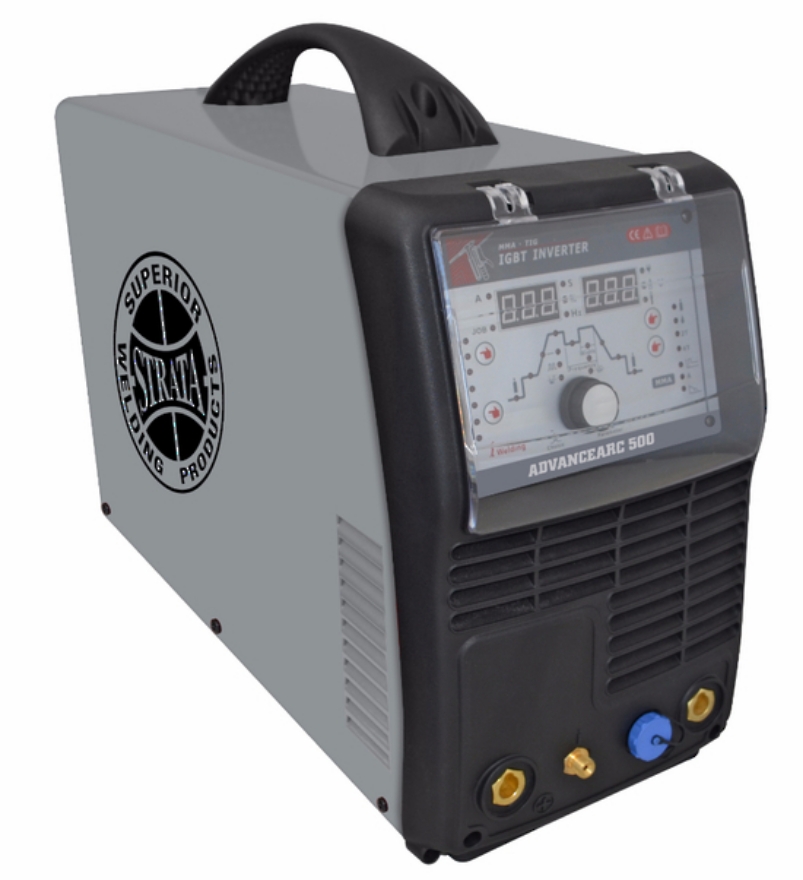

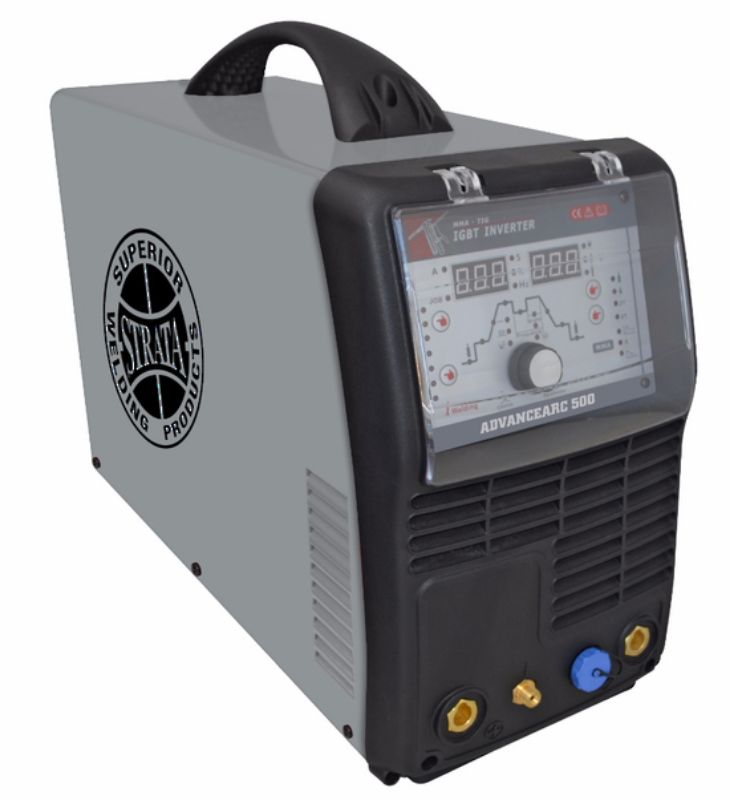

Strata Advance Arc 500 Arc Welder

500A 3-Phase Inverter Arc Welder. Ideal for industrial workshop and on-site use.

The Advance Series 3 Phase MMA (Stick) Welders include the latest IGBT technology & high tech features for industrial use. IGBT increases the reliability and performance for demanding industrial conditions.

Overspec Internals and factory tested to 550V, as well as IP23 rating and wind tunnel cooling system, the Strata Advance Series 3 phase machines are truly built tough to withstand the most demanding work-site situations.

  • IGBT Module Inverter Technology for smooth stable output, increased reliability and a high duty cycle.
  • Phase loss protection prevents damage as machine automatically shuts down phase loss occurs.
  • Designed for using all types of welding rods including cellulose.
  • Selectable VRD Protection for increased safety
  • Damage resistant industrial casing with front panel protection
  • Microprocessor control system for superior and dynamic arc characteristics
  • Lightweight & compact design, ideal for portable applications
  • Adjustable arc force, hot start & automatic anti-stick control
  • Digital current display meter
  • High quality & over specified electronic components
  • Intelligent protection system
  • Temperature, voltage and current sensors for increased reliability & safety
  • Wind tunnel cooling (Keeps sensitive components away from cooling area, eliminate damage from dust)
  • Protection against environmental contamination



Replaced by Strata Advance Mig 500 (Air Cooled) and Strata Advance Mig 500 (Water Cooled)

Overview

Specifications

Dimension / 550x240x445
Weight / 23kg
Input Power / 400 AC 3phase 36 A 50/60 Hz
Maximum Input Current / 45A
Generator Capacity / 32 KVA
MMA Current Output / 20A-500A
MMA O/C Voltage / 90V
MMA Duty Cycle / 500A@20%, 400A@60%
Lift TIG Current Output / 20-400 A
Insulaiton class / IP23
Power Efficiency / 0.9
Power Factor / 0.7
Standards / EN60974-1:2012
MMA Rod Size / 1.6-6.0mm
