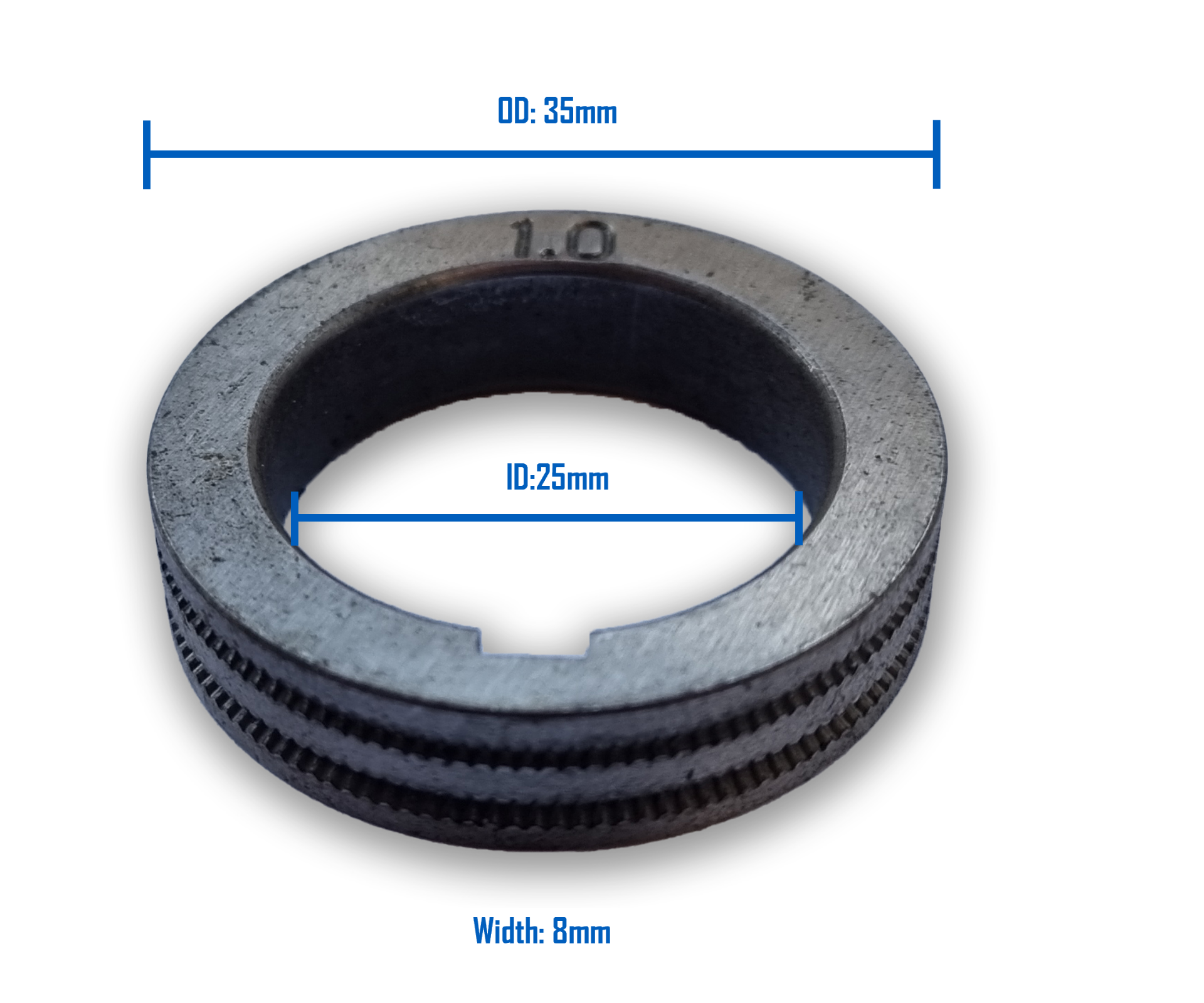

Promax Drive Rollers OD35 ID25 W8
Key Features
- Outside Diameter: 35mm
- Inside Diameter: 25mm
- Width: 8mm
- Available in knurled, v-groove and u-groove style
- Knurled is used for flux-cored wires
- V-Groove is used for solid wires
- U-Groove is used for aluminium or other soft material wires
- Available in the sizes below:
| Knurled | U-Groove | V-Groove |
0.6/0.8mm | | | WT 73DRV |
0.8/0.9mm | WT 65DRK | | |
0.8/1.0mm | | | WT 62DRV |
0.9/1.0mm | 203507 | | 203506 |
1.0/1.2mm | 204383 | 202029 | WT 63DRV |
1.2/1.6mm | 203105 | | |
- Fits the following machines:
Strata: CXM220, CXM260, CXM315, XM200, XM205, XM250, XM255
Needing help finding the correct drive roller? Please enquire now or call our team. We have access to a huge range of sizes.
