Promax 180 BW-LB Line Borer

Free Shipping
promax /
SKU: 38167
Promax 180 BW-LB Line Borer/Welder 40-300mm, Dual Line Boring & Bore Welding Machine
$ 8,997 .00 Excl GST
$ 10,346.55 Incl GST
Overview

Product Overview

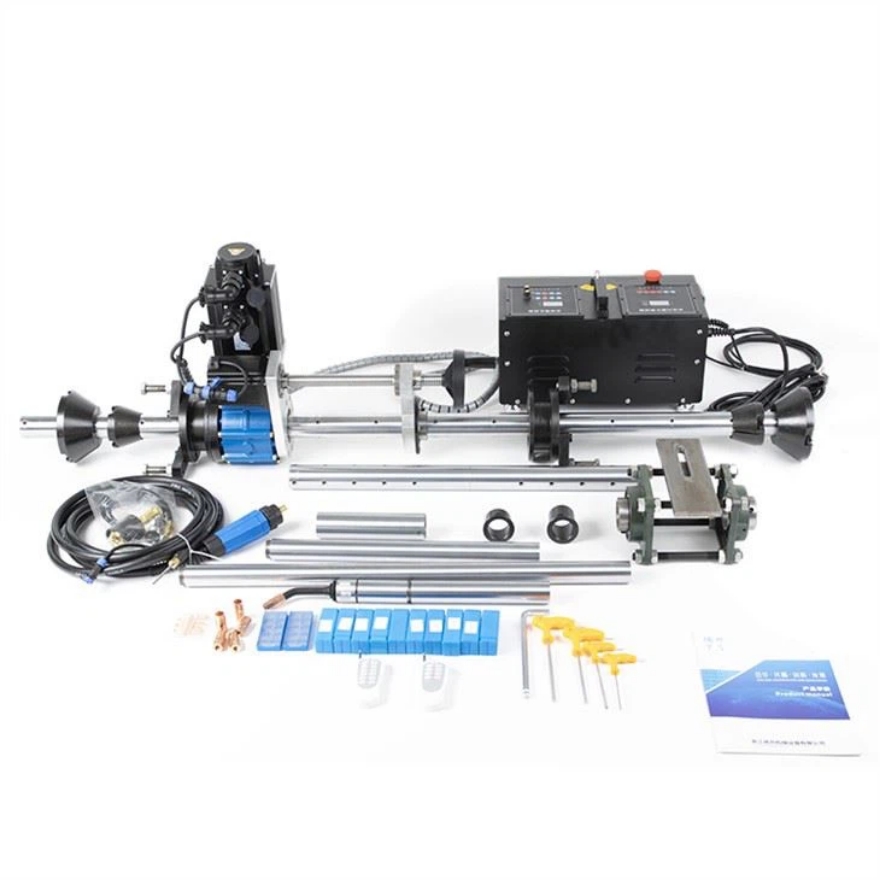

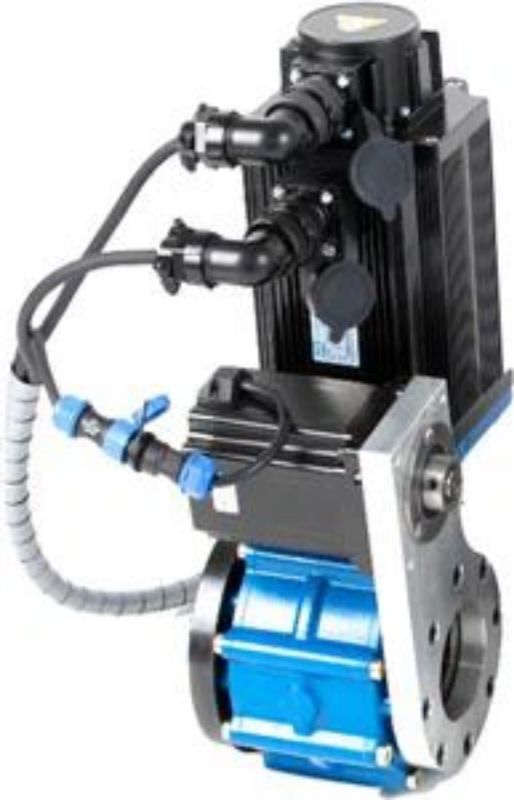

Promax 180 BW-LB Line Borer

The Promax 180 BW-LB Line Borer excels in boring holes ranging from 40mm to 300mm to repair bores that have been worn out, oversized, or irregular in shape. It combines line boring and welding into one machine, allowing the welding bar to be installed directly on the line boring machine. Immediately switch and start welding work after hole boring to save time and ensure efficiency.

Key Features

  • Single phase, 220V motor
  • Bore capacity: 40-300mm
  • Stroke: 240mm
  • Boring bar: 35 & 50mm Bars 42 Crmo Material
  • Bar rotating speed: 50-300rpm
  • Rotation and feed speeds can be adjusted with wireless control while in operation
  • 0.8mm wire recommended to be used at 110-125Amps, 18.5-19 volts
  • Quick-Reply function in various lengths and passages
  • Compact drive design that offers amazing setting versatility
  • Weight: 27kg
  • Welding kit includes euro connect MB15 welding torch with a segmented design 200-800mm length for the welding bar outer sleeves

Optional Flange Facing Kit #38168 available on request.
