Optrel Crystal 2.0 Auto Darkening Welding Helmet

Free Shipping
optrel /
SKU: OT21207
Overview

Product Overview

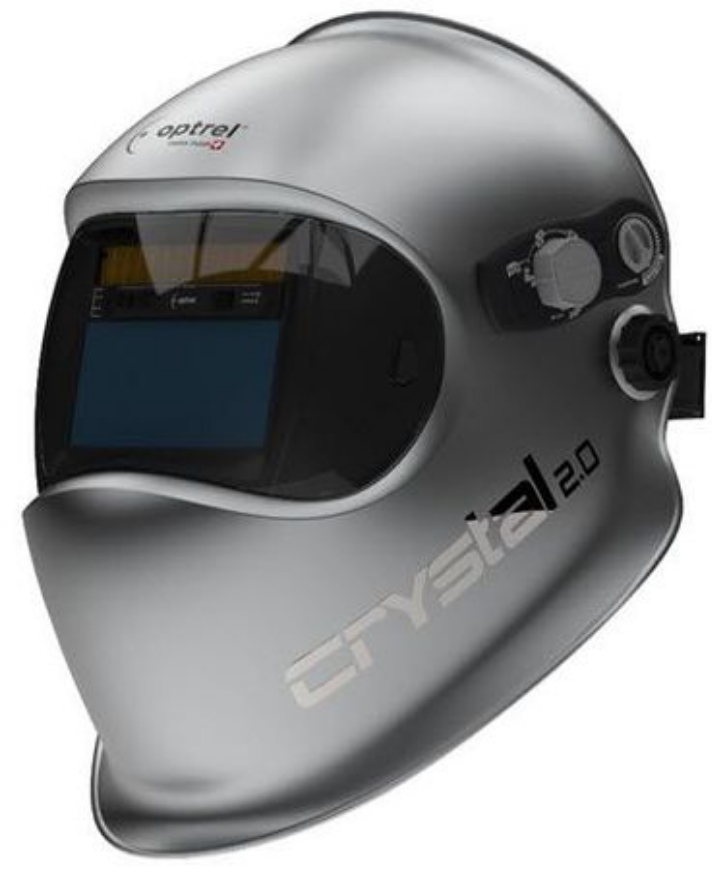

Optrel Crystal 2.0 Auto Darkening Welding Helmet

The OptrelĀ® Crystal 2.0 auto-darkening welding hood features shade 2.0 light state that is unmatched in the world for color and clarity. The Crystal 2.0 lens has fully automatic shade 4 to 12 arc brightness detection with Twilight feature to gradually bring the lens back into light state from welding state, reducing eye strain. Optrel's Autopilot automatically adjusts the shade level based on the brightness of the arc or flame. The auto-dark lens can also be operated in fully manual mode with infinite shade adjustment between shades 4 and 12 for a custom view of the arc. The Crystal 2.0 welding helmet also has improved True Color technology, which allows for realistic color perception in light or dark states. It scores a perfect 1 rating for optical class, scattered light, homogeneity and angular dependence. The Crystal 2.0 has external controls to switch quickly and easily from weld to grind mode and back again. Delay and sensitivity can also be controlled using the external knobs.

Key Features

  • Crystal lens technology with shade 2.0 light state - See clearly what happens before, during and after the welding process
  • Autopilot - Detection of the arc brightness and fully automated shade level adjustment from 4 to 12. Adjusts automatically to the changing light conditions of the current welding process
  • Twilight Feature - gradually lightens lens when switching from dark (welding) to light state to ease eye fatigue.
  • Sensitivity Adjustment - allows operator to change lens switching sensitivity for varying ambient light conditions or outdoor welding in sunlight.
  • Grind Mode - Switch quickly and easily between weld mode and shade 2.0 grind mode using external controls. There is no need to remove the welding helmet to grind
  • True Colour - The color perception in light state is almost like looking through clear window glass and in dark mode, you enjoy a detailed and high-contrast view of the welding pool with never-seen-before clarity. TRUE COLOR passes more colors of the spectrum through compared to standard "green" spectrum welding lenses.



Replaced by Optrel Panoramaxx CLT Black Auto Darkening Welding Helmet

Your Questions Answered

FAQ's

Benefits

Product Videos

video image
Optrel Crystal and Panoramaxx CLT Review - With Proline Industrial
video image
Optrel Crystal 2.0 Auto Darkening Welding Helmet | Customer Testimonial NZ Truck Build
Helpful Resources

Knowledge Hub

Truck Build NZ with the Game-Changing Optrel Crystal 2.0 Helmet

15/02/2024 / Welding Equipment

In an insightful overview, Matt from Truck Building NZ shares his professional journey and introduces Optral Crystal 2.0, an unparalleled welding helmet in the industry. With a career spanning 25 years, Matt's expertise highlights the helmet's unmatched reliability, vision clarity, and durability, advocating for its essential role in enhancing welding practices.

Read More
What our customers think

Customer Reviews

5 / 1 review(s)
5 star
100 %
4 star
0 %
3 star
0 %
2 star
0 %
1 star
0 %
WRITE A REVIEW
See All Reviews
Very very nice lens clarity.
Tried this helmet for the first time today, stick welding. Extremely impressed.

The most impressive thing about it, is that somehow I can see quite clearly all the surrounding weld area, ie, where I need to go next... but the arc is still a comfortable, non intense brightness... and the surrounding area just looks like I am wearing sunglasses while looking at it. I was doing a vertical up weld, about a foot high. As I approached the top, I could see over the plate, and saw outside of the shed, I saw green paddocks, yellow buildings, brown fences, green shipping containers, red paint on some random metal, all about 100 m away... all while also seeing the immediate weld area, puddle, and what the arc was doing and where I am going to next. It was quite impressive.

The other thing is, I bought a non PAPR version of this hood, so wore a respirator while doing so. The helmet did not seem to rest or get obstructed by the respirator (a 3M one), it did not fog up either.

The headgear, while seemingly simple, seemed to fit my head nicely for a change... and it felt rather light and I did not really notice it.

Another thing was that the clear state of the helmet is very good, Although the viewing area is not large, it felt natural walking around with the helmet down, its like wearing very light shade sunglasses.

Another thing cool about it, is the auto shade adjustment. It can automatically adjust the shade for you, so some sort of arc which you would normally use a shade 10 for, it adjusts it to shade 10. If that arc then lowers ( via foot pedal or arc length ) to something you would normally use a shade 8 for, it adjusts the shade to a shade 8. But you can also adjust the offset by +/- 2 shades and it will follow it accordingly. This all happens seemingly instantly and intrusively.

Additionally it has a 'twilight' feature, where after welding has stopped, it slowly comes back to shade 2, instead of instantly, so that you avoid that instant brightness of the glowing red metal and it avoids that shock to your eyes of darkness to daylight.

It was only my first time using it today, but it is pretty damn impressive so far.
Joshua Sandbrook
