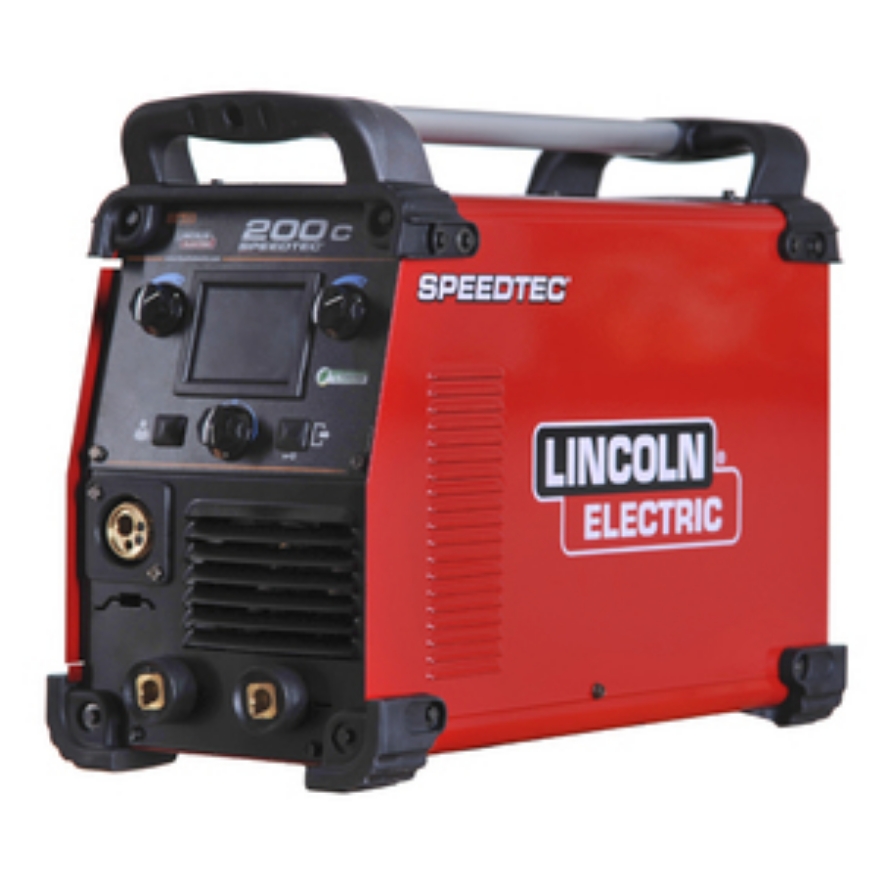

Lincoln Speedtec 200C Multi Process Welder

Free Shipping
Lincoln /
SKU: 203277
You will be amazed at the low cost of this latest generation single phase inverter mig/arc/tig welder from Lincoln, featuring manual or synergic mig welding, CC Arc welding and DC lift tig welding in a robust compact case built to perform in the toughest of applications.
Overview

Product Overview

Lincoln have designed and constructed the Speedtec 200C especially for the professional welder and packed a great range of features into a very compact case for maximum portability.
With a Mig welding current range from 20-200amps and Tig/Arc current from 20-160amps combined with a 25% duty cycle at full amps, the Spedtec 200C will happily weld a wide range of material types and thicknesses.
The Power Factor Correction (PFC) is a feature which allows this welder to maintain high output welding current from a single phase 240V 15A 50/60Hz supply and allows you to use up to a 100m primary extension cable. It also features a large bright (adjustable) colour TFT User Interface screen that allows easy viewing of the welding parameters and easy access to other features and menu's.

Key features include:

  • Manual or Synergic Mig Operation
  • Large adjustable colour interface control screen
  • Generator Compatible
  • Infinitely variable voltage control on Mig
  • Hot Start and Arc Control on Stick Welding
  • Lift Start on Tig Welding
  • Store you 8 Favourite Welding settings
  • Lincoln 2 year warranty

Exceptional after-sales back up and service down the track that Proline Welding Supplies has a reputation for providing.

Overview

Specifications

Input Power / 115-230/1/50/60
Rated Output Current/ Voltage/ Duty Cycle / 200A/24V@25%
Input current / 16A
Output Range (Amps) / 20-200A
Solid Wire Size Range / 0.6-1.0 mm
Cored wire size range / 0.9-1.1 mm
Wire speed range IPM / 1-15 m/min
Dimension(H X W X D) / 396 mm x 246 mm x 527 mm
Weight / 17.2 kg
