KCD Portable Stud Welder CD66
KCD Portable Stud Welder CD66
Be the first to review this product
Free Shipping
/
KCD
/
SKU:
204268
KCD Portable Stud Welder CD66
Quick Enquiry
Add to Wishlist
Overview
Specifications
FAQs
Reviews
Related Products
Ask a Question
Overview
Product Overview

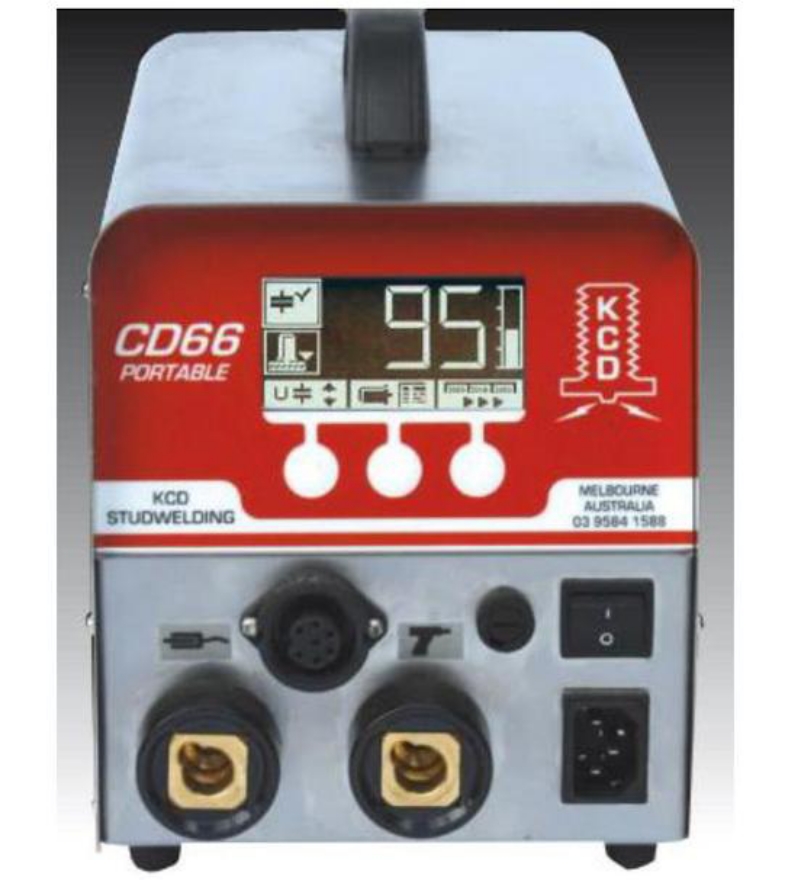

KCD Portable Stud Welder CD66
CD66 Portable Stud Welder
Lightweight
Easy Operation
Compact housing-Stainless steel
High welding cycle rate
Contact and gap modes
Automatic line voltage selection
high-speed charging unit
Integrated self-test function
Auto safety shutdown function
Resources
Downloads
Technical Data Sheet
Spare Parts List
Instruction Manual
Safety Data Sheet
Overview
Specifications
Welding Current source /
Aluminium-Electrolytic-Capacitors
Capacity /
66000
Welding voltage /
50- 200V
Max charge Energy /
1320 Watts @ 200V
General Control /
Microcontroller 16Bit, 20 MHz, flash
Display /
LCD DSTN, 128x64 Pixel sunlight-usable
Welding Mode /
Contact and Gap
Welding Material /
Mild steel, stainless steel. Zinc, Aluminium Brass
Weight /
6.5
Dimension /
155x215x289
Applicable Stud/Pin /
M3 to M8
