Hypertherm Powermax45XP 3PH Hand Torch Plasma Cutter Package

Free Shipping
Hypertherm /
SKU: 38296
088144 - Hypertherm Powermax45 XP 400v (3-Phase) Plasma Cutter Package. Includes 6.1M 75° Hand Torch & Earth Lead
Overview

Product Overview

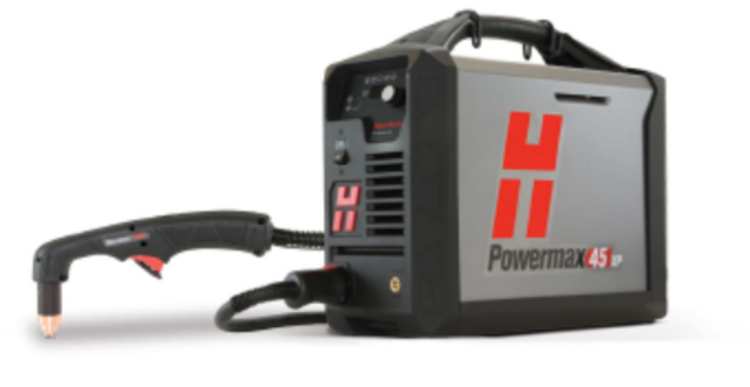

Hypertherm Powermax45XP Three-Phase Plasma Cutter Package with Hand-held Torch

The Powermax45® XP plasma cutter offers an optimal cutting capacity of up to 16 mm (5/8″), combined with rapid cutting speeds and automatic gas calibration for effortless setup and operation. Accompanied by Duramax® Lock torches, it facilitates both handheld and mechanized cutting across a broader spectrum of metal thicknesses. Additionally, it excels in precise gouging tasks, including spot welding removal and intricate marking functionalities.

Key Features

  • Easily portable - Small size and light weight
  • Easy to use (even for first time operators) with patented drag-cutting technology
  • Smart Sense™ technology ensures that air pressure is always correctly set
  • CNC interface and FastConnect™ torch connection allows both handheld and mechanized operation
  • A wide range of torch and consumable styles to choose from for both handheld and automated processes
  • Extensive array of application capabilities via specialty consumables for fine feature cutting, extended reach cutting, gouging, precision gouging and marking
  • Duramax® Lock torches are designed for high-impact and heat resistance
  • SpringStart™ technology ensures consistent starting and optimum torch performance
  • Hypertherm Certified™ reliability ensures peak performance even in the most demanding environments
  • Plasma cutting efficiency is 11% better than its predecessor, enabling you to cut more steel with less power, in less time
  • Package includes Hypertherm Powermax45 XP 400v Plasma Cutter Package. Includes 6.1M 75° Hand Torch & Earth Lead
Overview

Specifications

Input voltages (± 10%) / 4 00 V, 3-PH, 50–60 Hz
Output current / 10–45 A
Rated output voltage / 145 VDC
Duty cycle @ 40° C (104° F) / 50% @ 45A, 60% @ 41A, 100% @ 32A
Open circuit voltage (OCV) / 265 VDC (400 V CE/CCC)
Weight with 6.1 m (20') torch / 15kg
Gas Supply / Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean dry and oil-free) argon
Recommended gas inlet flow rate / pressure / 188 I/min (400 scfh) @ 5,9 bar (90 psi)
Input power cable length / 3 m (10')
Power supply type / Inverter – IGBT
Engine drive requirement / 12.5 kVA (10 kW) for full 45 A output
Electrical efficiency / 88%
Recyclability / 100%
Dimension(L x W x H) / 442x173x357mm
