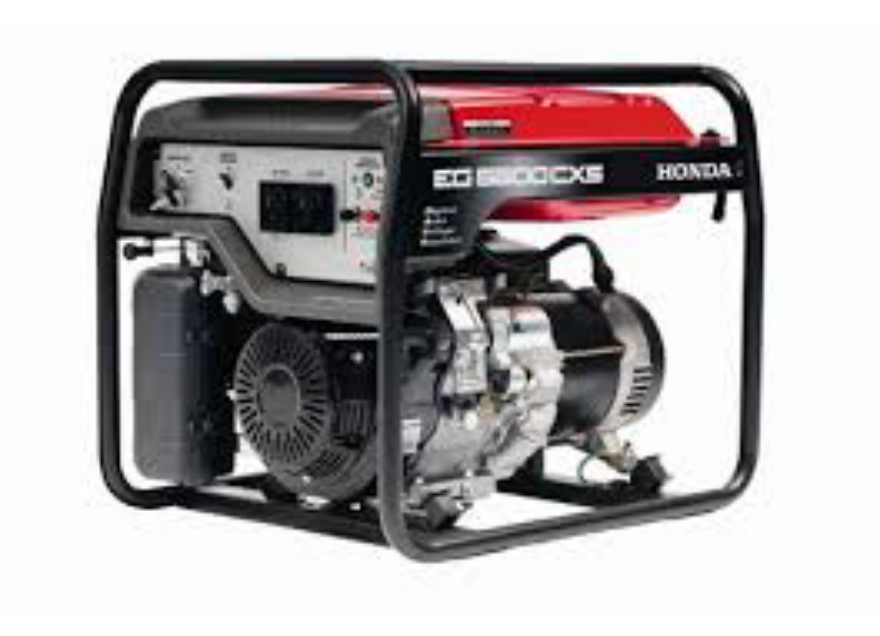

Honda EG5500CX 5500W/6.9kVA Conventional Generator

Free Shipping
honda /
SKU: 31333
5500W/ 6.9Kva Framed Honda Generator with Digital AVR, Oil Alert, Recoil Start, 50hz
Overview

Product Overview

Honda EG5500CX 5500W/6.9kVA Conventional Generator

The EG5500CX Recoil Start Digital AVR generatorfeatures a large capacity fuel tank for extended operating time, as well as the convenience of a fuel gauge to keep you on track.

In keeping with Honda's reputation for smooth and quiet operation, the EG5500CX is fitted with anti-vibration engine mounts and a large noise-suppressing muffler.

Stable power delivery comes courtesy of Honda's highly advanced D-AVR (Digital Auto Voltage Regulator) which uses a microcomputer to precisely control output voltage, providing high quality stable electricity. This feature offers a greater level of stability than conventional AVR types resulting in reduced load on the devices driven by the generator, increasing their life and facilitating 100% performance.

For functionality and added safety, an AC/DC circuit breaker and oil alert light comes standard on the EG5500CX, while a functional control panel features 15 amp sockets, battery charger and circuit protector.

Equipped with a full steel frame to ensure engine protection and aid transportation, this generator is also available with an optional four wheel dolly kit.

And like all Honda generators, it features Honda's easy start technology for hassle-free starting even after long periods in storage.

Key Features

  • Max Output:5500W/6.9kVA
Overview

Specifications

Product Code / EG5500CX
Engine / GX390
Displacement / 389 (cc)
Ignition System / Transistorised Magneto
Oil Alert / Yes
Starting System / Recoil
Stopping System / Transistor Magnet
Recommended Fuel / Unleaded
Fuel Consumption / 3.12L/hr
Fuel Tank Capacity / 24L
Continuous Operating Hours / 8.1hr
Noise Level / 99
Dimension(L x W x H) / 681 x 530 x 571 (mm)
Weight / 84kg
Electric Starter / No
Maximun AC Output / 5500VA
Rated AC Output / 5000VA
DC Output (Generator/Charger) / 8.3A
Battery Charging / No
Frequency Meter / No
Volt Meter / No
Generator Type / D-AVR
Voltage / 240V
Rated Frequency / 50Hz
AC Circuit Breaker / Yes
Fuel Gauge / Yes
DC Circuit Breaker / Yes
Auto Throttle / No
Auto Choke / No
Fuel Injection / Yes
Large Capacity Air Cleaner / Yes
Large Capacity Fuel Tank / Yes
Pilot Lamp / No
Large Capacity Muffler / Yes
Air Cleaner / Semi Dry Type
Parallel Operations Connection Cable / No
Parallel Operations Connection Ports / No
4 Wheel Dolly Kit / Available as an add-on kit.
Conditions / * LwA refers to the sound power level and is measured at rated load. This figure can only be compared to other LwA models.
Maximum Output / 5500W/6.9kVA
Continuous Output / 5000W
Phase / Single
230V Power Sockets / 2
Cooled / Air
Fuel / Petrol
Parallel Operations Connection Function / No
Low Oil Cutout / Yes
Digital HR Meter / No
Wheel kit / No
Warranty / 48 months
Run Time / 8
