Telwin Digital Modular 230 Spot Welder 230V

Free Shipping
telwin /
SKU: 201497

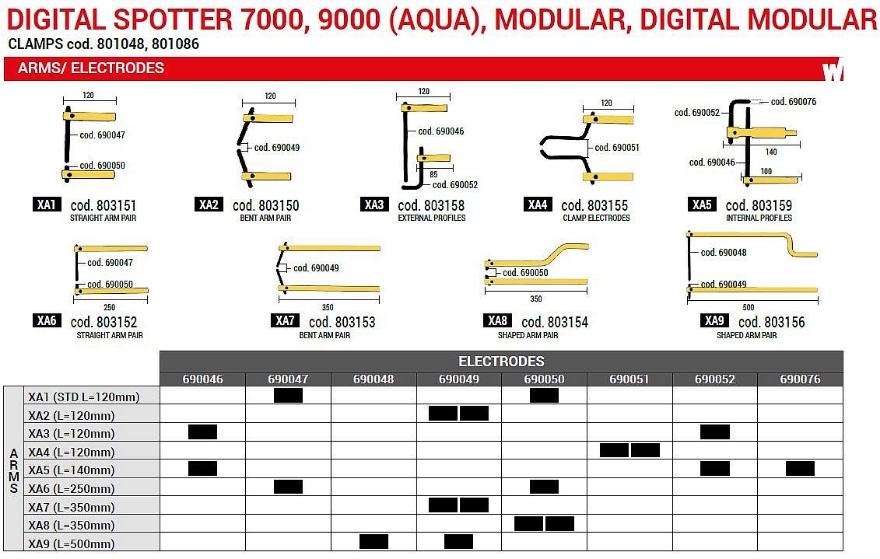

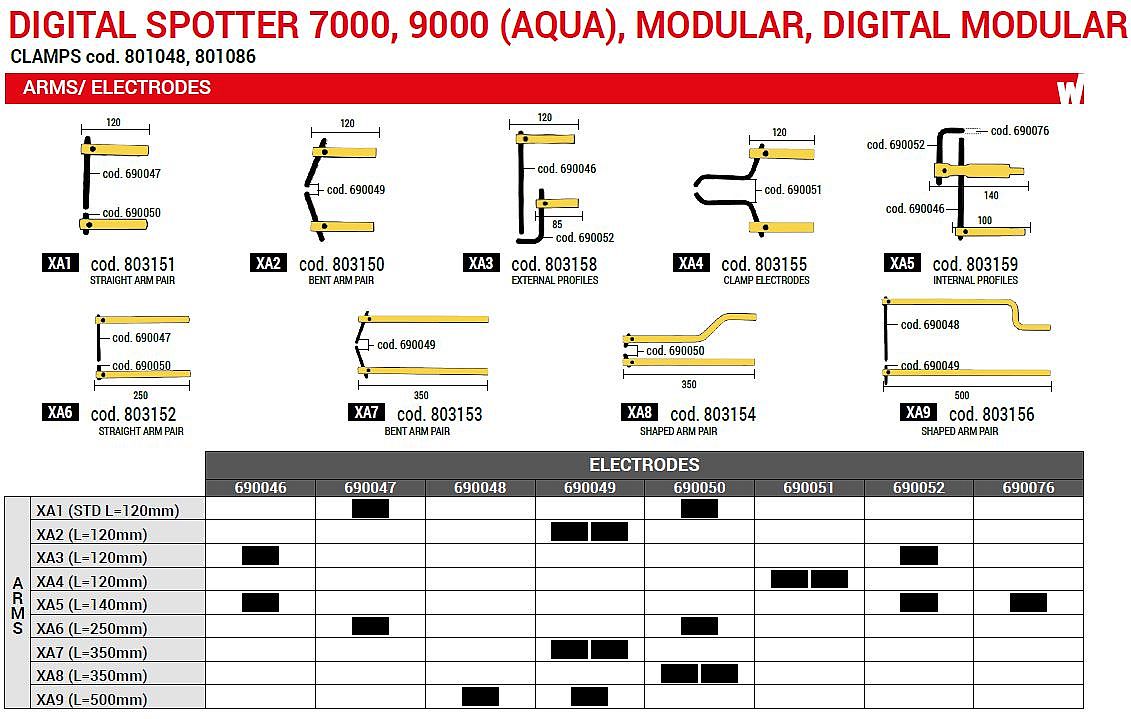

Suitable for up to 2+2mm steel. Full range of arms available for all types of spot welding.
Overview

Product Overview

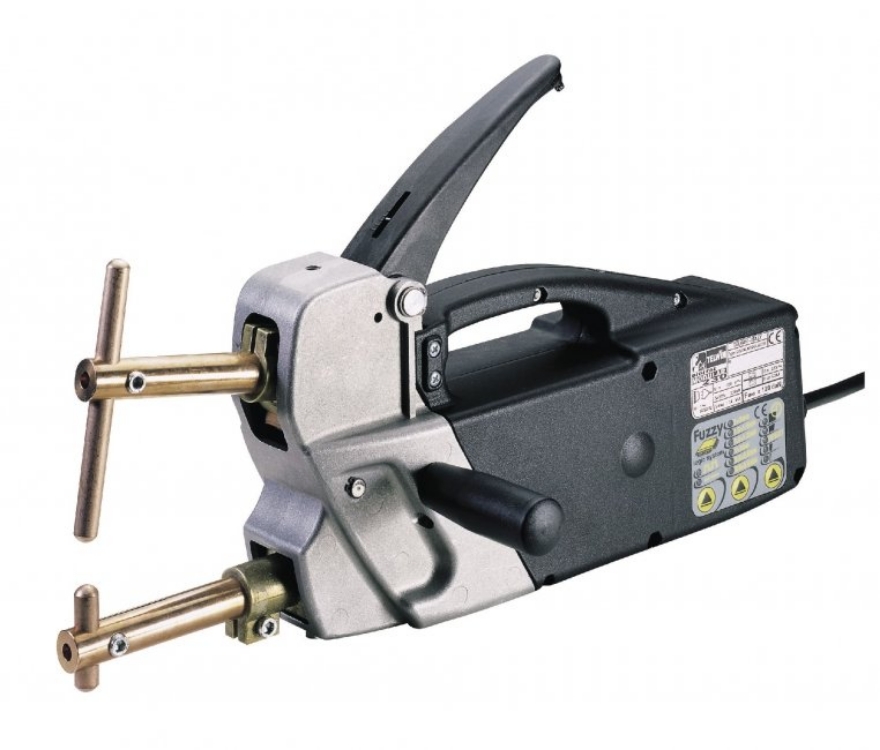

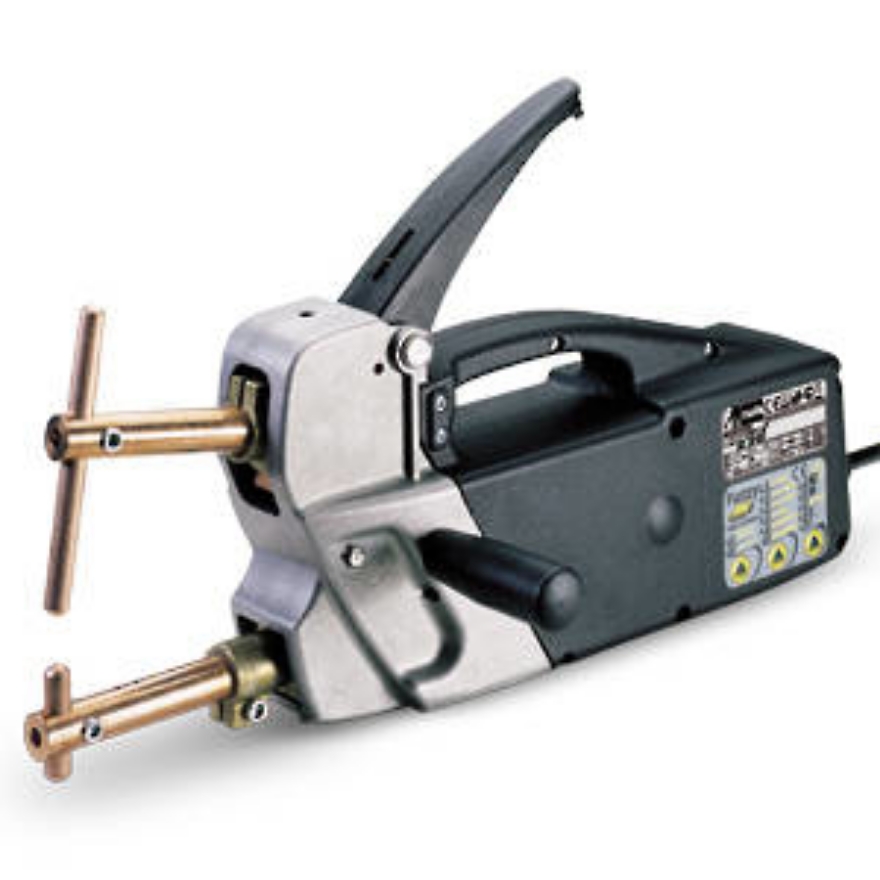

Telwin Digital Modular 230 Spot Welder

Microprocessor-controlled, spot welding machine with the fuzzy logic control system and pulse welding function. Suitable for spot welding sheets with thickness up to 2+2mm. Fuzzy logic control simplifies the setup and increases the spot welding quality. Choose between continuous or pulse functions - the advantages of pulse give you greater control and the ability to weld coated materials (such as galv or zinc coated steels) and high-stress steels.

Key Features

  • Automatically regulates spot welding current and time according to the material thickness to simplify setup
  • Easy to manually override to increase or decrease time. This is especially useful when welding two different size materials
  • Choose between continuous and pulse operation. Pulse provides superior quality welds on coated material and high-stress metals
  • Arms pressure adjustable from 40 kg to 120 kg (with std 120mm arms. Less pressure for longer arms)
  • Insulated handgrip for increased thermal protection
Overview

Specifications

Single phase Mains Voltageq / 230V
Mains Frequency / 50-60 Hz
Max Spot-Welding Current / 6900A
Max no Load Voltage / 2.5 V
Max Absorbed power / 13 kW
Main Fuse / 25A
Rated Power x=50% / 2.3 kW
Power Factor / 0.9
Duty Cycle / 0.015
Proctection Degree / IP20
Weight / 10.5kg
Dimensions / 44x10x18.5
