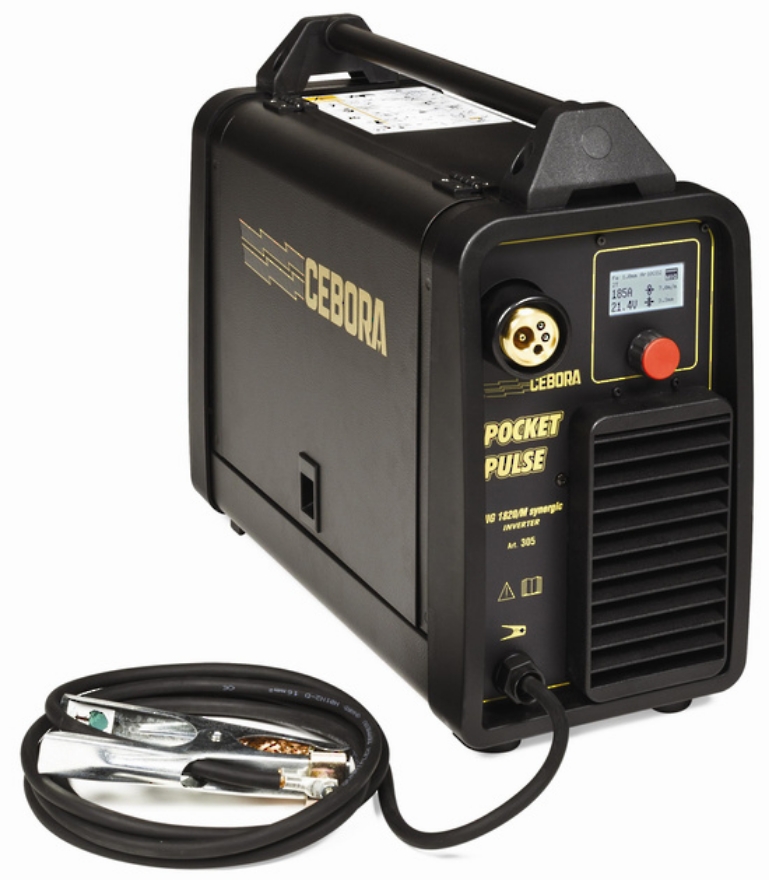

CEBORA POCKET PULSE 1820/M

Free Shipping
Cebora /
SKU: 204195
ART305 - Cebora 1820/M 185A Pocket Pulse Mig Welder Package
Overview

Product Overview

Cebora Pocket Pulse is the most compact pulse MIG-MAG welding power source. This unique European made pulse MIG is packed with features & includes 37 synergic programs to make set-up on any job a breeze!

Excellent for welding Galvanized Steel, Mild Steel, Aluminium & Stainless Steel.

Key Features:

  • Small enough to take to any job site
  • Light enough to carry with one hand (13.5kg)
  • Powerful enough for 6mm+ Aluminium
  • PFC for greater power efficiency
  • Easy to operate single control display
  • 37 synergic programs included
  • 100% made in Italy
  • Excellent value Ready-To-Weld Packages

The Cebora 1820/M (Art.305) Pocket Pulse Inverter Pulse Mig is a single-phase, synergic power source for MIG-MAG welding, both short and pulsed. This has Cebora's 2-roller wire feed unit and a total power source weight of only 13.5 kg.

The power source is factory fitted with 37 synergic programs (mild steel Ø 0.6 / 0.8 / 0.9 / 1.0mm, stainless steel 0.8 / 0.9mm, Aluminium 0.9 / 1.0mm, CuSi3% 0.8 / 0.9mm as well as for flux cored wire Ø 0.9mm).

The LCD panel allows the operator to read, on three lines, wire and gas type, current and thickness, voltage and wire speed.

It is a specially versatile power source, suitable for various applications, especially repairs, maintenance and basic car body repairs, marked out by a low electrical input (PFC).

An optional dedicated transport trolley (art. 1653), particularly compact and handy, is available too.

Complies with EN 61000-3-12.

The power source can also be powered by motor-driven generators of adequate power (min. 6 KVA)



Replaced by Promax MIG-250DP 250A Multi Process Pulse Mig Welder

Overview

Specifications

Three phase input / 230V 50/60 Hz + 15% / -20%
Fuse rating (slow blow) / 16 A
Input Power / 5.5KVA 20% 3.7 KVA 60% 2.7 KVA 100%
Min.-max. current / 20A ÷ 185A
Duty Cycle / 185A 20% 140A 60% 110A 100%
Stepless regulation / Electronic
Wire Diameter / 0,6/0,8/0,9/1,0 - Fe 0.9 - Flux Cored 0.8/0.9 - Stainless Steel 0.9/1.0 - Al 0.8/0.9 - CuSi3%
Max. wire spool size / Ø 200mm /5kg
Protection class / IP 23 S
Weight / 13.5 Kg
Dimension(L x W x H) / 196x458x380mm
