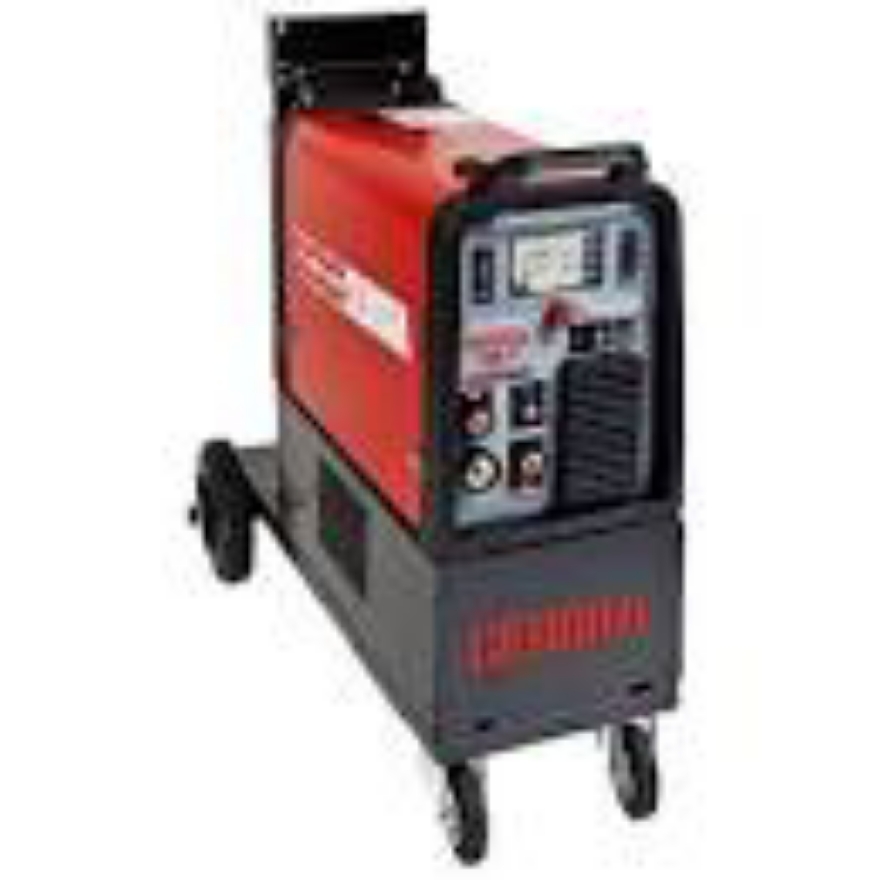

Cebora 330 TC Pulse Mig

Free Shipping
Cebora /
SKU: 204345
Art.386 Cebora Synstar 330 TC Multi-Process Inverter Pulse/Double-Pulse MIG/MAG Welder.\r\nSerial Number.............................
Overview

Product Overview

The new SYNSTAR 330 TC is a multiprocess inverter three-phase synergic power source for MIG-TIG-MMA welding,with 4-roller Cebora wire feed unit.(Ø 30mm, 0,098 ft)

Factory fi tted with current double level (MIG Short process), pulse and double pulse function, the SYNSTAR 330 TC has more than 70 welding programs available for Ø 0.8/0.9/1.0/1.2mm solid wire, as well as of stainless steel pulsed programs optimized for welding of thin thicknesses.

The LCD TOUCH SCREEN panel allows the operator to read and select process, wire and gas type, current and thickness, voltage and wire speed.

The power source is complete with many functions adjustable from the TOUCH SCREEN control panel such as: Arc Length, short or pulsed welding process, 2 times / 4 times, Spot Time, Pause Time, Inductance, push-pull force, Burn Back, Soft Start, pre-gas and post gas.

An optional cooling unit (art. 1681) is also available.
It is a specially versatile power source, suitable for various applications, in particular for medium metal works, marked out by a low electrical input (PFC).

Complies with EN 61000-3-12.

Overview

Specifications

Three phase input / 400V 50/60 Hz +15% / - 20%
Fuse rating (slow blow) / 16 A
Input Power / 12.4 KVA 40% 10.8 KVA 60% 9.2 KVA 100%
Current adjustment range / 15A ÷ 330A
Duty Cycle (10 min.40°C) According to IEC 60974.1 / 330A 40% 300A 60% 270A 100%
Stepless regulation / Electronic
Standard supplied synergic programs / 0.8/0.9/1.0/1.2 Fe 0.8/0.9/1.0/1.2 Al 0.8/0.9/1.0/1.2 Inox 0.8/0.9/1.0/1.2 CuSi3 0.8/1.0 CuAl8 (AlBz8)
Max. wire spool size / Ø 300 mm / 15 Kg
Protection class / IP 23 S
Weight / 72 Kg
Dimension(L x W x H) / 510x1022x960
