Arcbro Stinger 4400 CNC Cutting Table 1300x1300mm

Be the first to review this product
Free Shipping
Arcbro /
SKU: 34361
Arcbro Stinger 4400 CNC Cutting Table 1300x1300mm Package includes FastCAM software and standard water table
$ 18,455 .00 Excl GST
$ 21,223.25 Incl GST
Overview

Product Overview

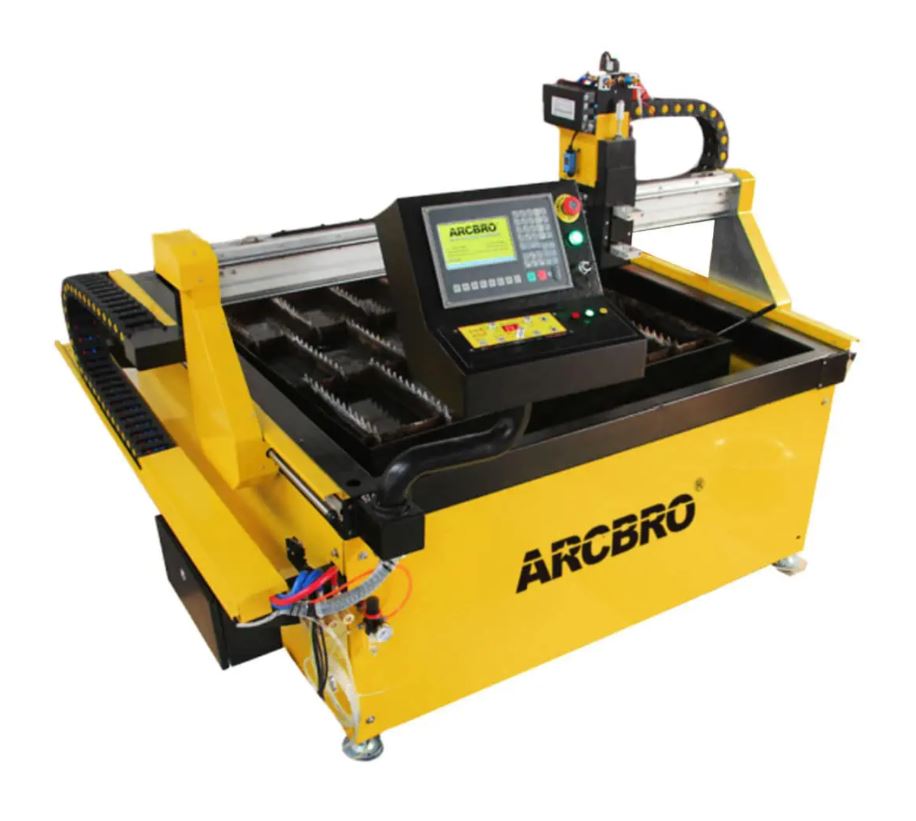

Arcbro Stinger 4400 CNC Cutting Table 1300x1300mm

Key Features

  •  Compact and smart design for workshop
  •  Table size: 1800x1800mm
  •  Cutting size: 1300x1300mm
  •  Cutting capacity: 0.5mm - 200mm

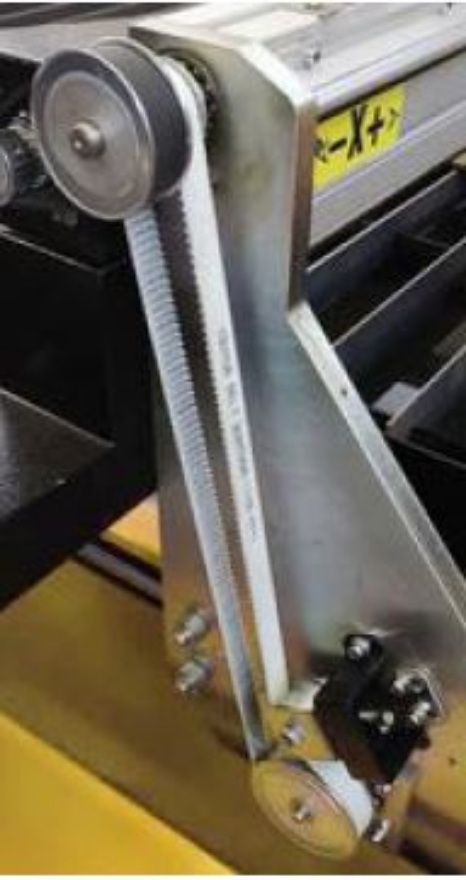

  •  Patented belt transmission, motion control system and effective vibration absorption during motion

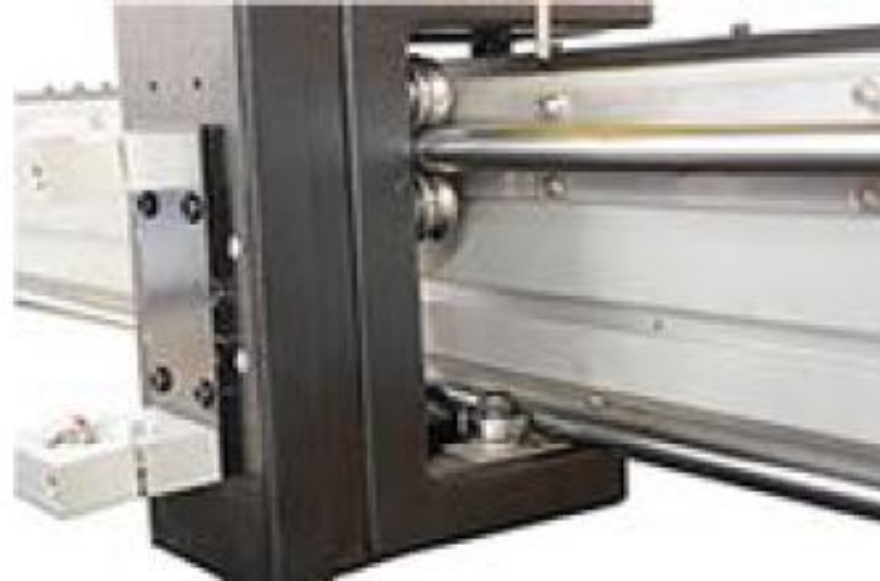

  •  Combines V-wheel and flat wheel to avoid over constraining
  •  Air pressure and arc voltage sensor
  •  Three cutting modes - pneumatic height adjustment mode, high arc voltage mode and capacitor height adjustment mode
  •  Flame mode available (please enquire) to allow for cutting thicker metal sheets
  •  Plasma marking available (please enquire) to allow for marking and cutting on the same table
  •  Air dusting available on request
  •  Libellula Italy software - easy to operate and capable to handle your most demanding cuts
  •  Capable of cutting aluminium, stainless steel and mild steel plates
  •  Includes: Control system, FastCAM software, Standard Water Table, Instruction Manual



Make it a full package with Strata AdvanceCut75 Plasma Cutter Machine Torch Package

Resources

Downloads

Overview

Specifications

Effective Area / 1300x1300mm
Thickness Range / 0.3-30mm (Depending on plasma cutting capacity)
Input Voltage / Single Phase, 110/220V
Power Frequency / 50/60Hz
Cutting Mode / Plasma Cut (Flame Cut is optional)
Driver Motor / Hybrid Servo Drives
Cutting Speed / 1-7000mm/min
Running Speed / 1-7000mm/min
Tolerance / <0.4mm
Height Control / Arc Voltage THC & Pneumatic THC (Capacitive CHC is optional)
Internal Library / Shape Library
Language / English, Chinese, Spanish, Russian, French, Japanese, Czech, Slovenia
Temperature / 1-40 Degrees C
Benifits

FAQ's

Benefits

Product Videos

video image
ArcBro 4400/Strata AdvanaceCut 75 tracing and cutting with Fusion 360
video image
ArcBro 4400 with Strata AdvanceCut75
