Arcbro Spark Pro CNC Cutting Table 1200x1200mm

Free Shipping
arcbro /
SKU: 38153
Spark Pro CNC Cutting Table 1200x1200mm
$ 7,495 .00 Excl GST
$ 8,619.25 Incl GST
Overview

Product Overview

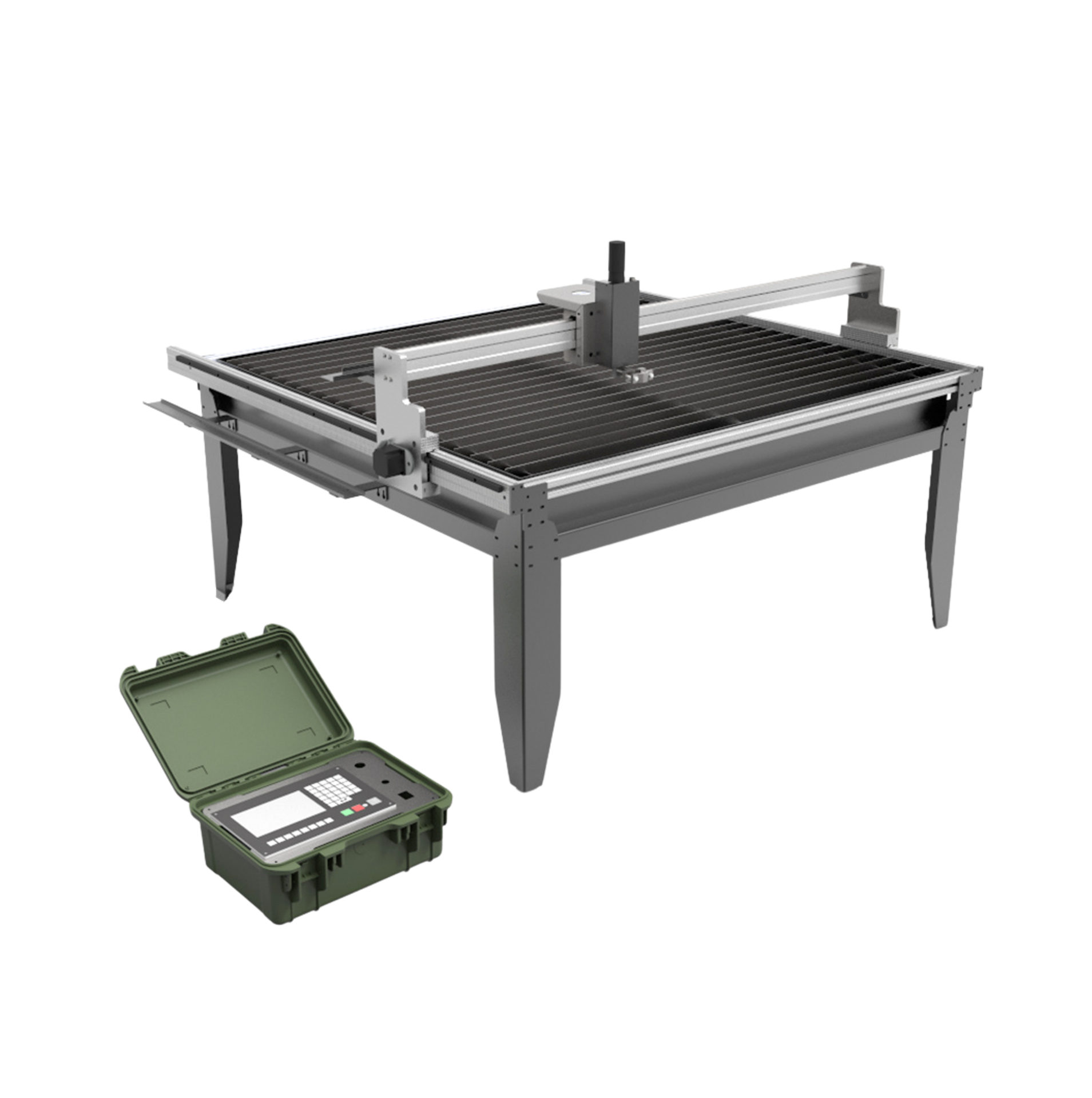

Arcbro Spark Pro CNC Cutting Table 1200x1200mm

***NEW MODEL ARRIVING OCTOBER 2023***

Key Features

  •  Compact, smart and affordable
  •  Table size: 1700x1505mm
  •  Cutting size: 1200x1200mm

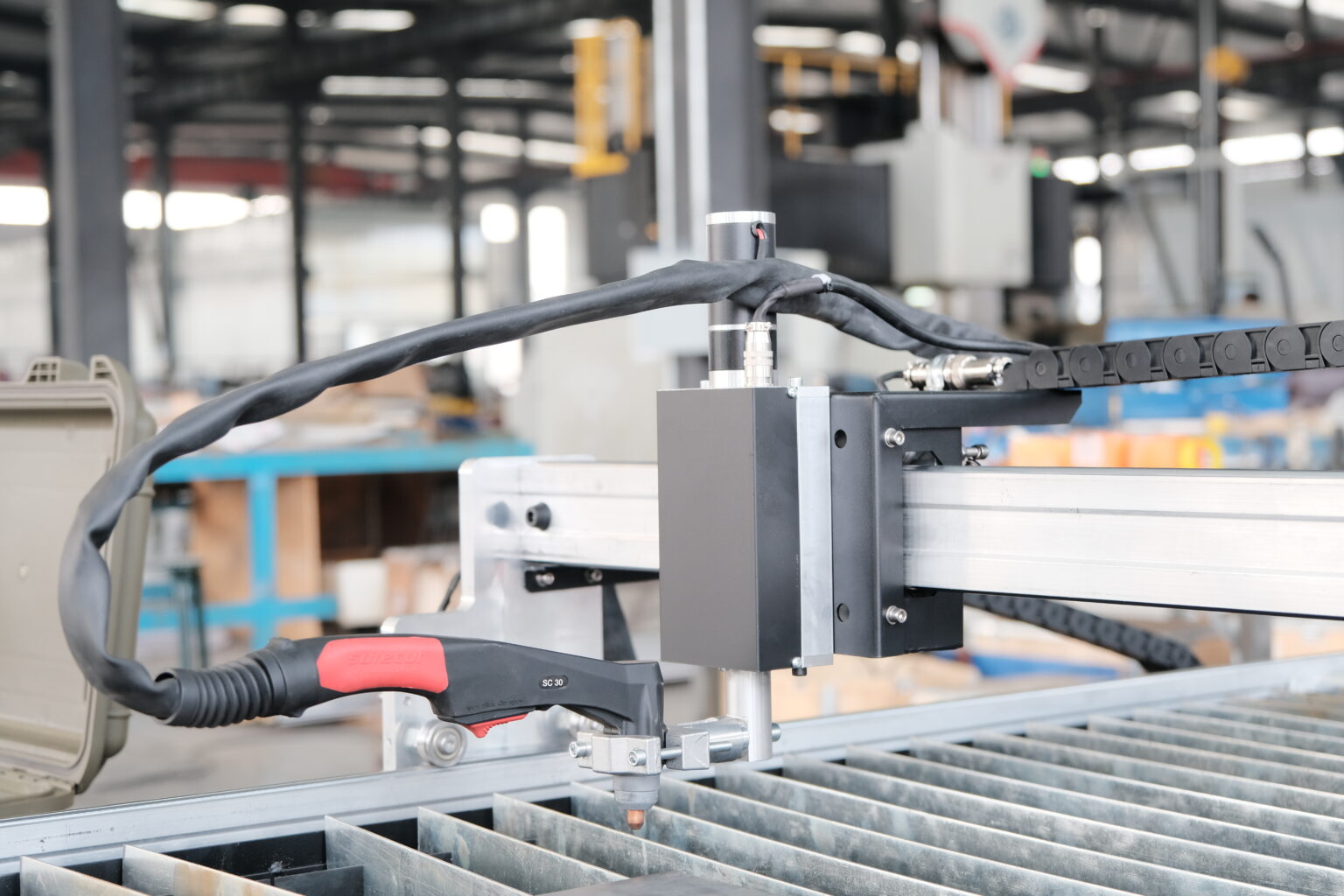

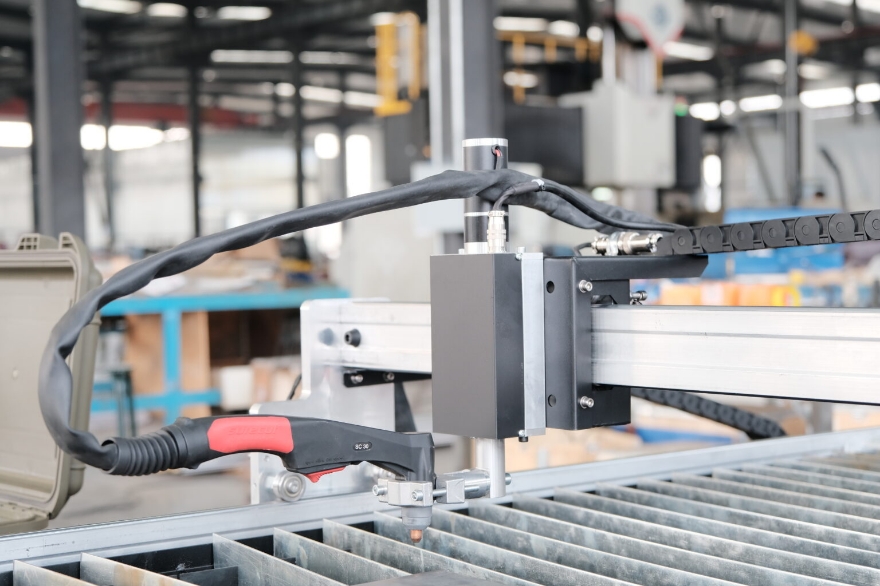

  •  Plasma cutting mode with automatic height control
  •  Touch lifter is very small with a stroke of 50mm
  •  V-wheel clamping system for the y-axis - easy to clean and durable
  •  Three elastic motor engagements allowing for smooth cutting

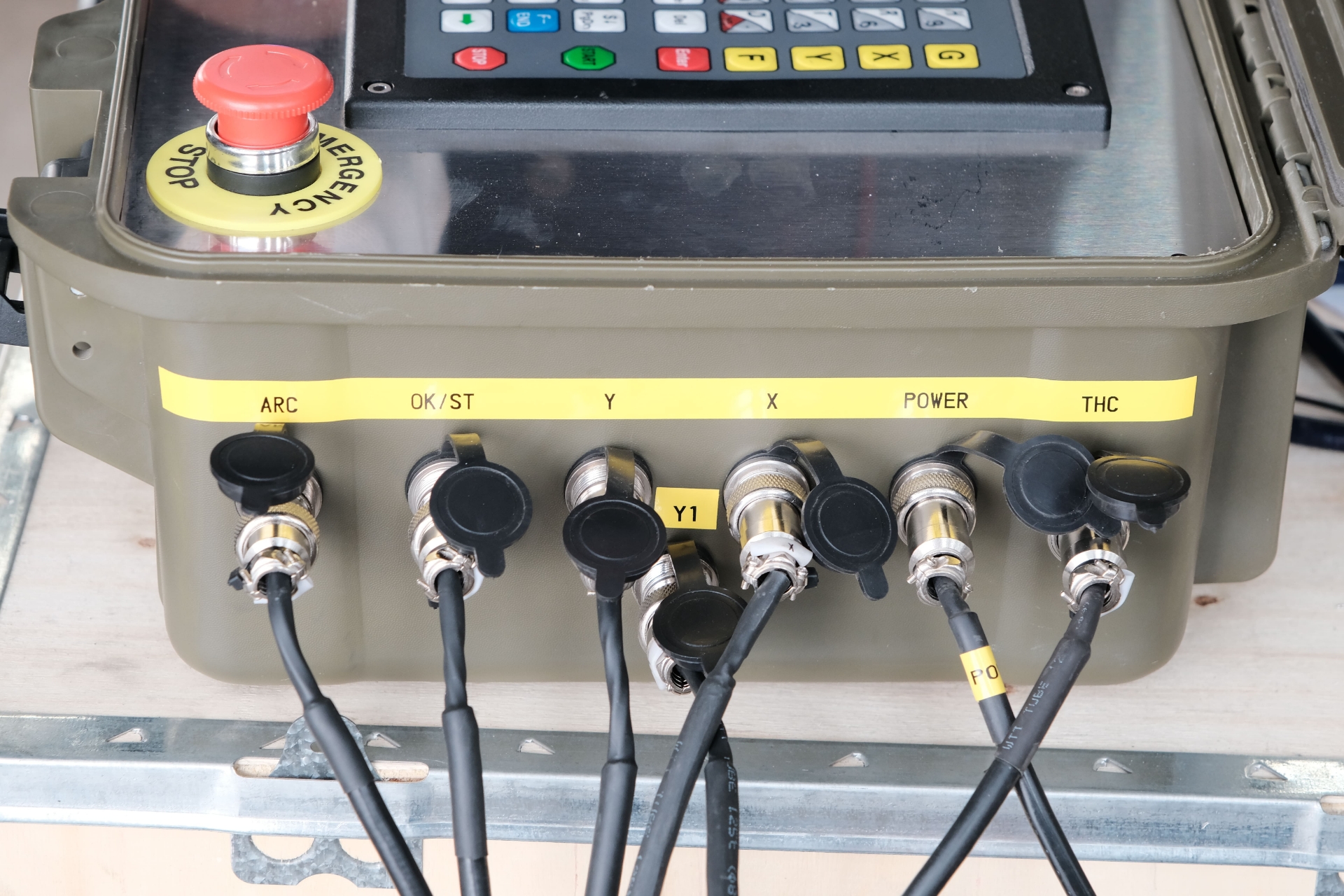

  •  Integrated controller with THC function

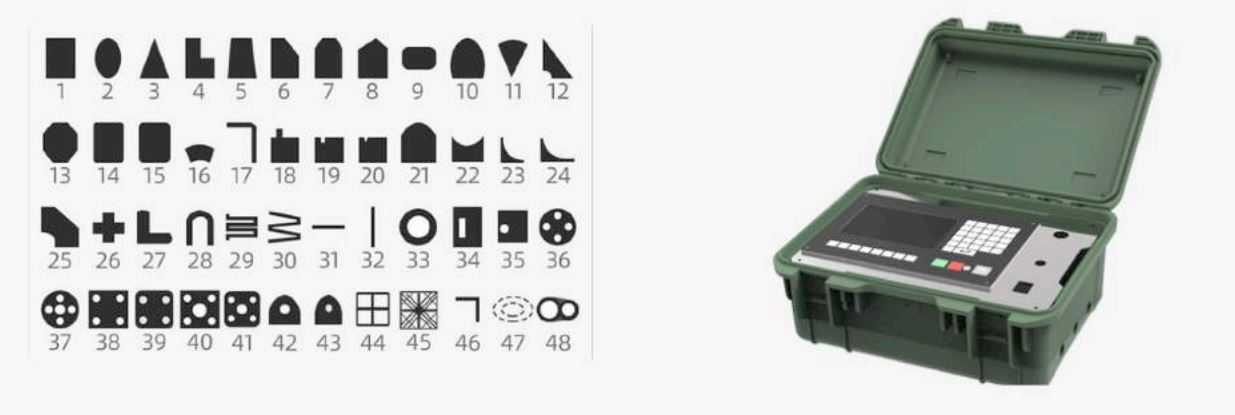

  •  Installed with graphics library - cut 45 pre-installed shapes
  •  Customised graphics can be imported with USB
  •  Designed for small metal cutting - metal artists and automotive parts
  •  Includes: FastCAM software, Torch Height Controller
  •  Weight: 200kg
  •  Warranty: 12 months
Overview

Specifications

Model / Spark Pro
Effective Area / 1200x1200mm

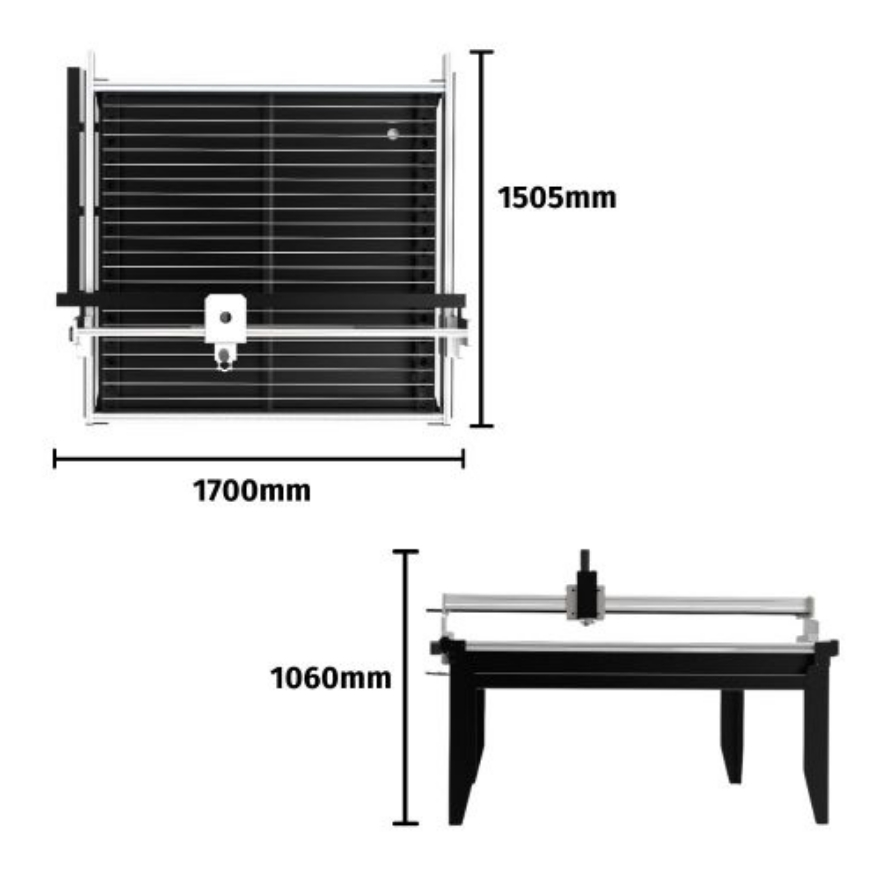

Machine Size / 1700x1505x1060mm
Input Voltage / 220V Single Phase / 110V Single Phase
Power Frequency / 480W
Cutting Mode / Plasma Cutting with Automatic Height Control

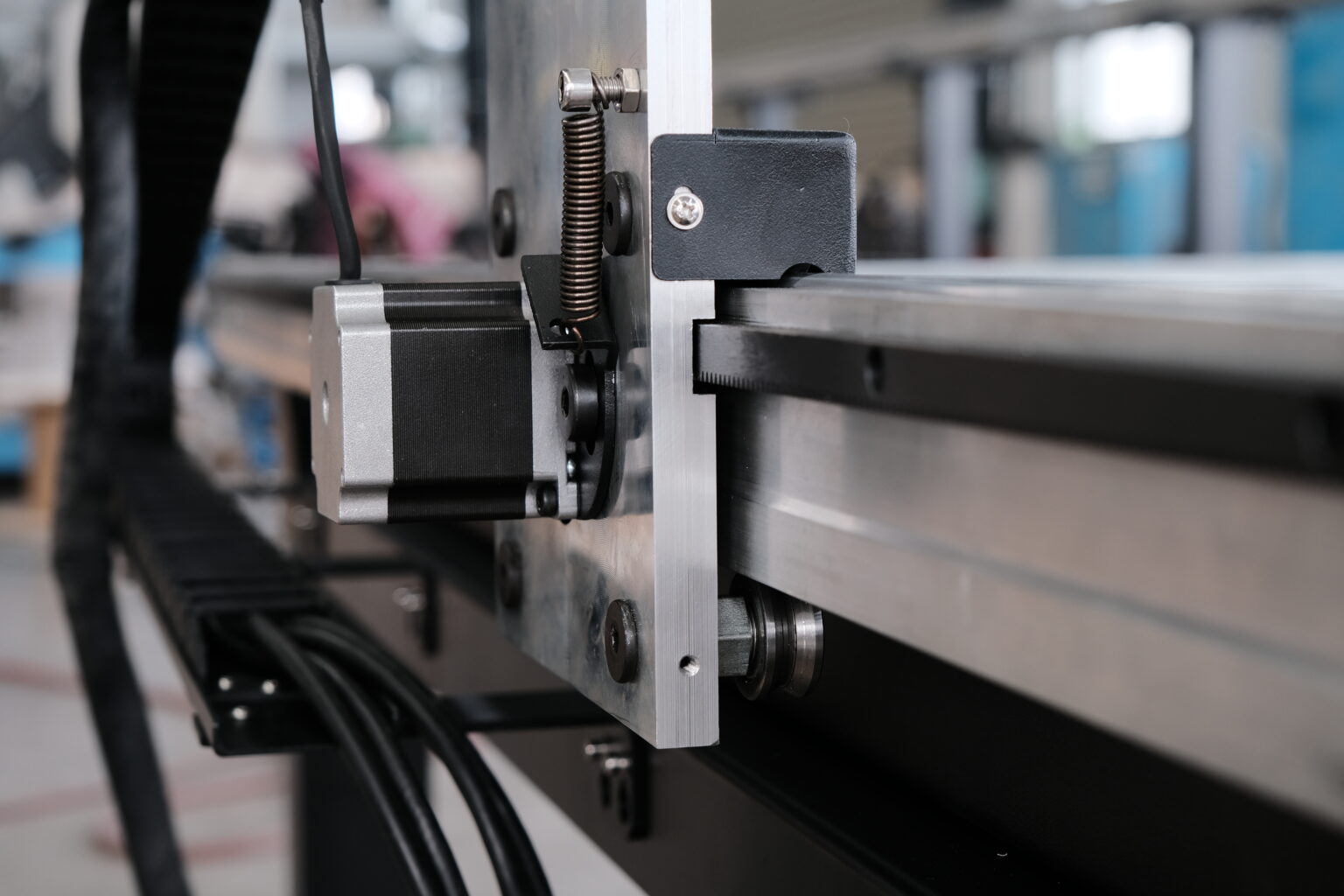

Driver Motor / 3x Step Motor
Running Speed / 12000mm/min
Tolerance / <±0.3mm
Shape Library / Yes
Temperature / 0 to 40℃
