Advance Mig 500 500A Synergic Inverter

Overview

Product Overview

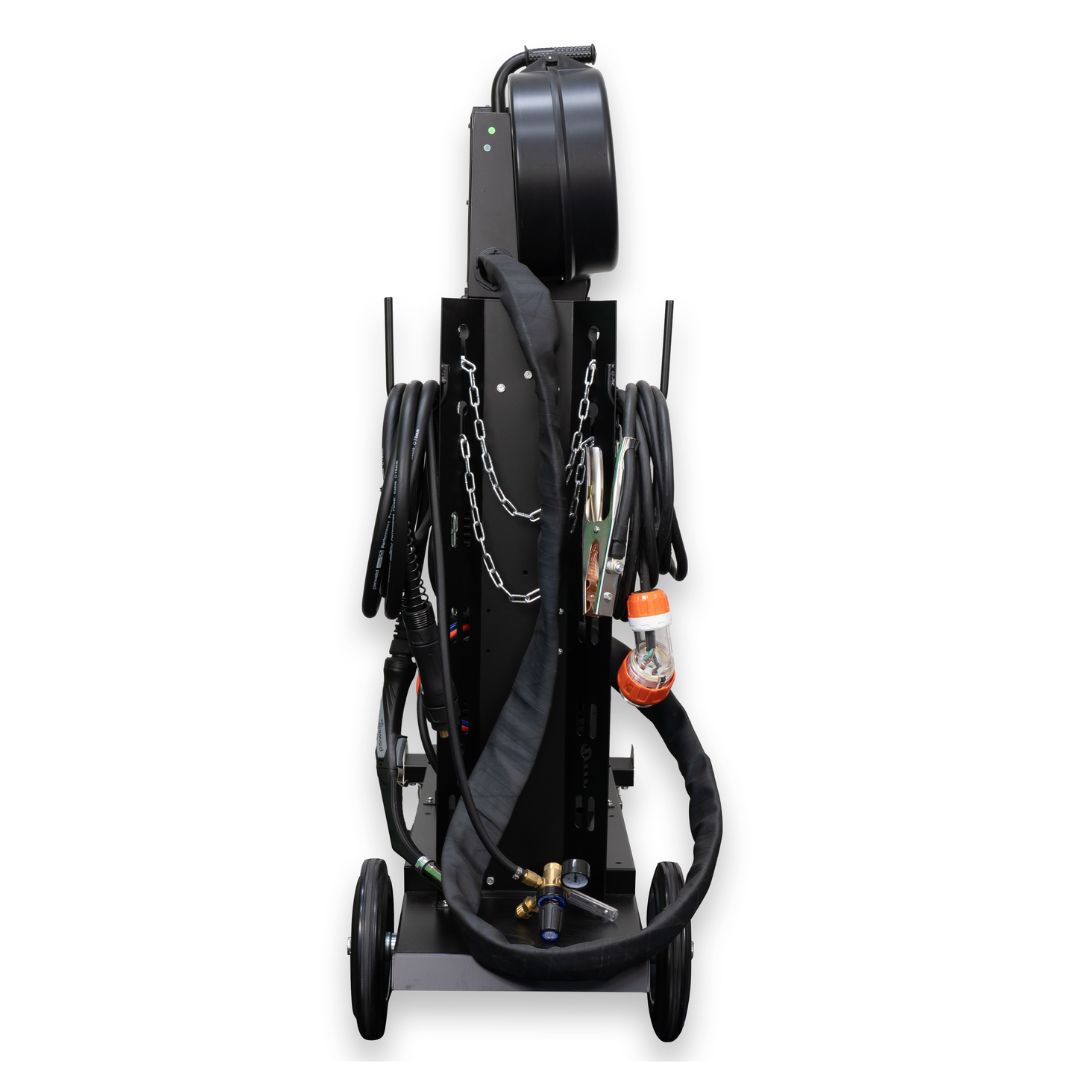

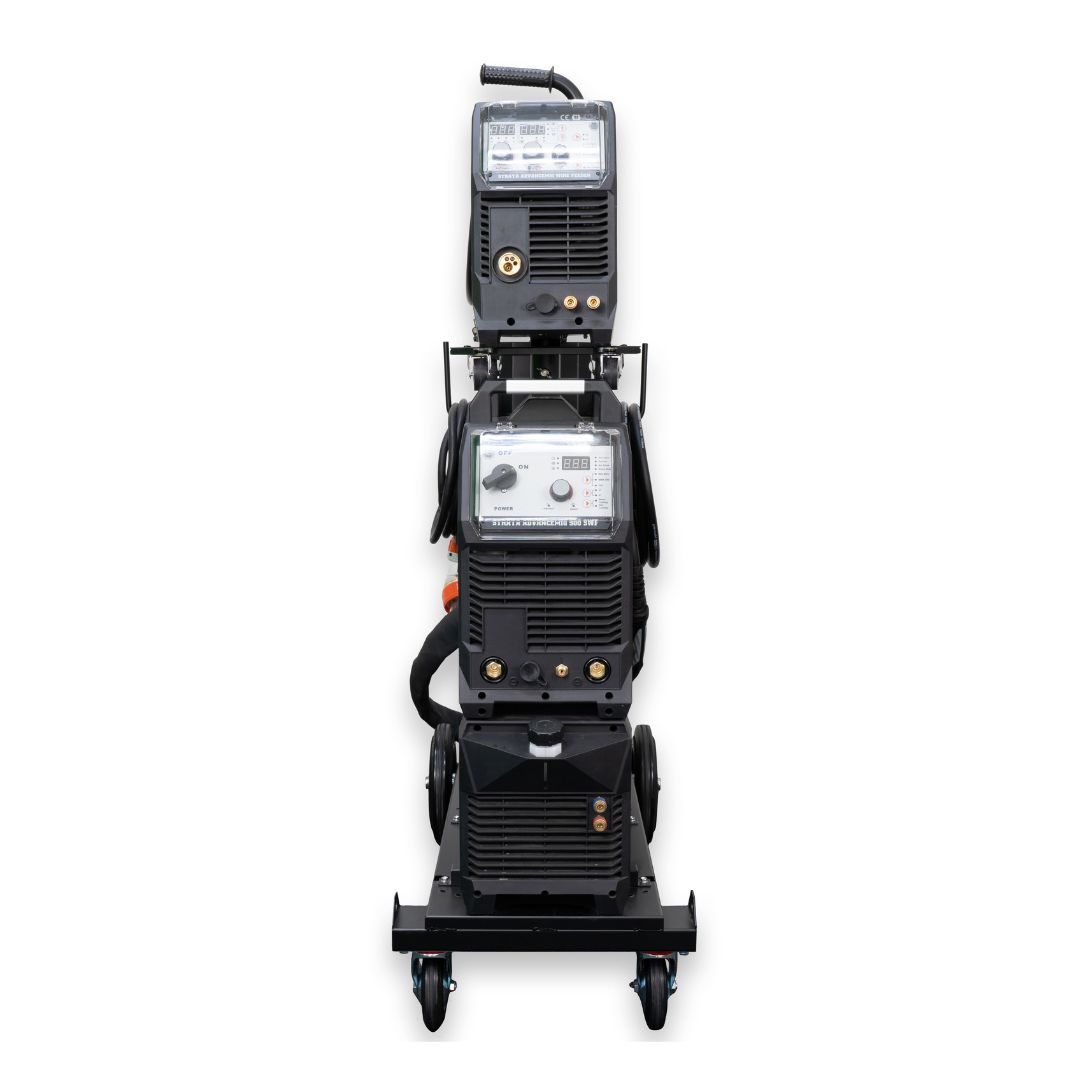

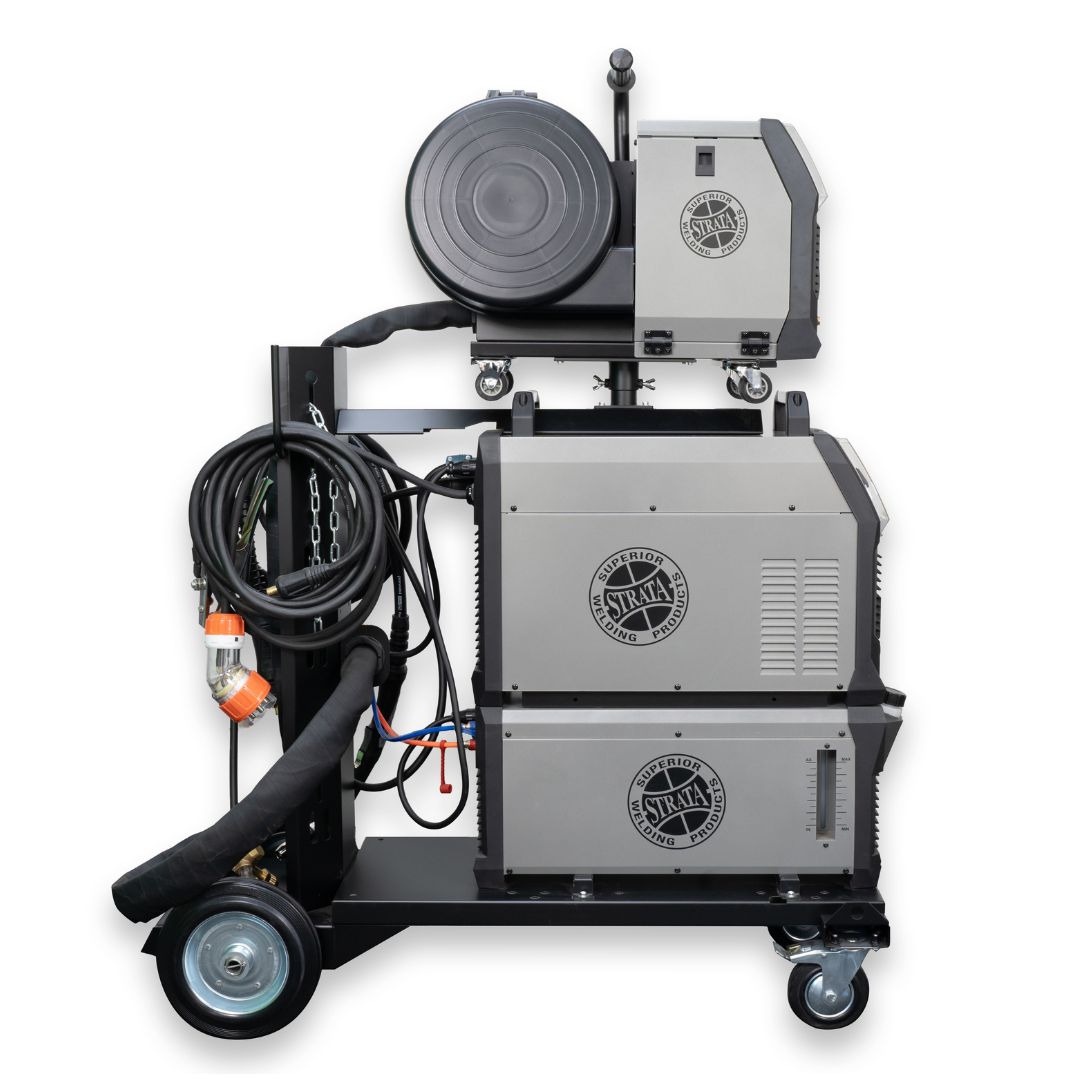

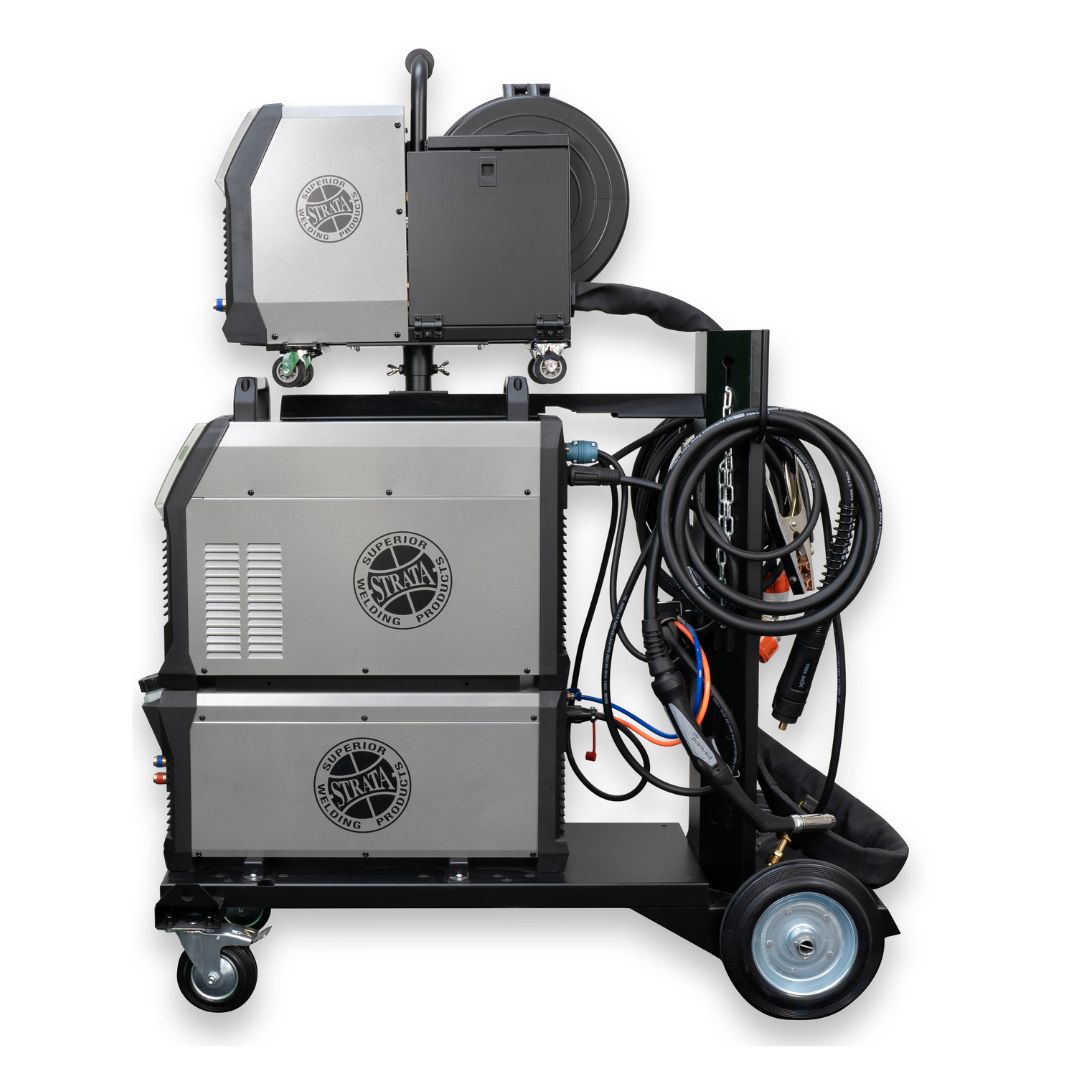

Strata AdvanceMig500 Synergic Inverter Welder Water Cooled Package

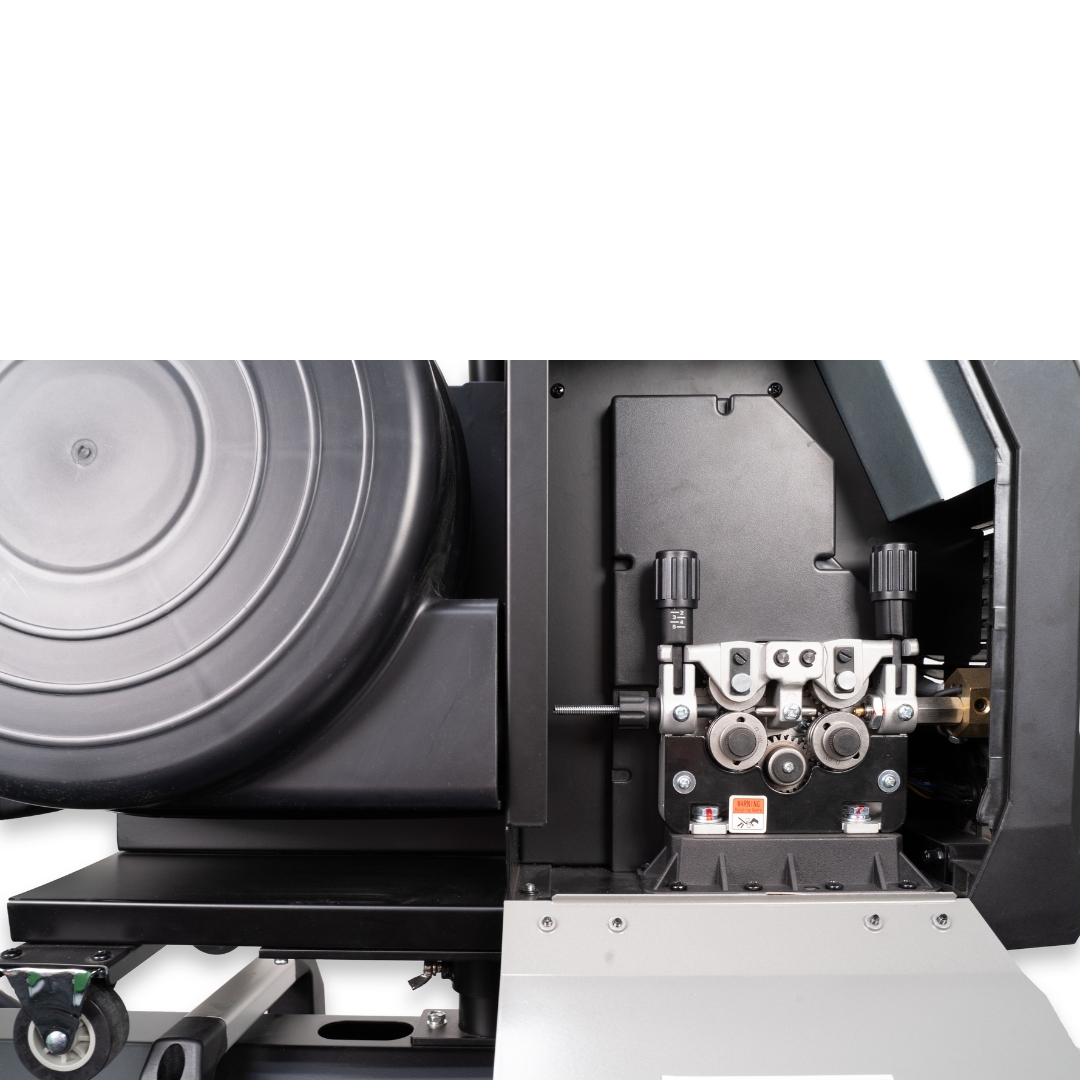

State of the art synergic technology with full operational controls on the remote wire feeder make these models a breeze to operate. Rich in features including a 4 roll wire feeder and integrated protection systems mean these 3 phase machines are top of the class in performance, reliability and user satisfaction. Designed for rugged heavy work day in and day out

Key Features:

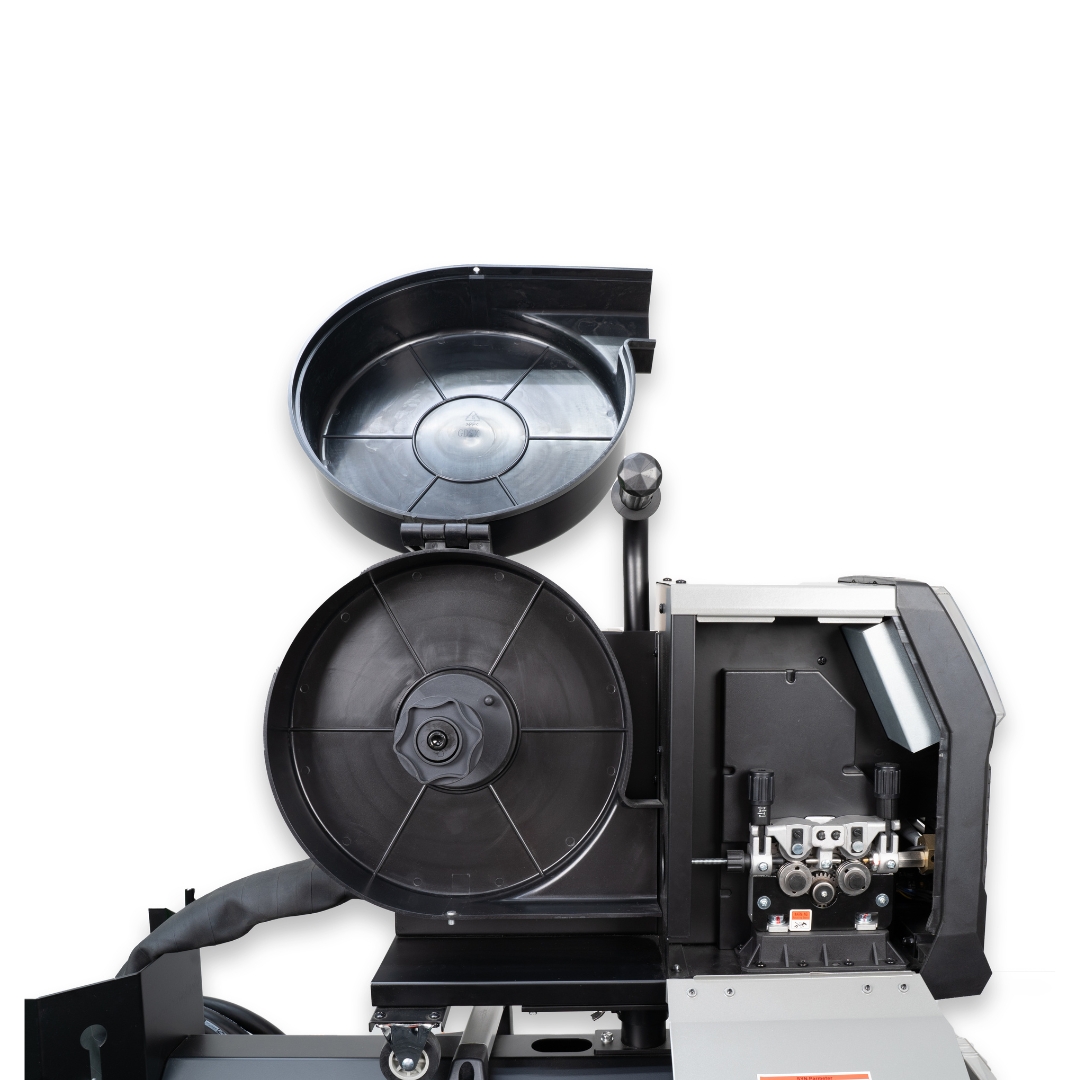

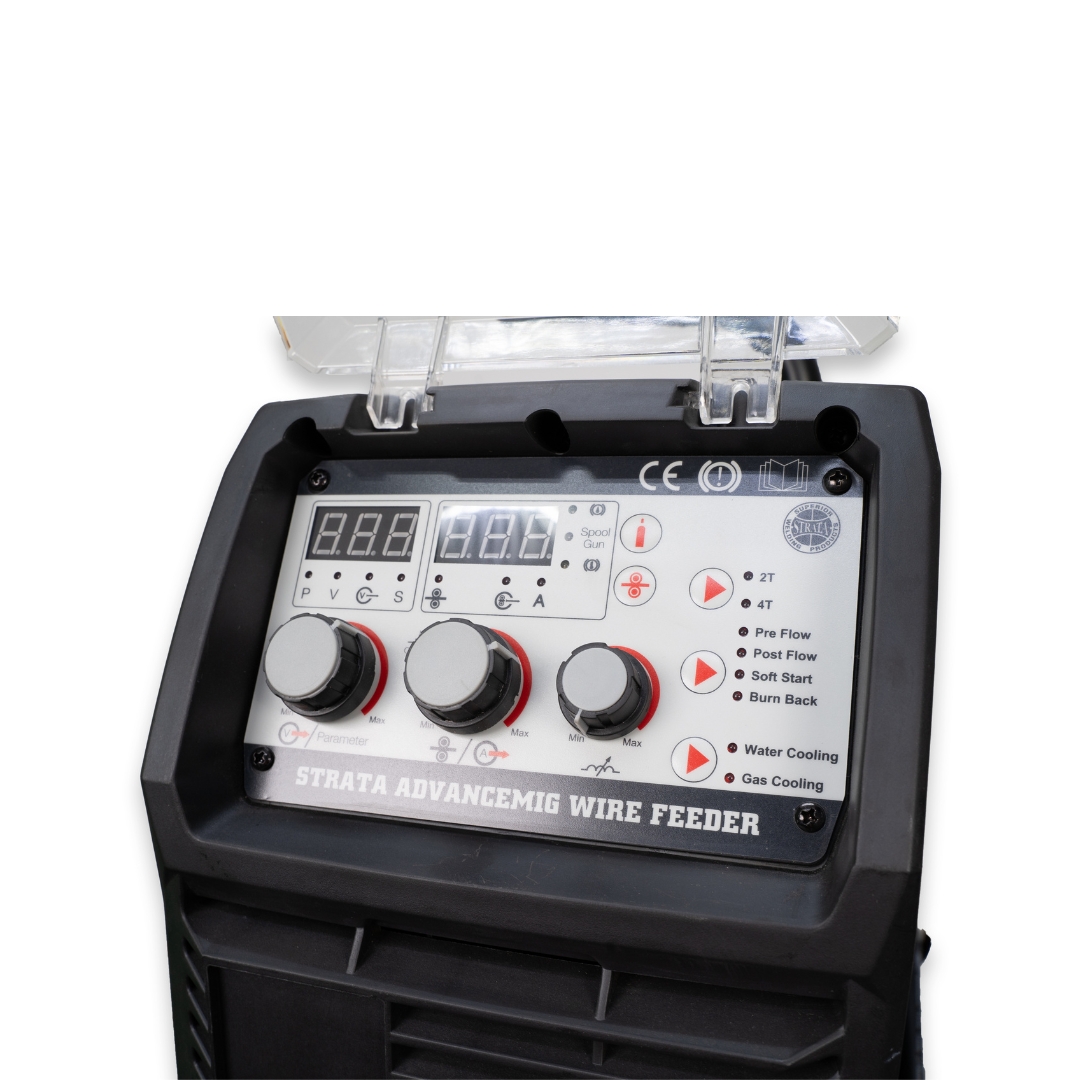

Intelligent digital wire feeder with all MIG controls and display located on wire feeder control panel
Digital microprocessor control system for superior & dynamic arc characteristics
Modular power source can be used individually for MMA, arc air gouging and lift TIG welding
Synergic mig operation for optimum welding results every time
Lift TIG operation with down slope and remote current control
MIG waveform (inductance) control for great arc control and smoother welding results
Damage resistant Industrial casing with front panel protection
Wire inching and gas purge control
Safe and simple set up and easy to use
Adjustable pre flow, post flow, burn back and soft start settings
2T/4T trigger operation with crater control settings
Adjustable arc force, hot start & automatic anti stick control

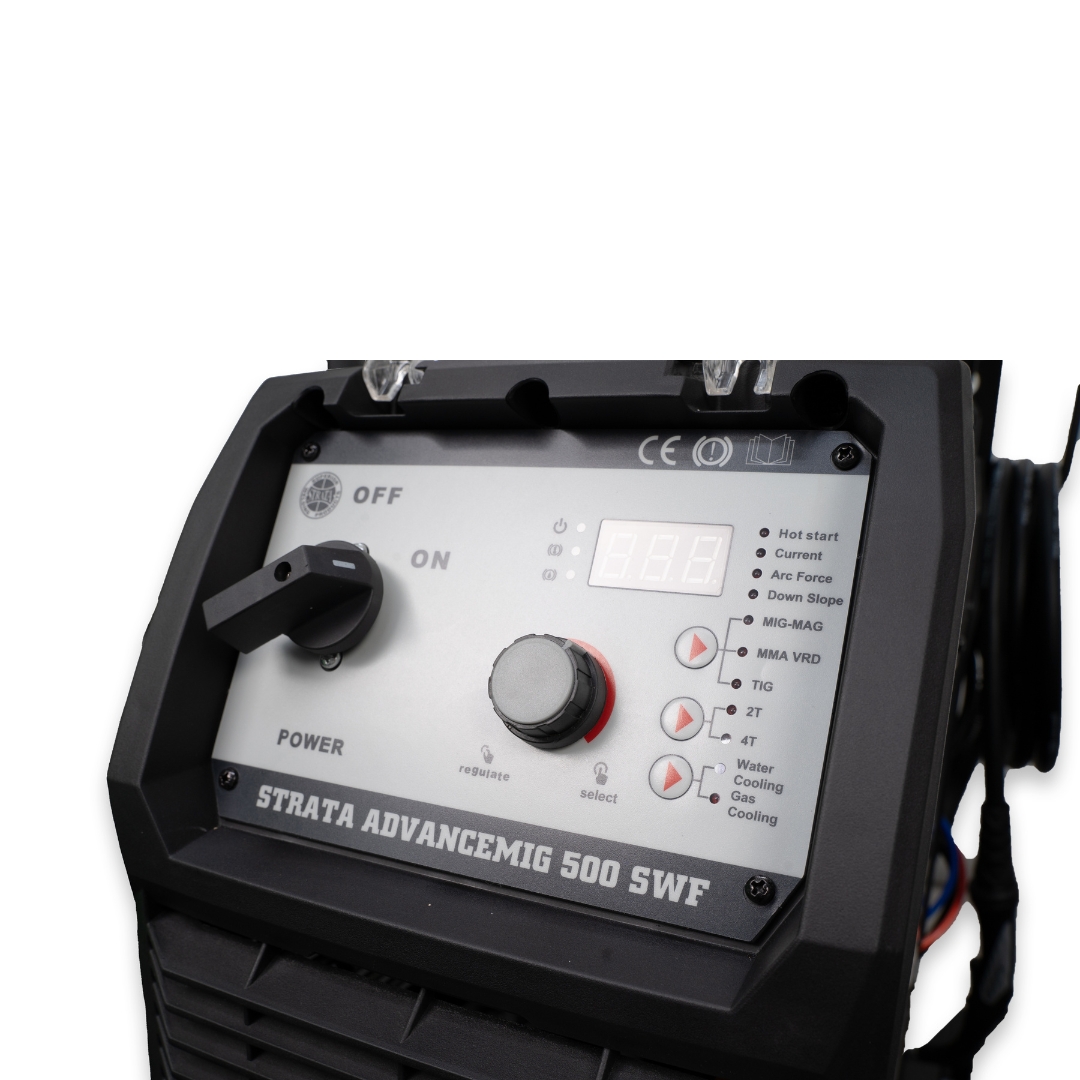

Dual digital display meters for accurate pre setting and feedback of welding parameters & output
Power source wind tunnel cooling construction
Protection against environmental contamination

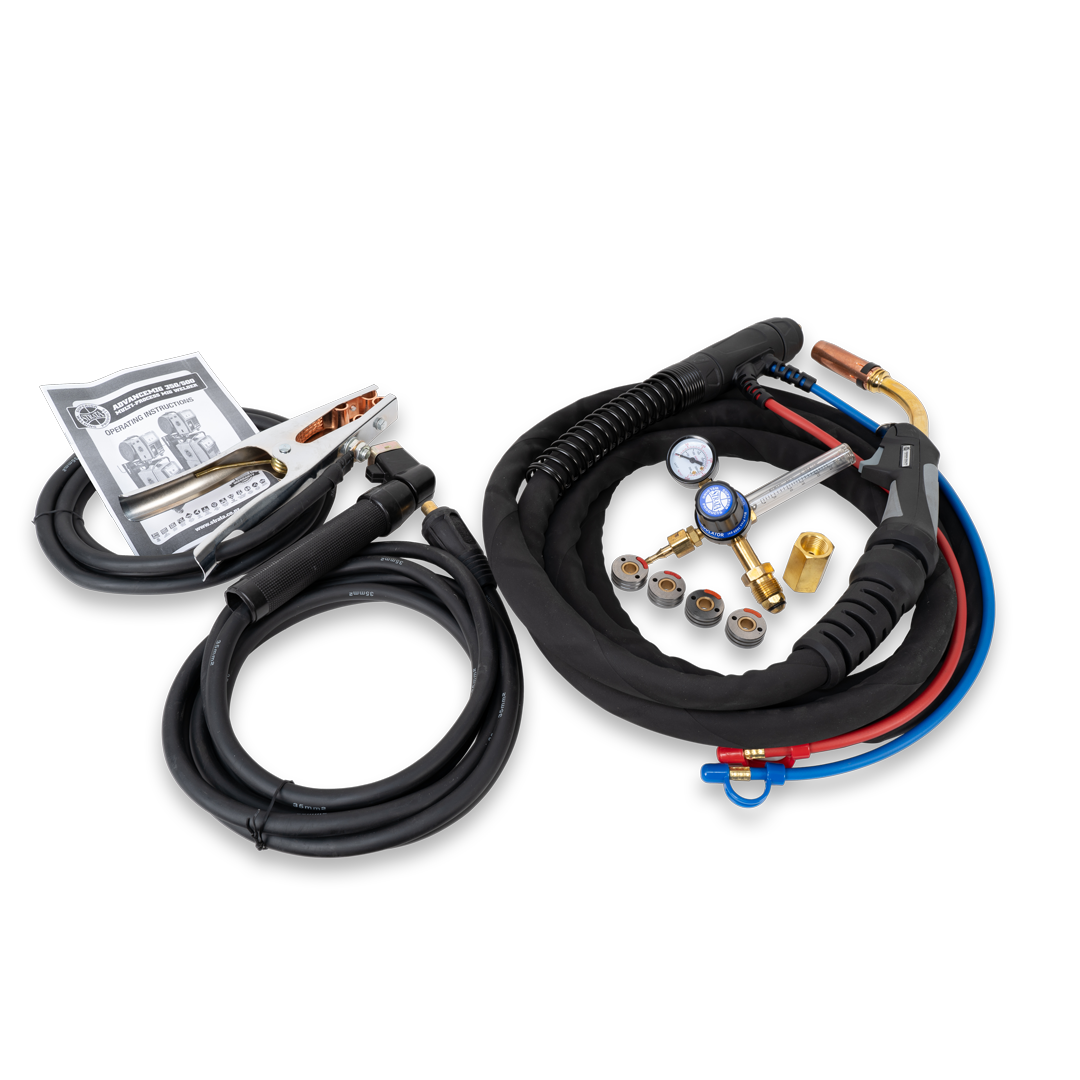

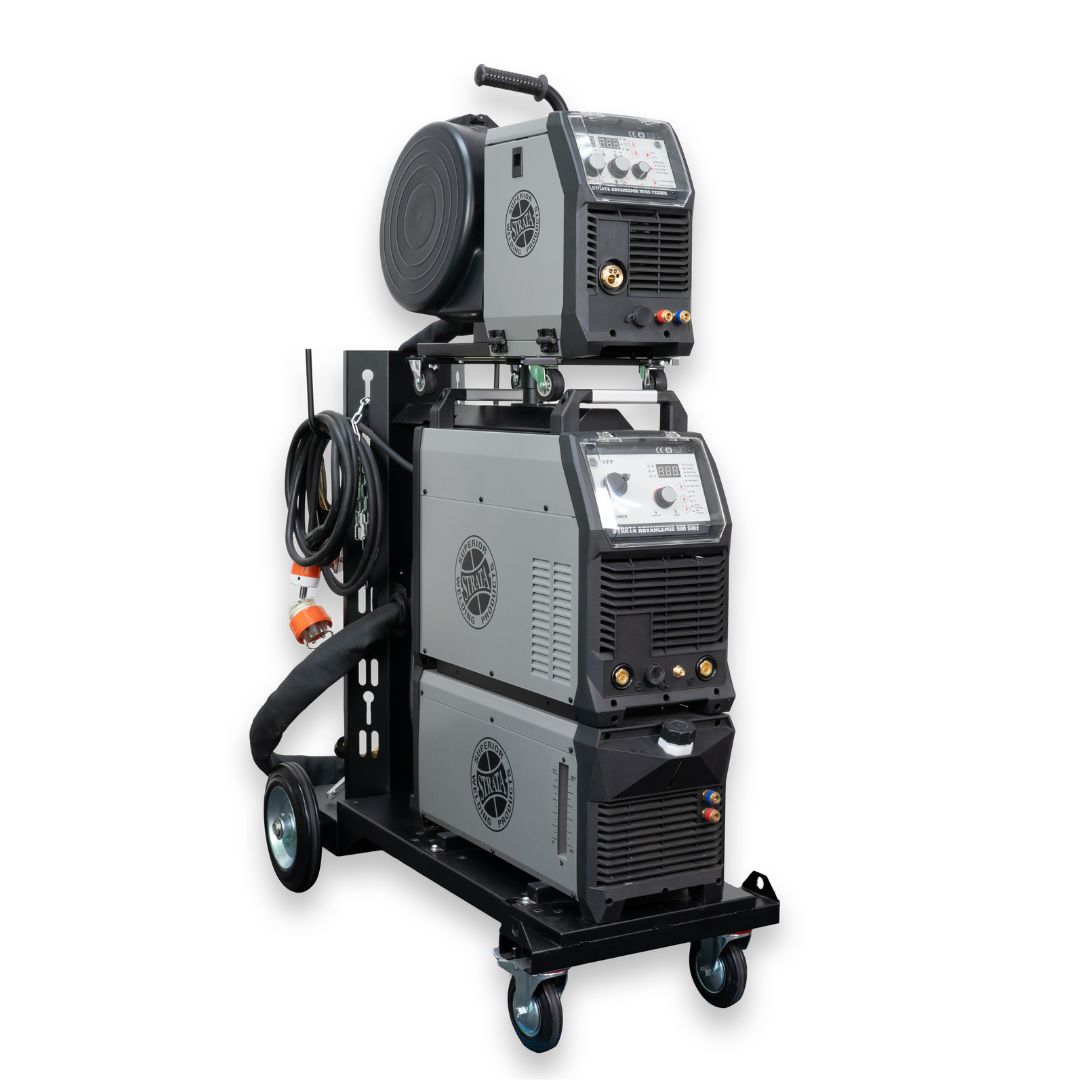

Package includes: Strata AdvanceMig500 500A Synergic Inverter MIG/MMA/TIG Welder, Wire Feeder, Water Cooler, Trolley, 10M Interconnect Cable, MB501 4M Mig Torch, Arc Lead Set & Gas Regulator.

Resources

Downloads

Overview

Specifications

Power Source Dimensions / 605x240x445mm
Weight / 30kg
Wire Feeder Dimensions / 600x290x480mm
Wire Feeder Weight / 16kg
Trolley Dimensions / 1050x440x1100mm
Trolley Weight / 32kg
Storage Compartment Dimensions / 620x240x290mm
Storage Compartment Weight / 11kg
Water Cooler Dimensions / 620x240x290mm
Water Cooler Weight / 18kg
Complete Package Dimensions / 1050x44x1450mm
Complete Package Weight / 110kg
Input Power Supply / 400V AC 3 Phase 32A 50/60Hz
Maximum Input Current / 26A
Generator Capacity / 25KVA
MIG Output Voltage / 10V - 50V
MIG Output Current / 40A - 500A
MIG Duty Cycle / 500A@60%, 400A@100%
Wire Feeding Speed / 2.4 - 18m/min
MMA Current Output / 40A - 500A
MMA O/C Voltage / 67V
TIG Duty Cycle / 500A@60% 400A@100%
TIG Current Output / 40A-500A
Insulation Class / IP23
Standards / EN60974-1:2012
MMA Rod Size / 1.6-4.0mm
Warranty (Months) / Commercial 12 month extends to 36 months with product registration
Power Efficiency / 0.85
