Advance Mig 250 250A Synergic Inverter
Advance Mig 250 250A Synergic Inverter
Be the first to review this product
Free shipping on orders over $50
Strata
/
SKU:
17383

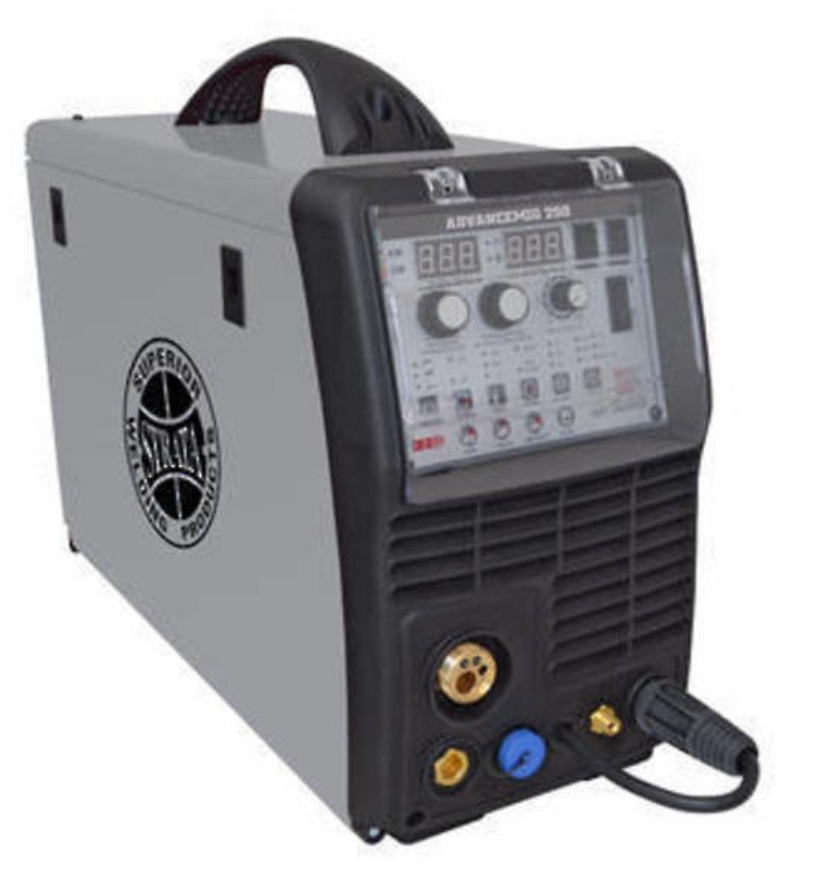

Strata AdvanceMig250 250A Synergic Inverter MIG/MMA/TIG Welder PFC MV
Quick Enquiry
Add to Wishlist
Overview
Specifications
FAQs
Reviews
Related Products
Ask a Question
Overview
Product Overview
Active PFC technology for increased duty cycle and energy efficiency
Multi voltage input, can use with long extension lead
Synergic MIG operation for optimum welding results
Remote control spool gun connection for effective results with soft wires such as aluminium. Suitable for MIG brazing with bronze wires
Lift TIG operation with down slope, post gas and remote current control ability
Reversable polarity MIG welding operation suitable for gas & gasless MIG welding
Mig waveform (inductance) control for great arc control and smooth welding results
Damage resistant industrial casing + front panel protection
Wire inching and gas purge control
Quick, safe & simple to set up
Lightweight & compact design ideal for portable applications
Strong environmental protection againt moisture, salt spray and corrosion
High quality & over specified electronic components
Durable & reliable Intelligent protection system
Temperature, voltage and current sensors for increased reliability & safety
Parameter save & recall function.
Replaced by
Strata AdvanceMig255C
Resources
Downloads
Technical Data Sheet
Spare Parts List
Instruction Manual
Safety Data Sheet
Overview
Specifications
Dimensions /
618 x 240 x 445mm
Weight /
23kg
Input Power Supply /
230V AC 15A 50/60Hz
Input Power Supply Tolerance /
90-275V
Maximum Output Current /
25A-250A
Generator Capacity /
9.4KVA
Insulation Class /
IP23
Standards /
EN60974-1:2012
Warranty /
Commercial 12 month extend to 36 months
Power Efficiency /
0.8
Power Factor /
0.99
